De nummering van de foto’s, komt overeen met de nummers op de lijst. Lijst is hieronder te downloaden.

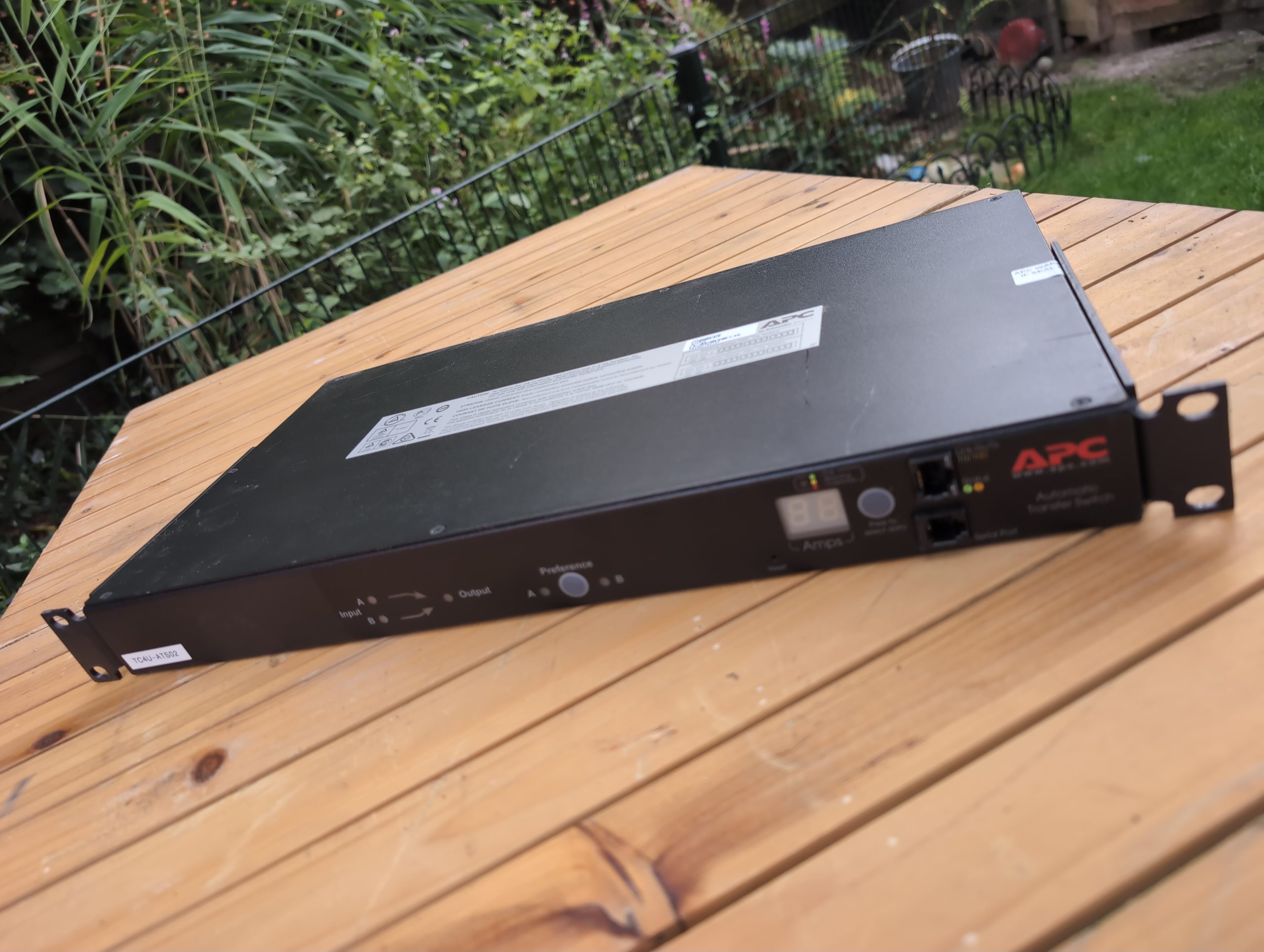

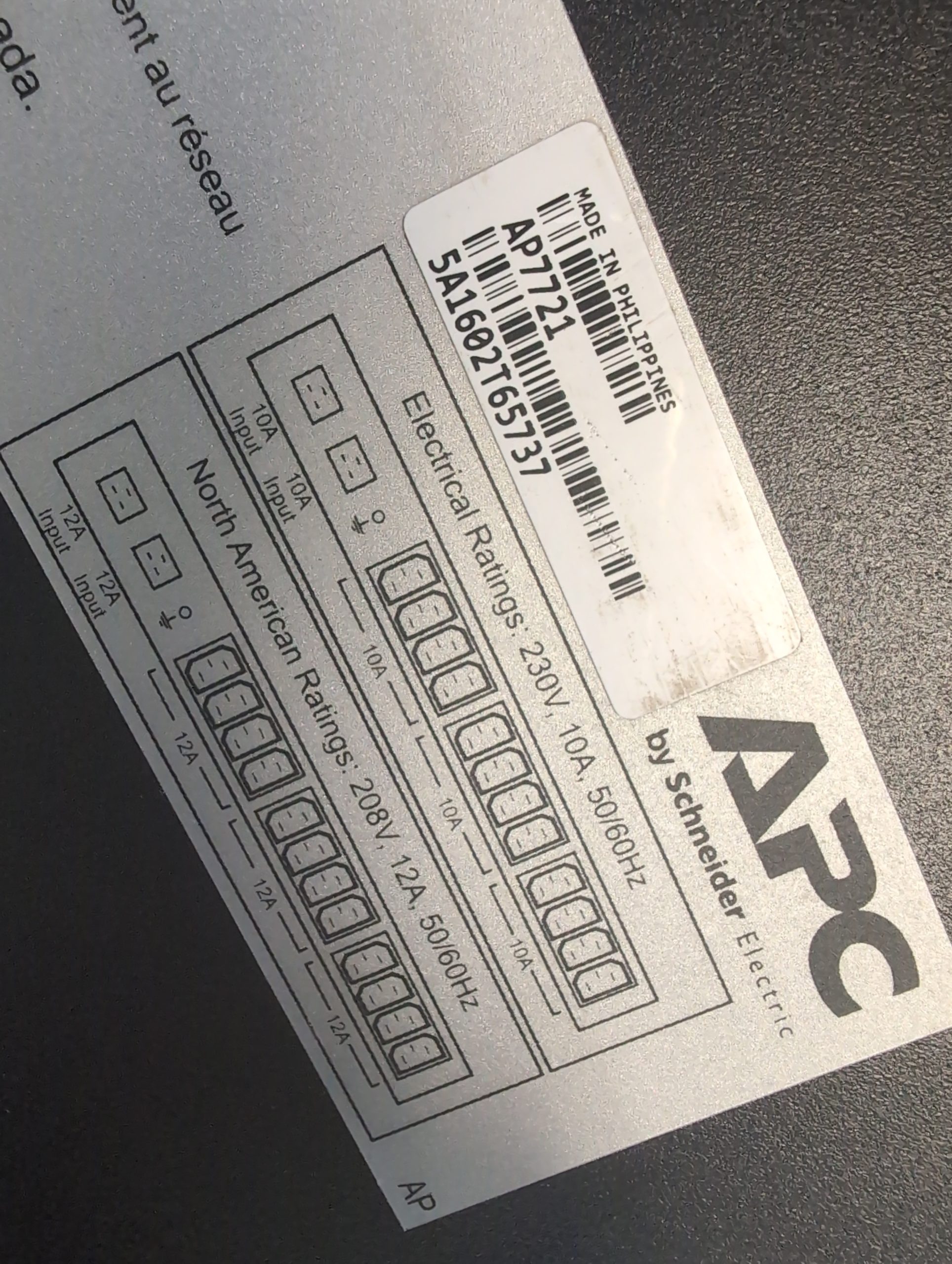

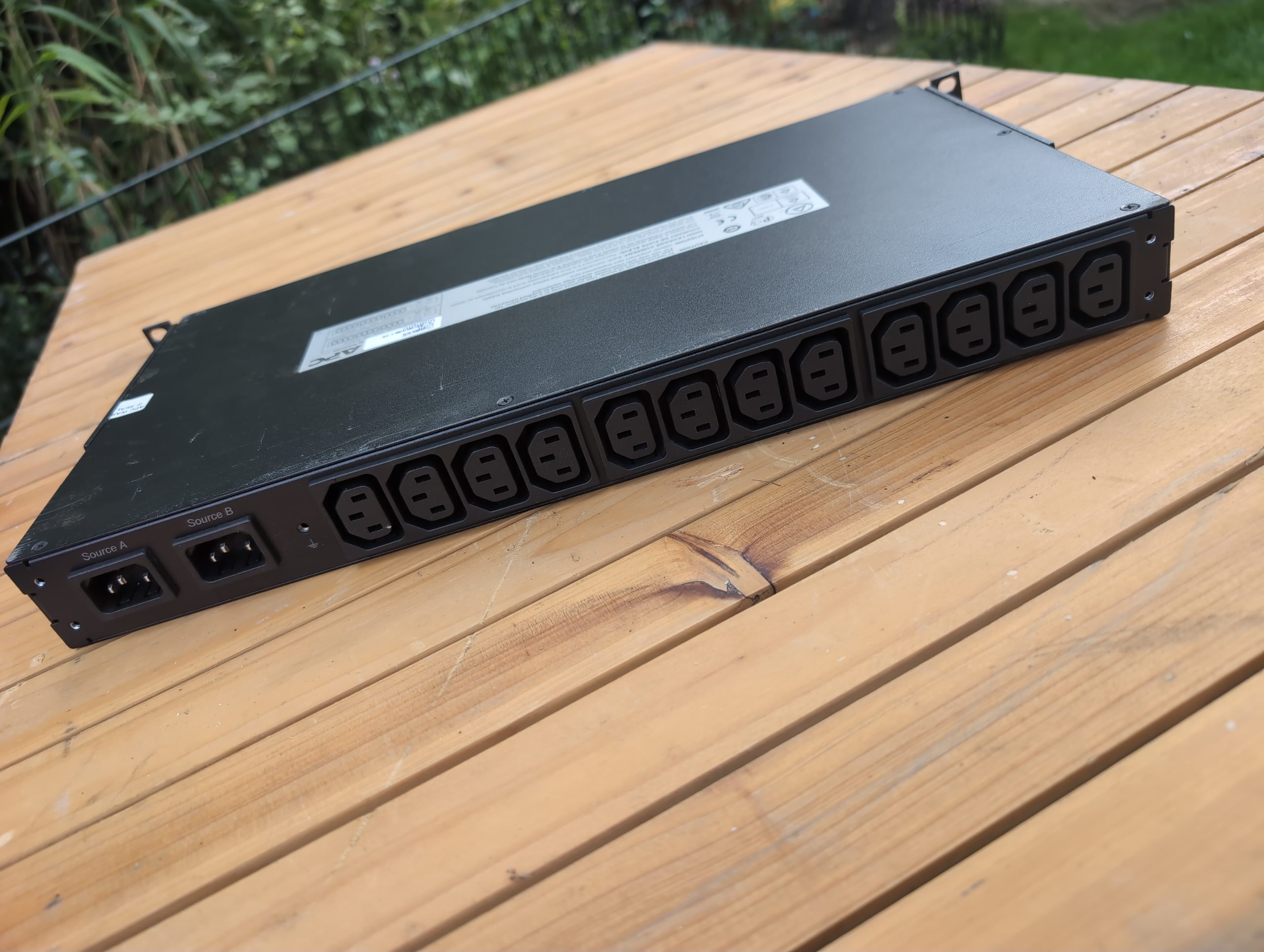

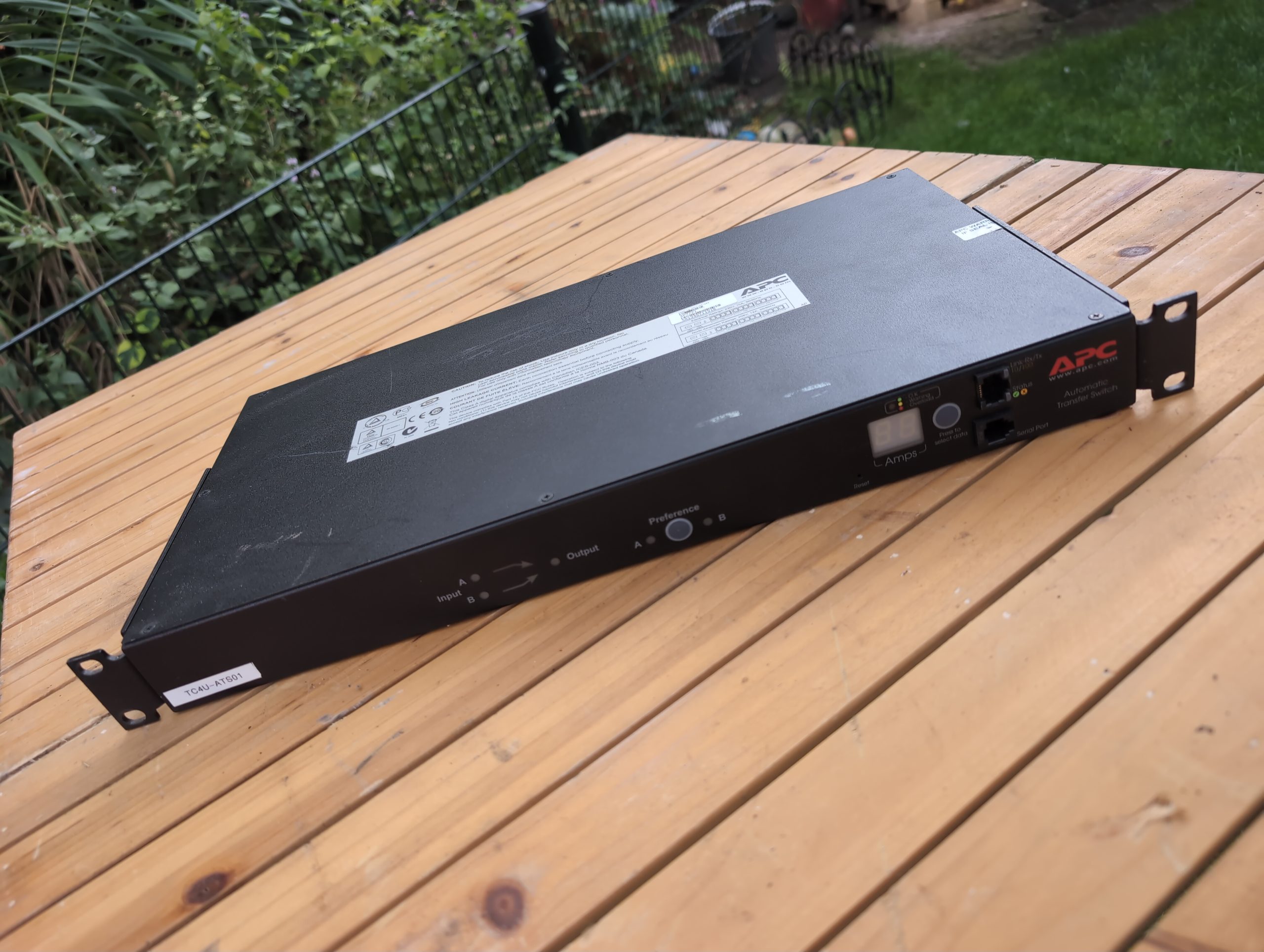

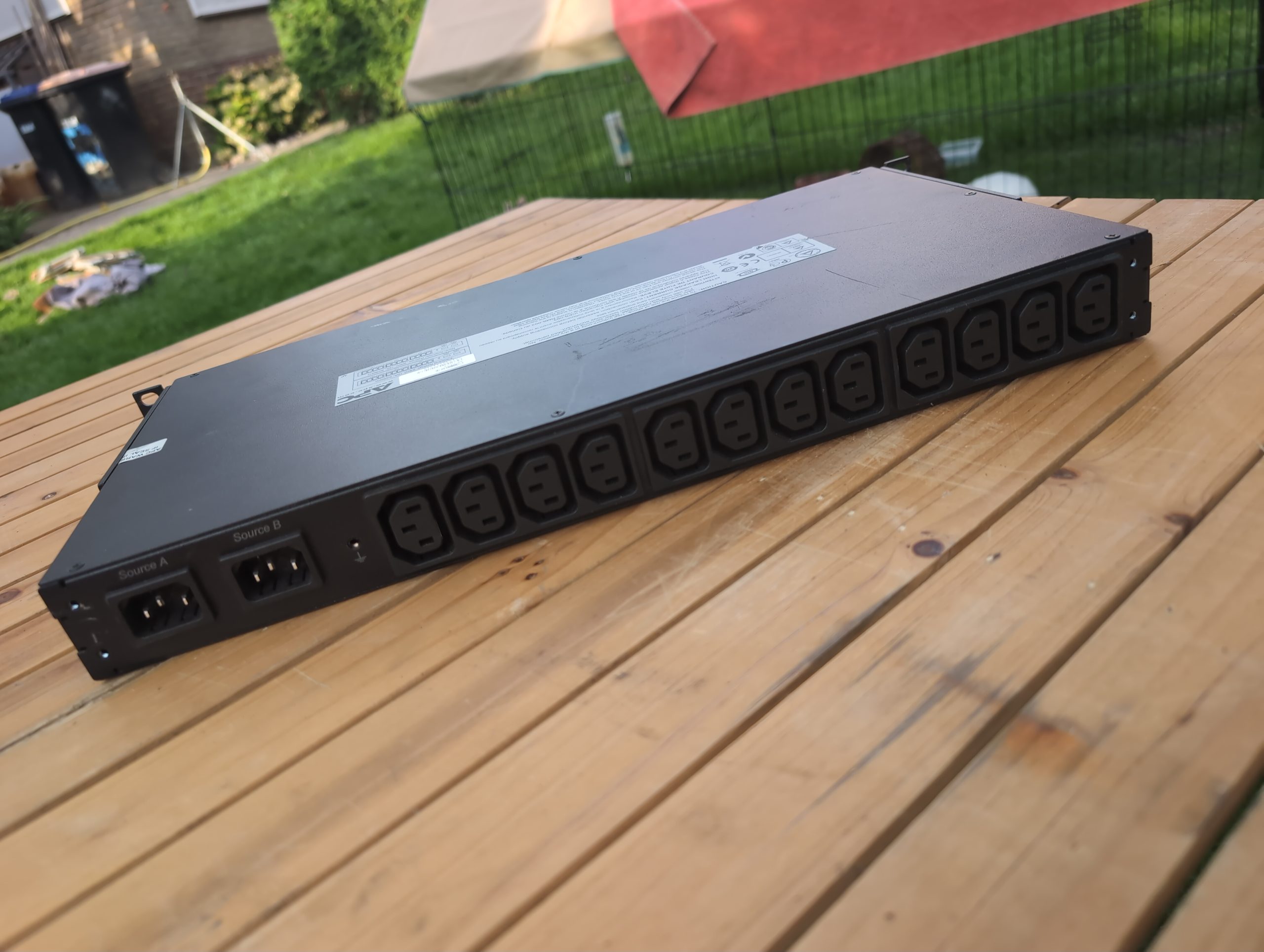

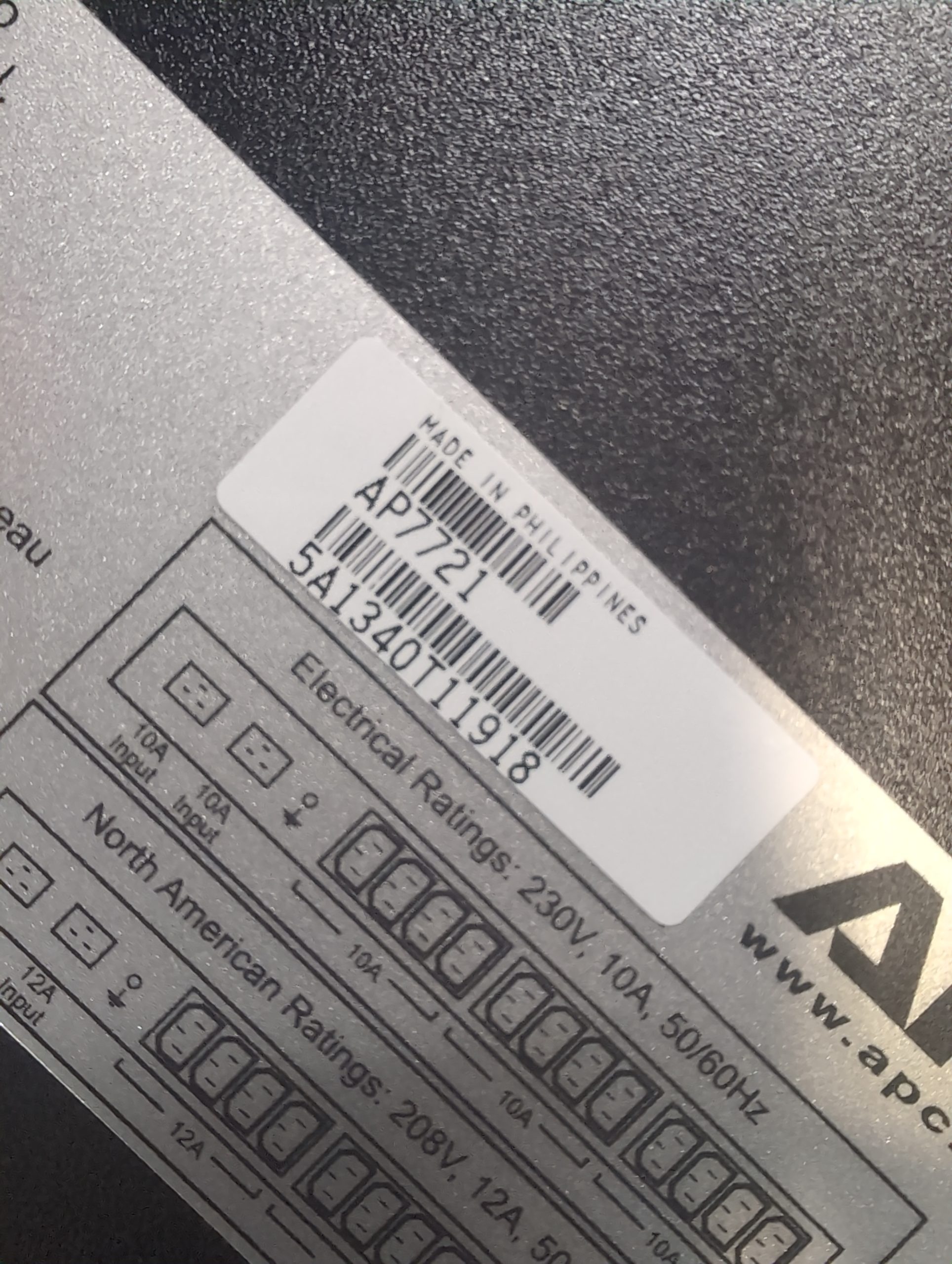

01 – APC ATS – Model: AP7721

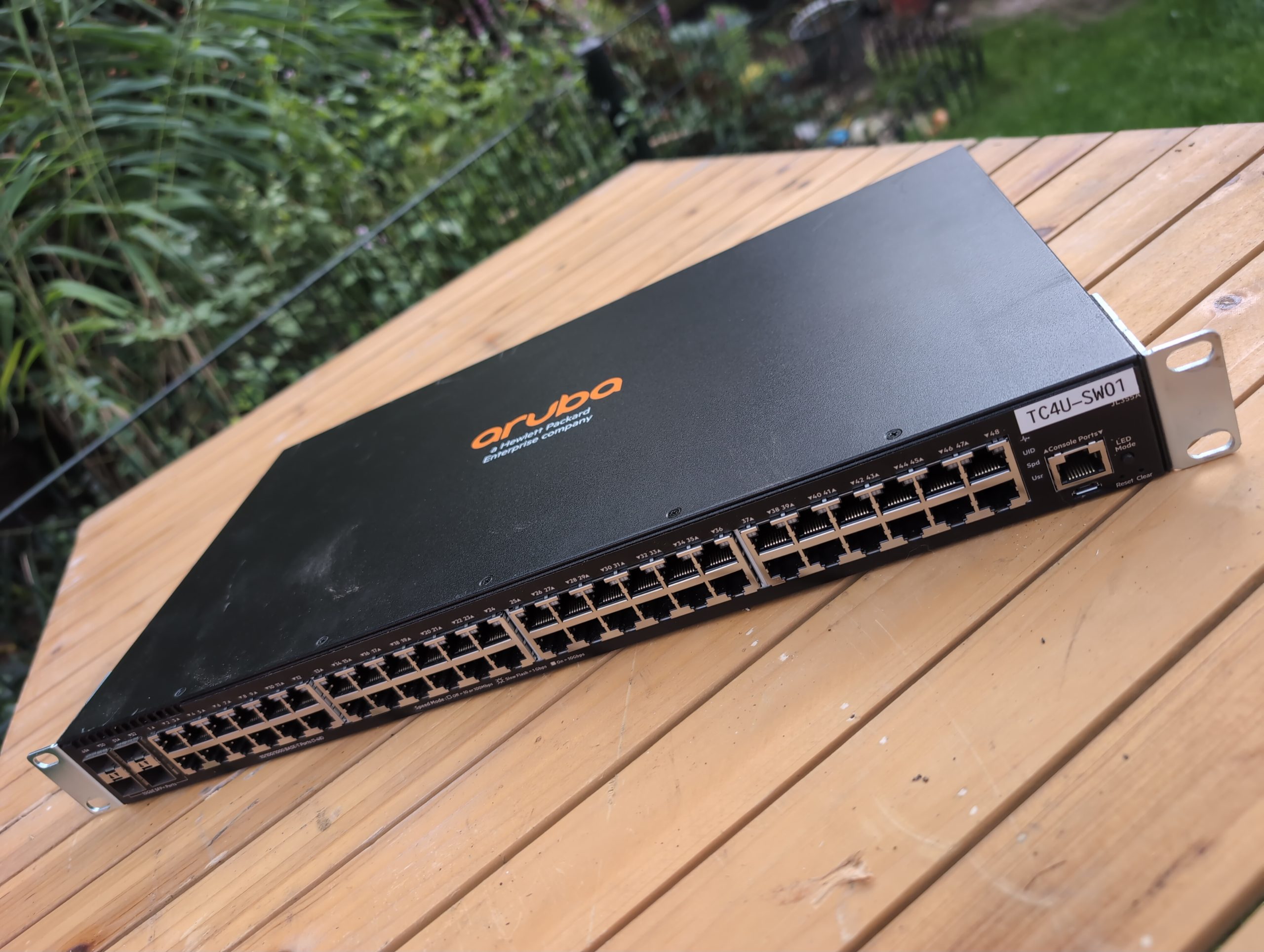

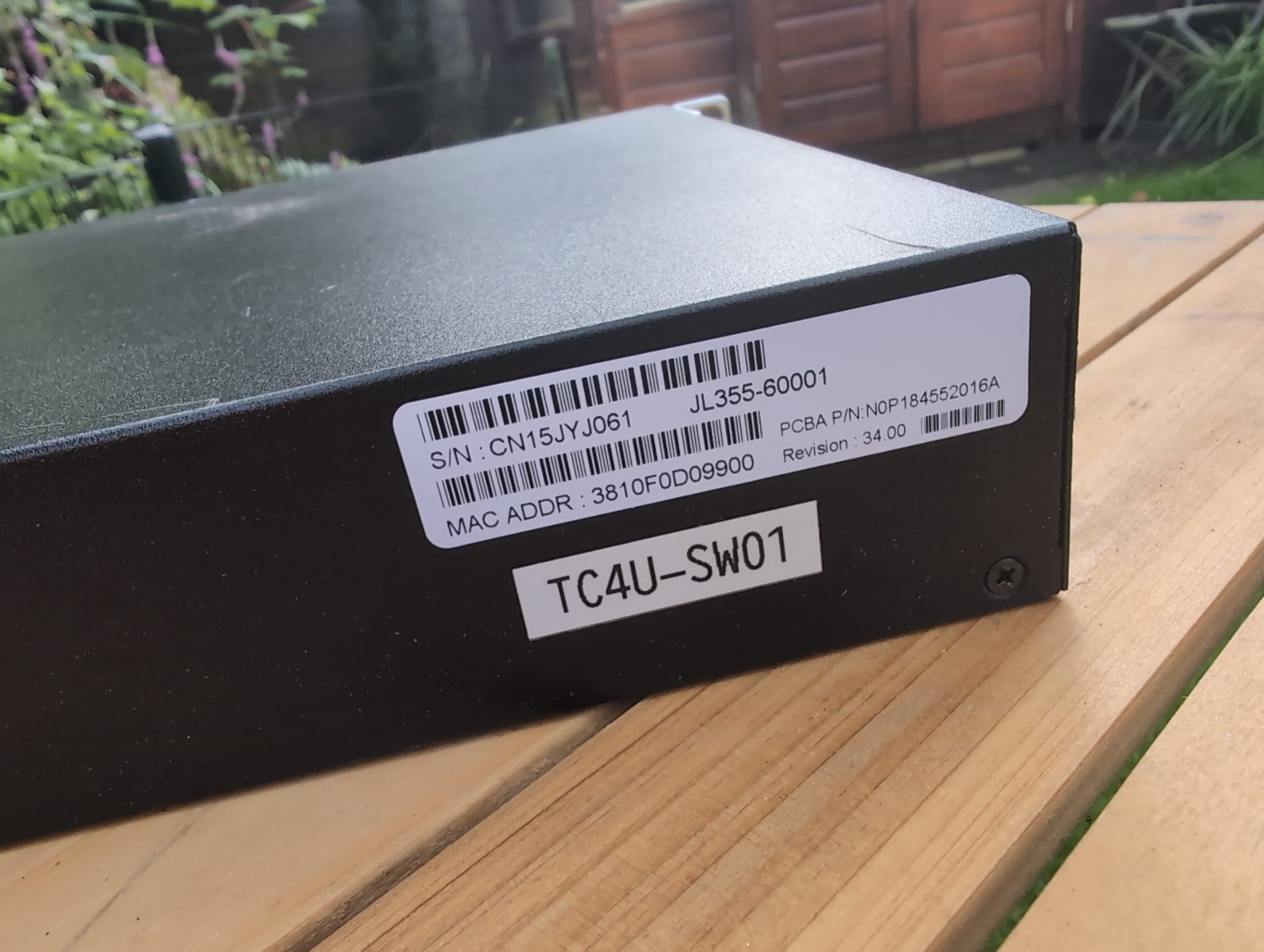

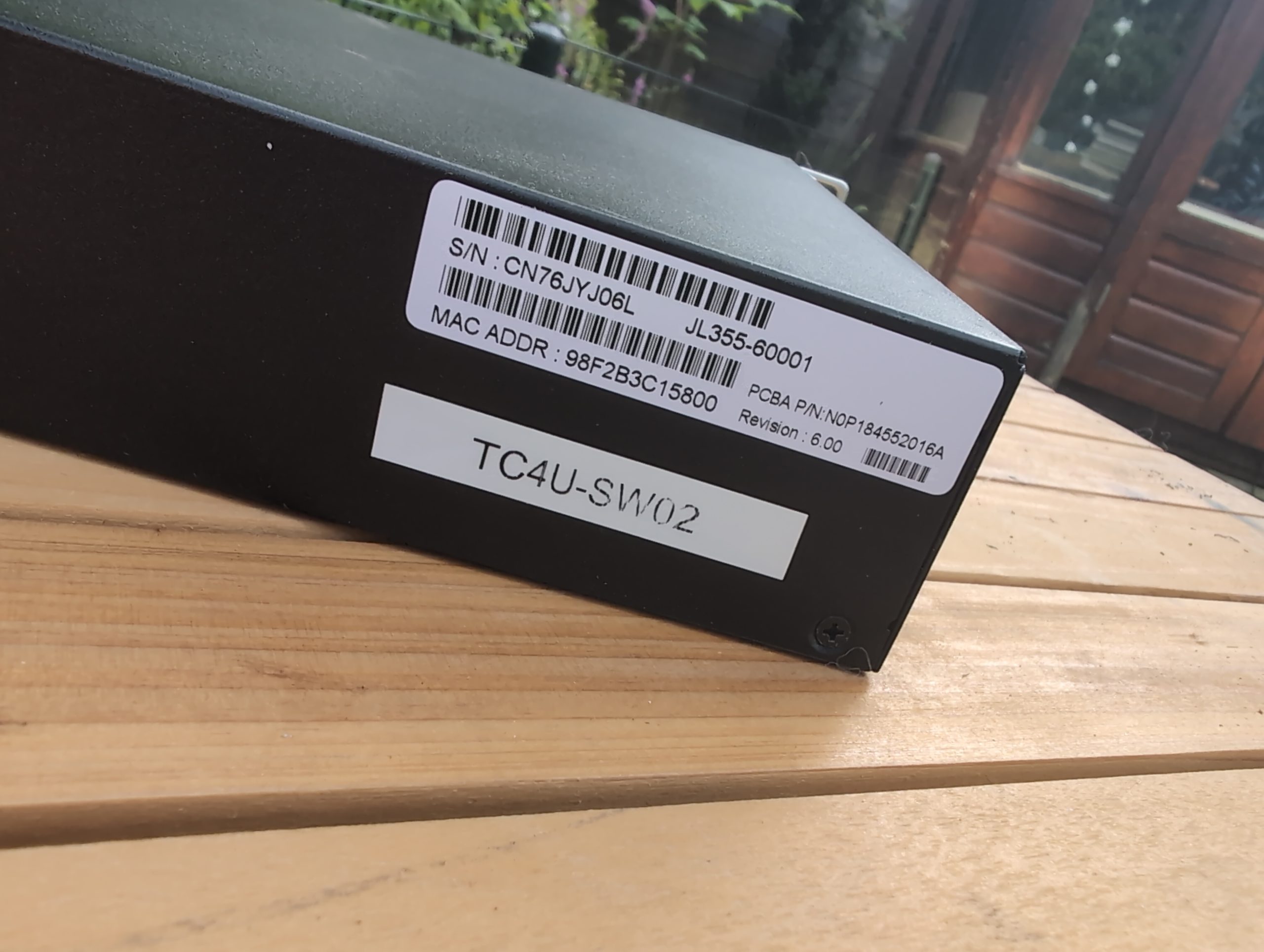

02 – Aruba Switch – Model: 2540 – JL355A
03 – APC ATS – Model: AP7721

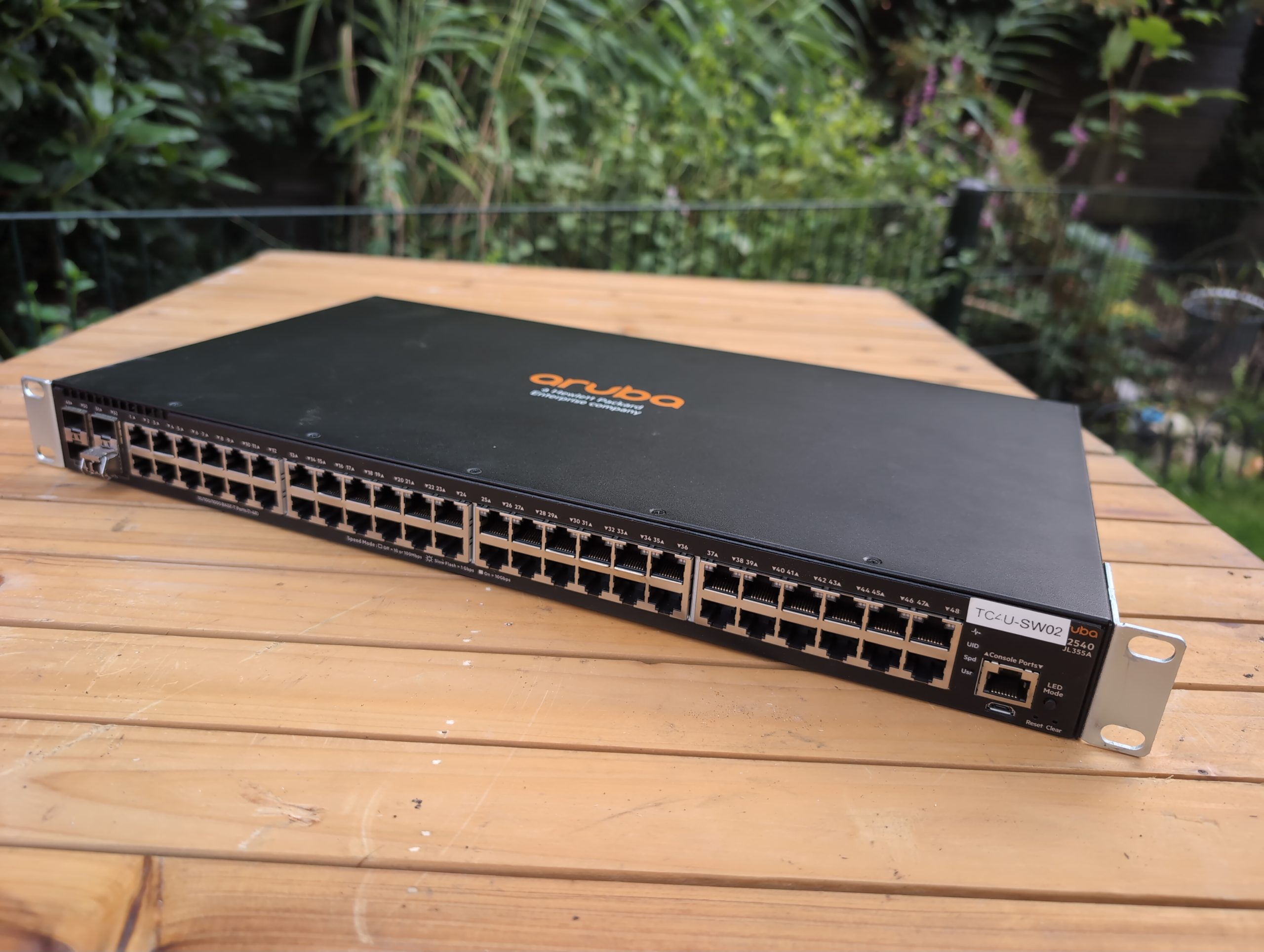

04 – Aruba Switch 2 – Model: 2540 – JL355A

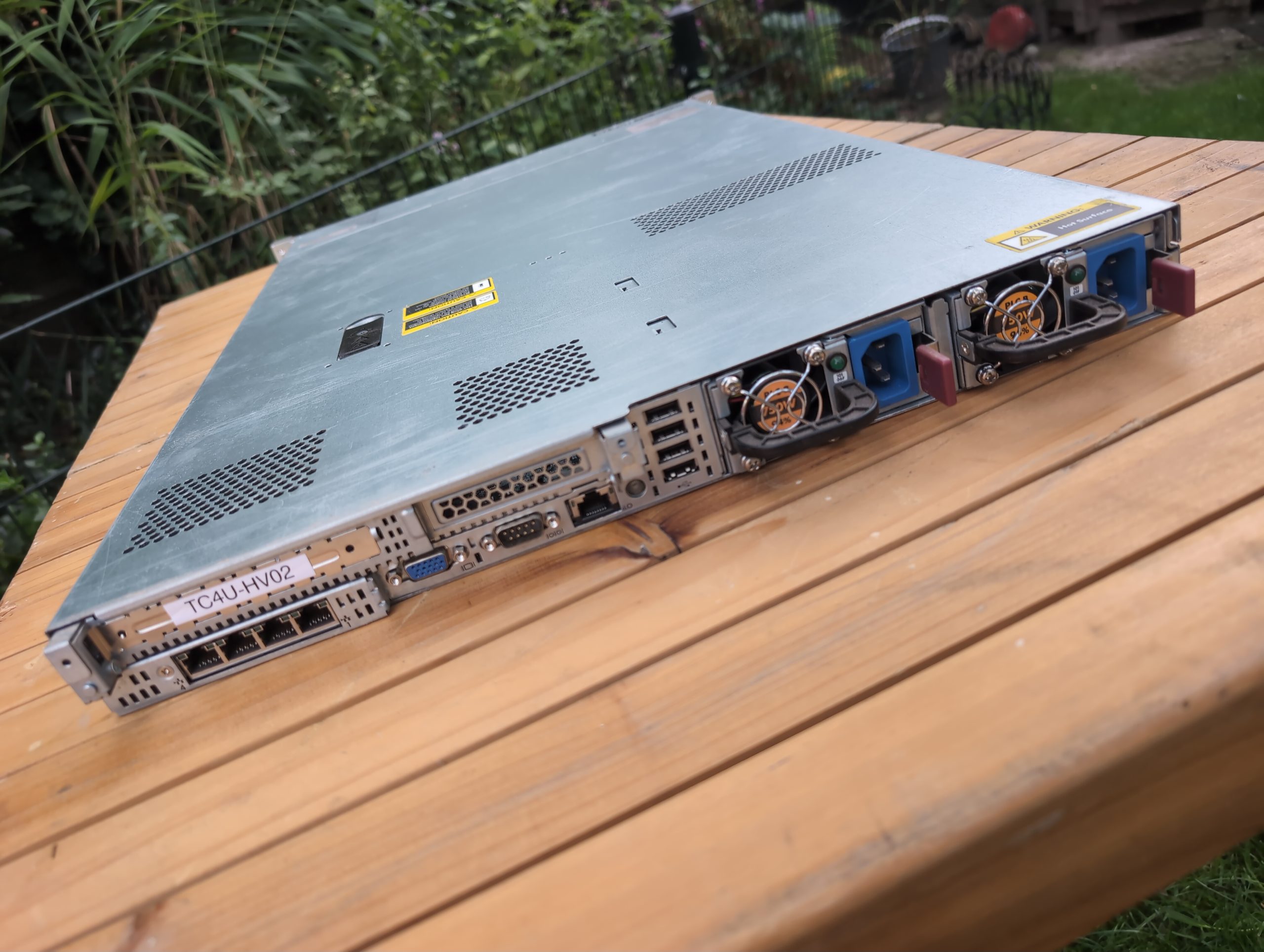

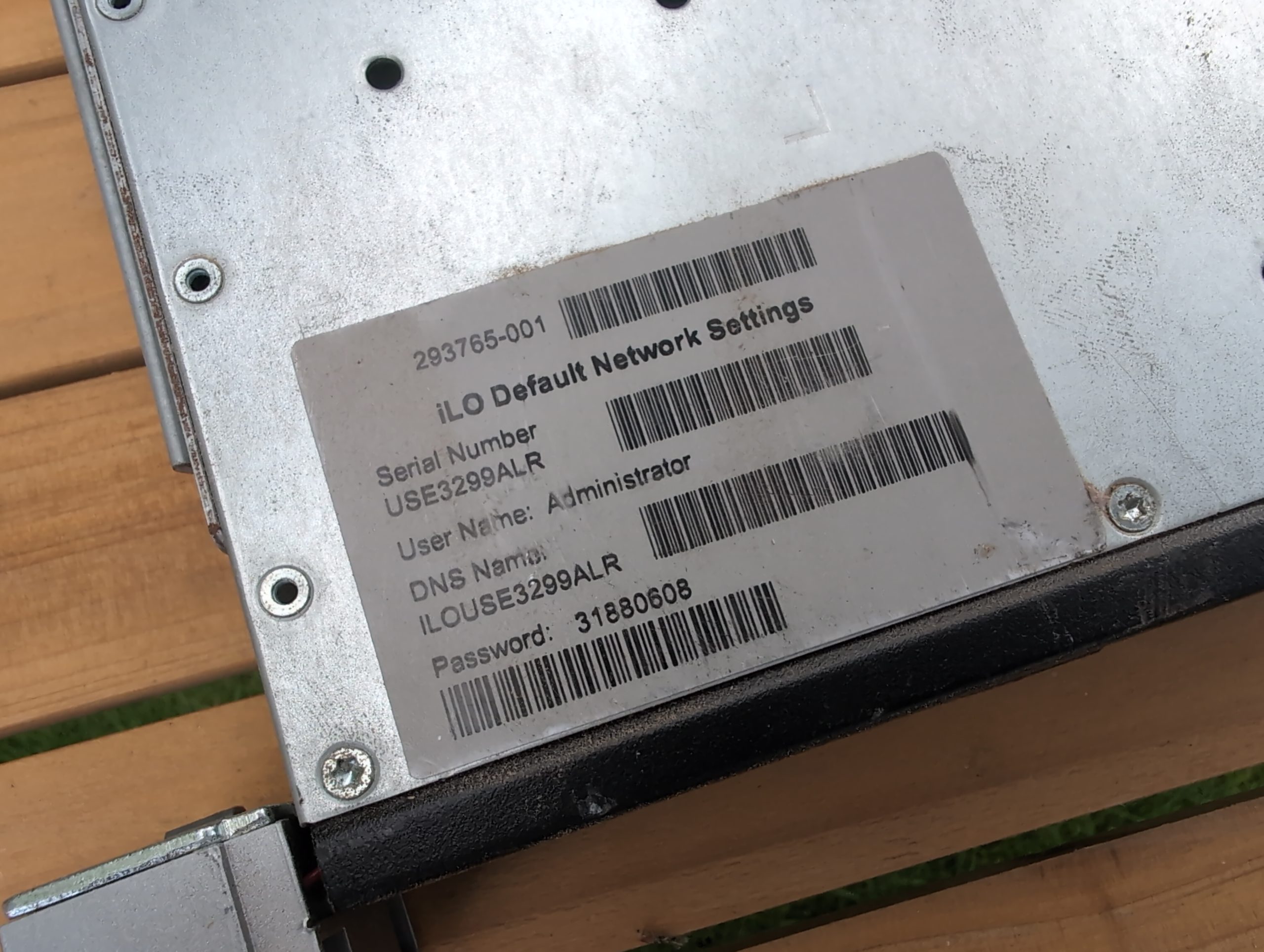

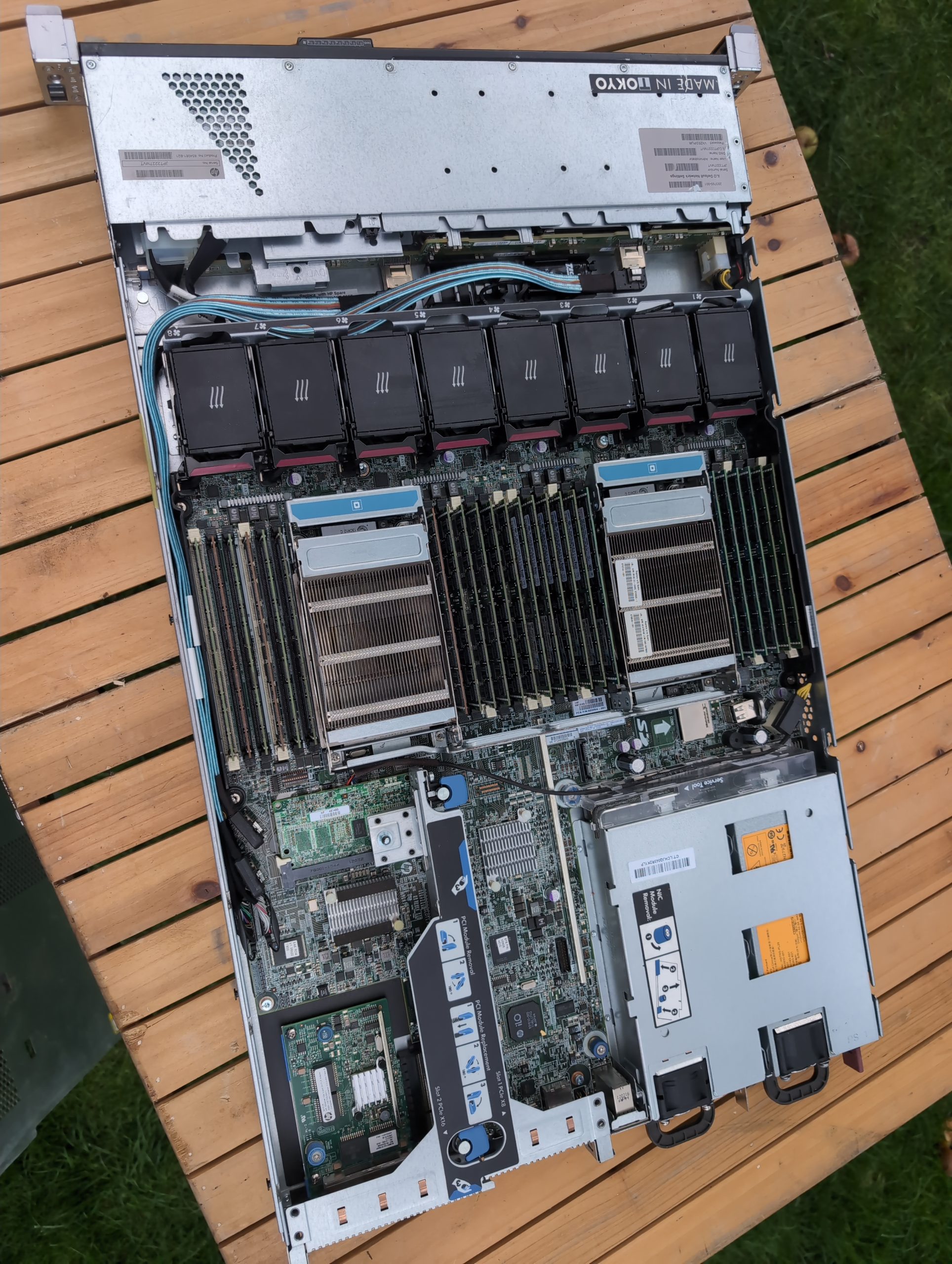

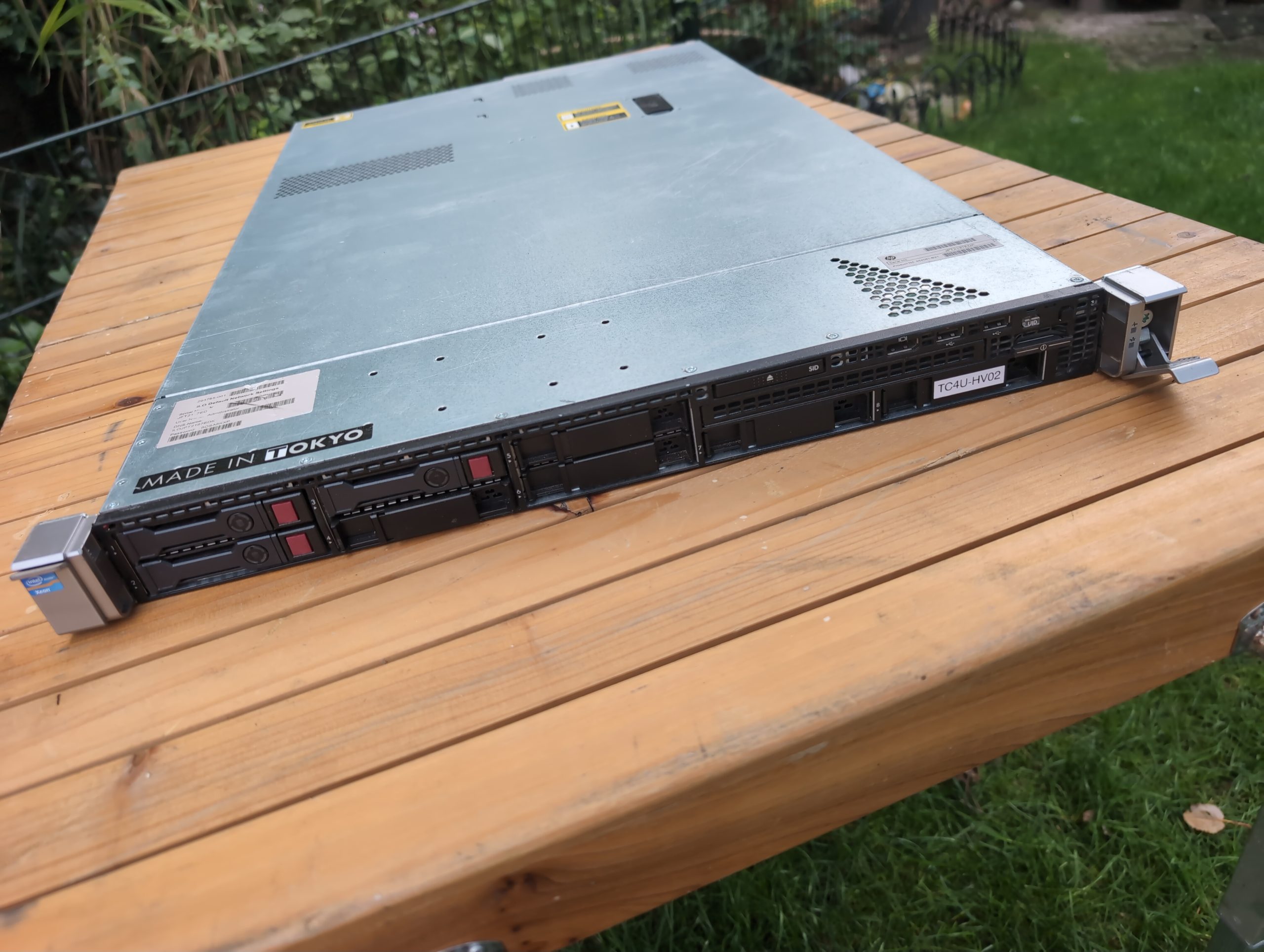

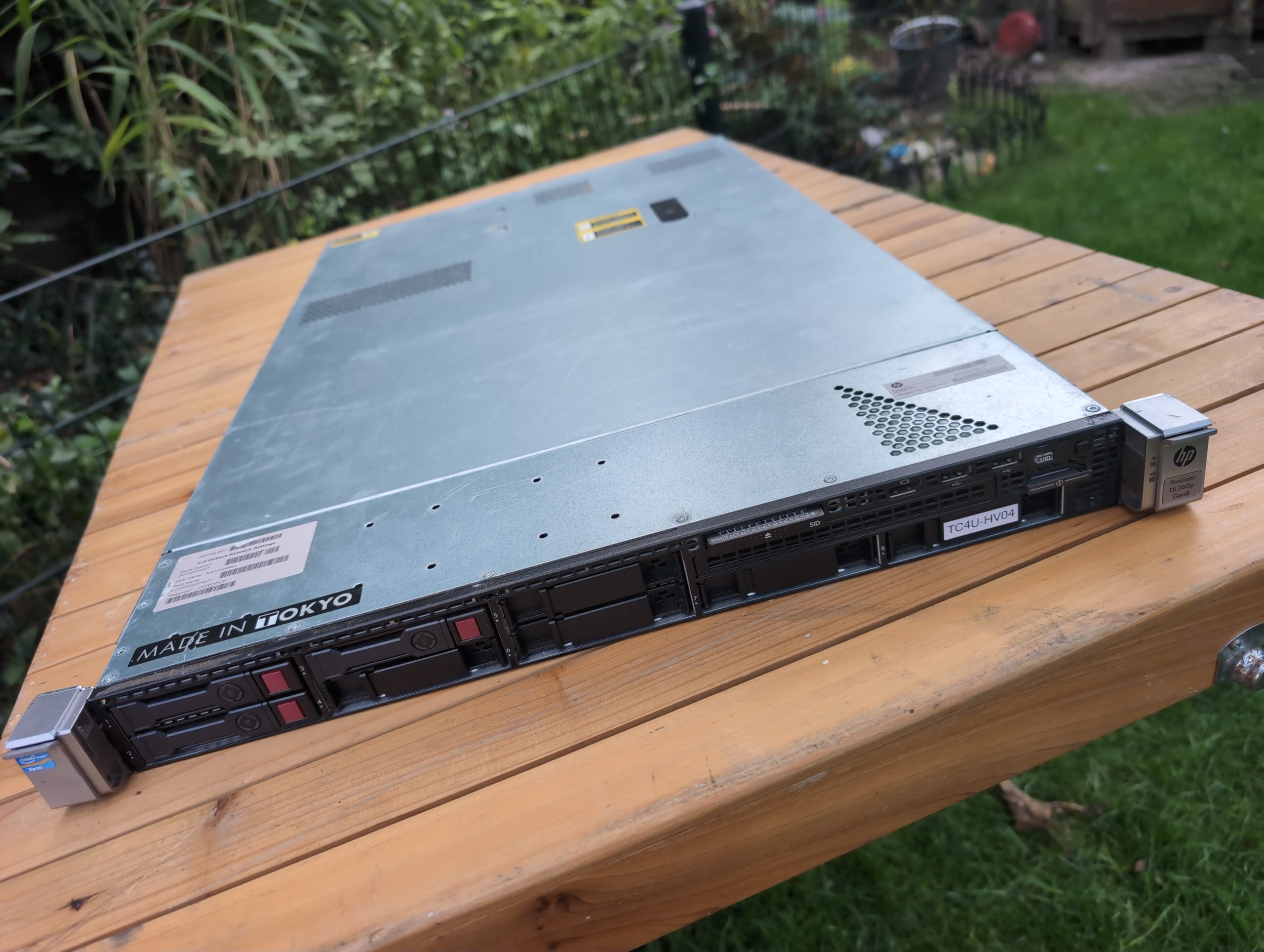

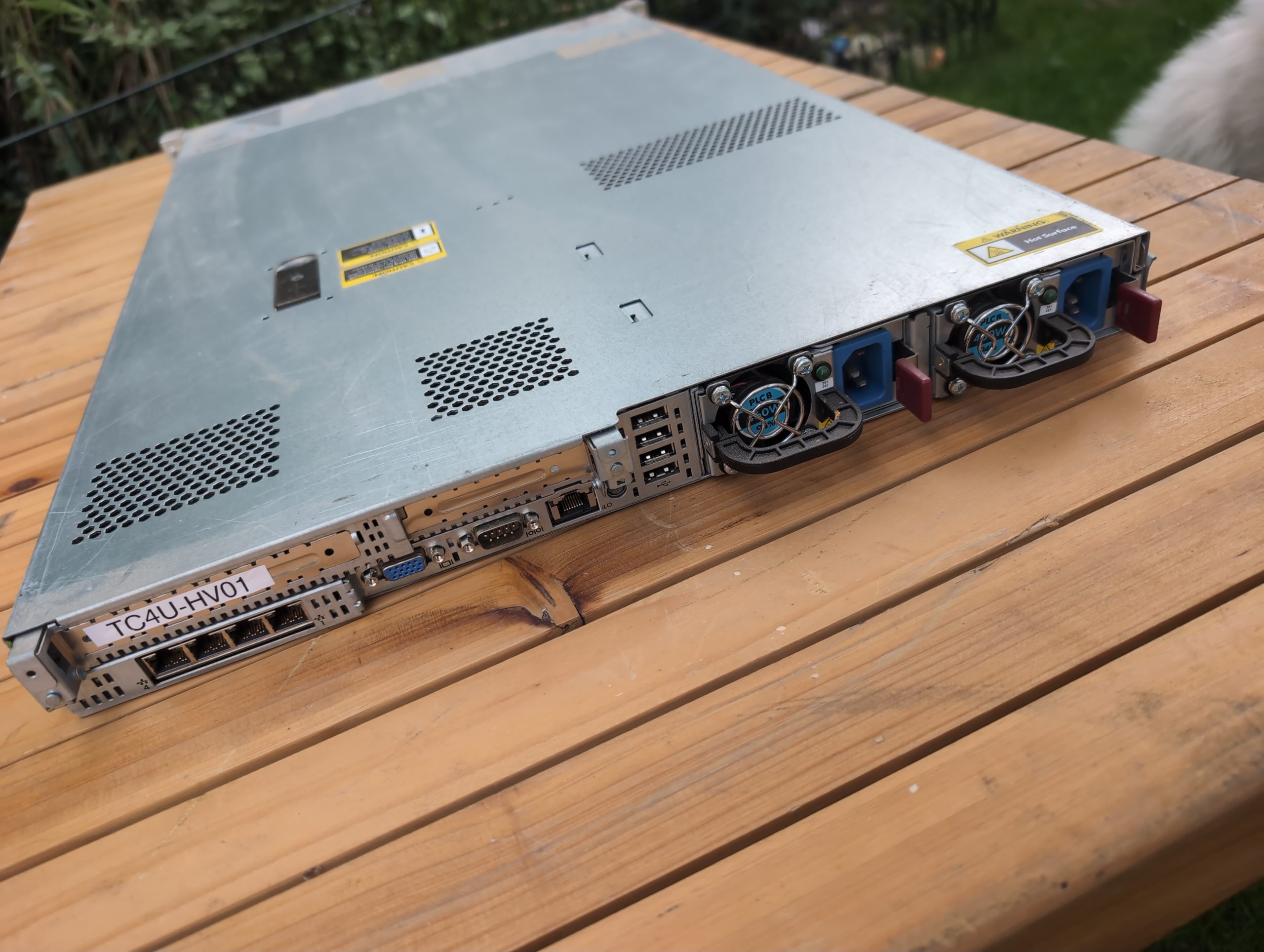

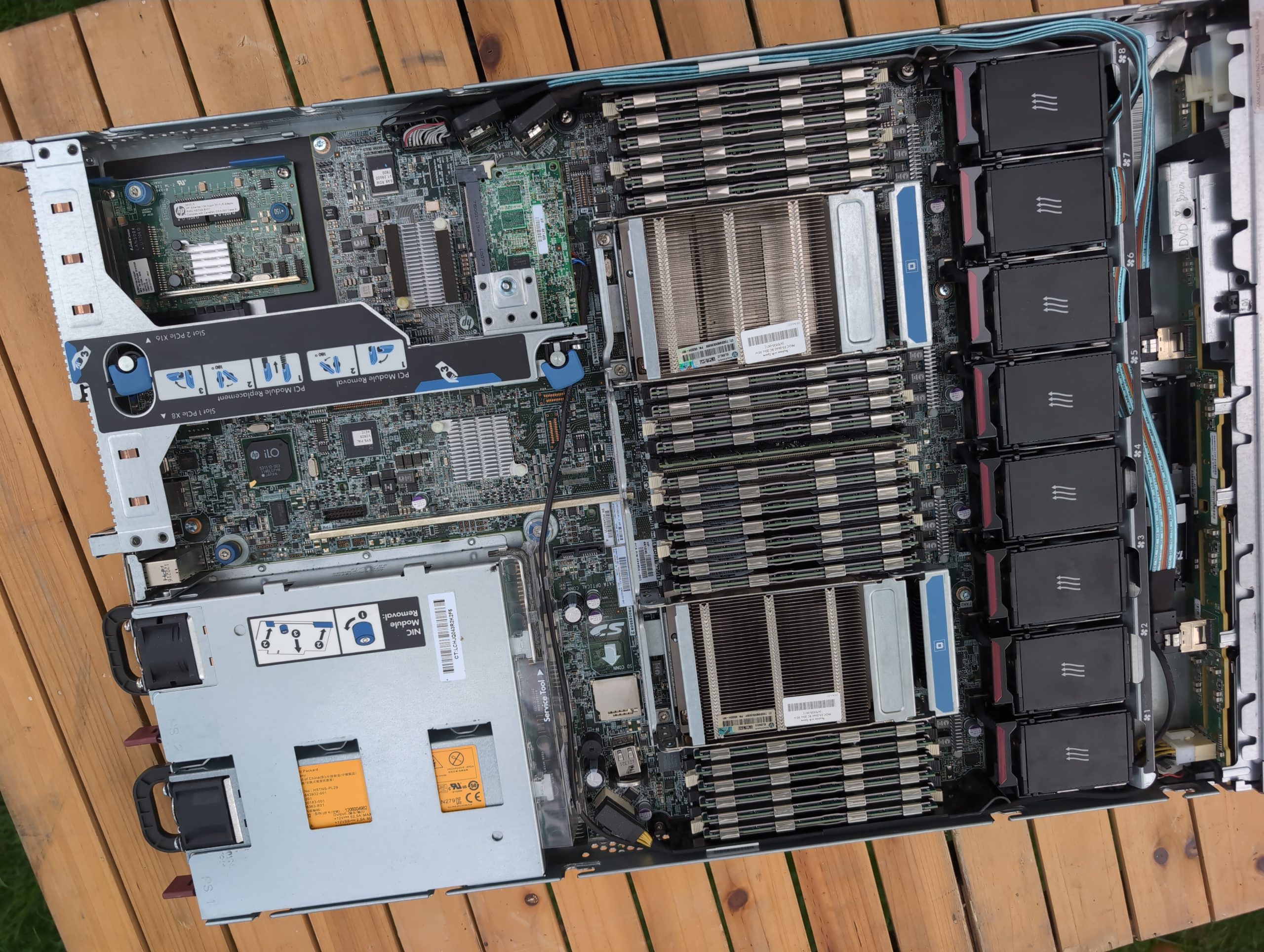

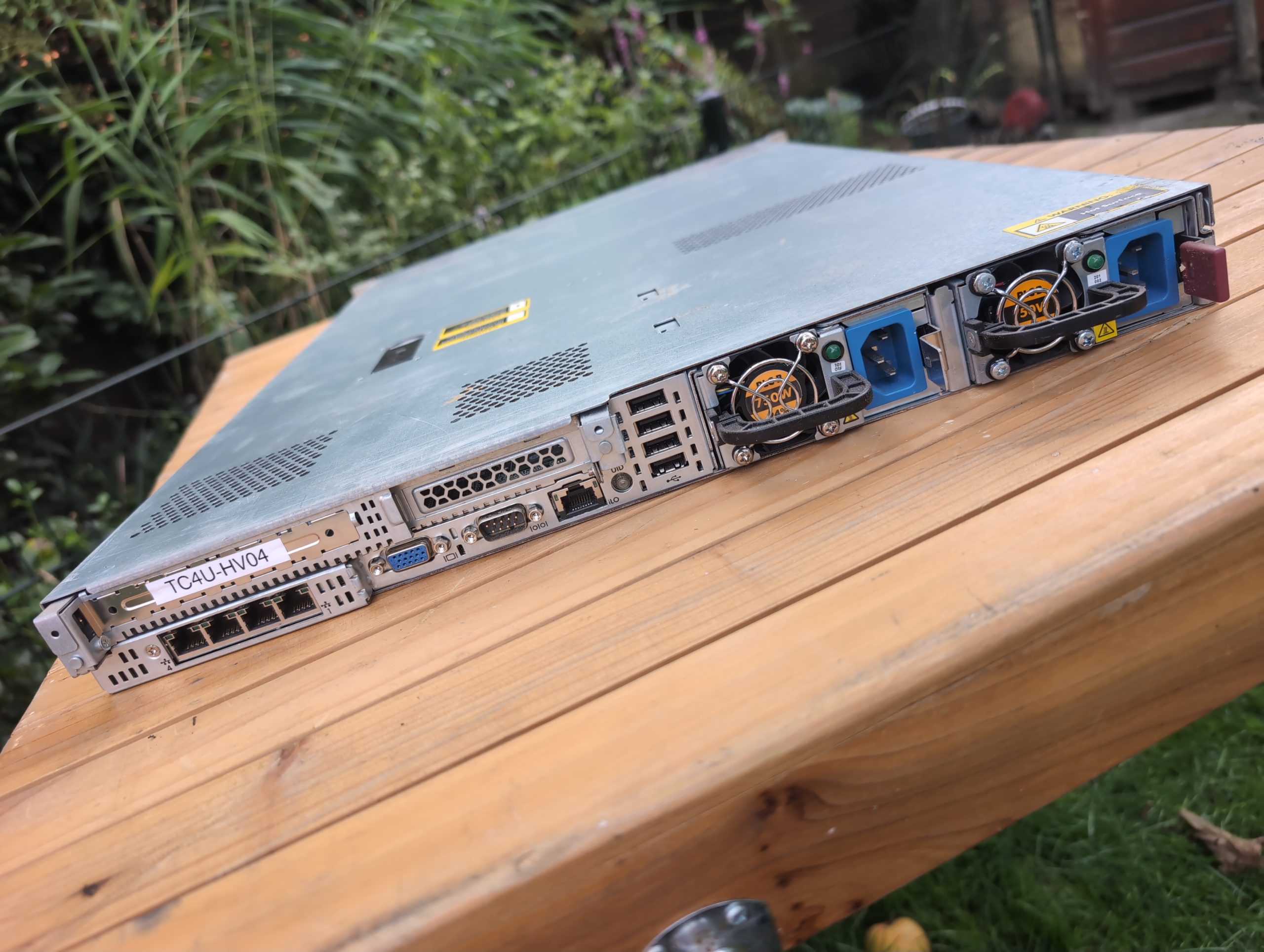

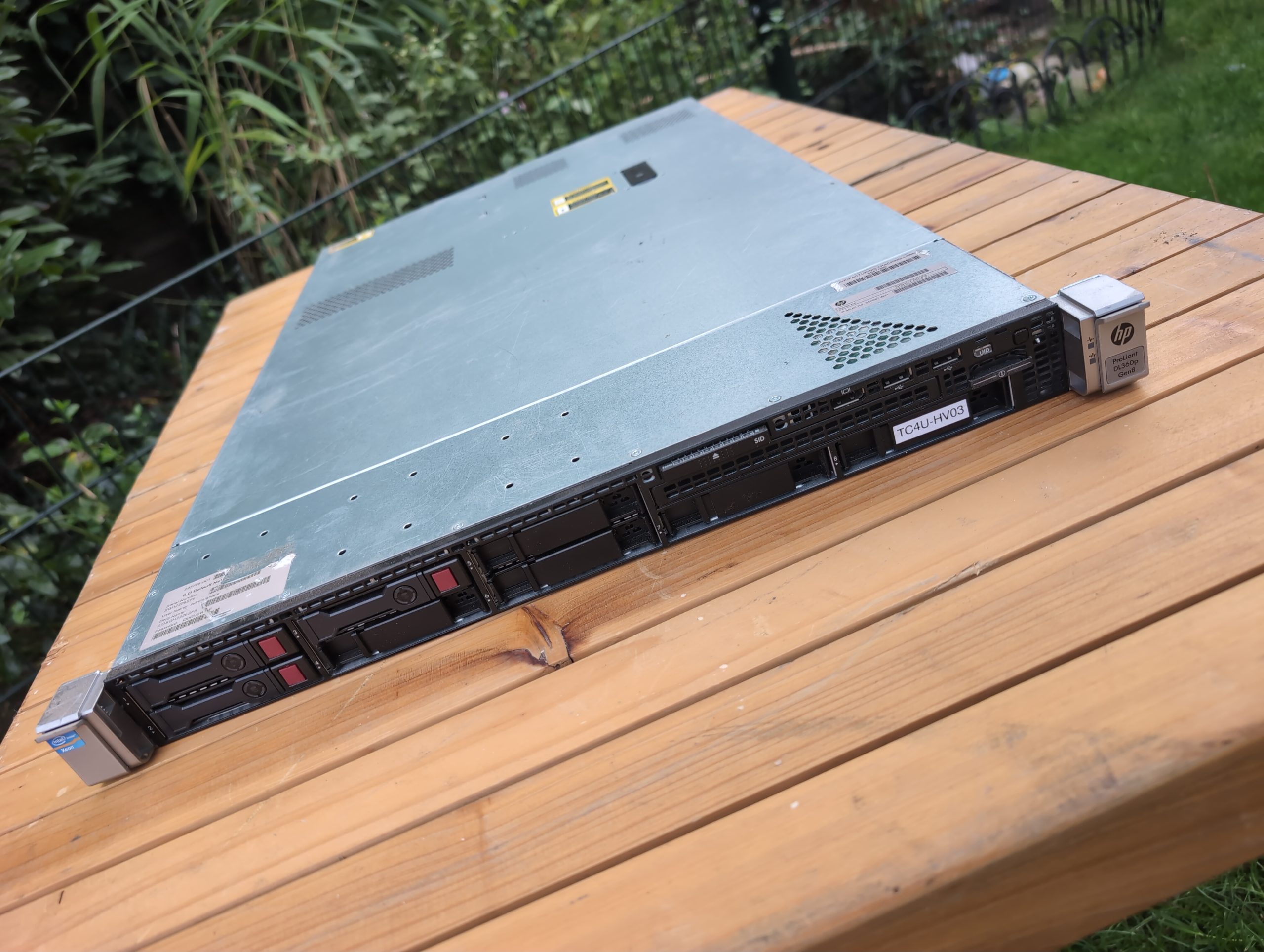

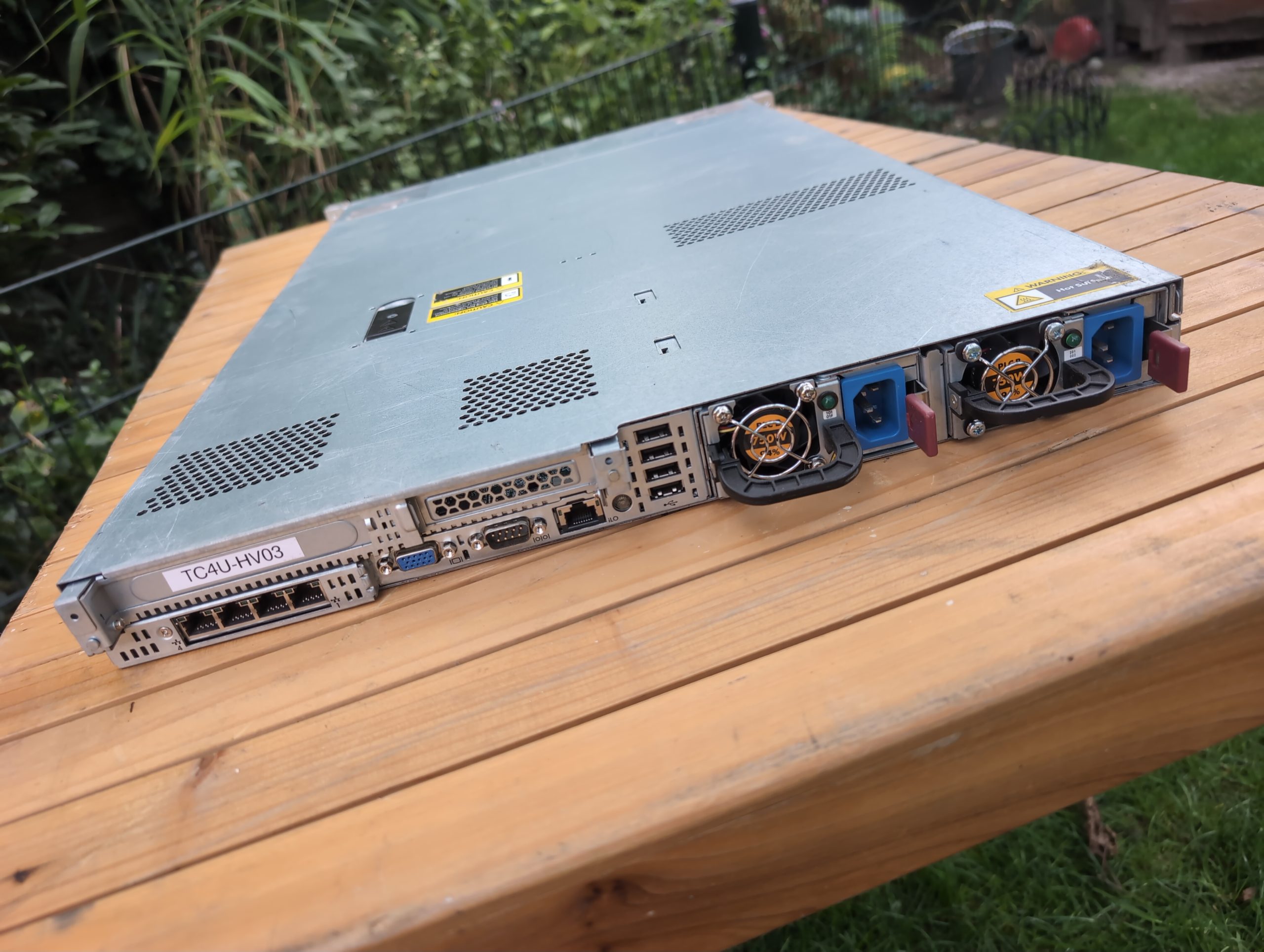

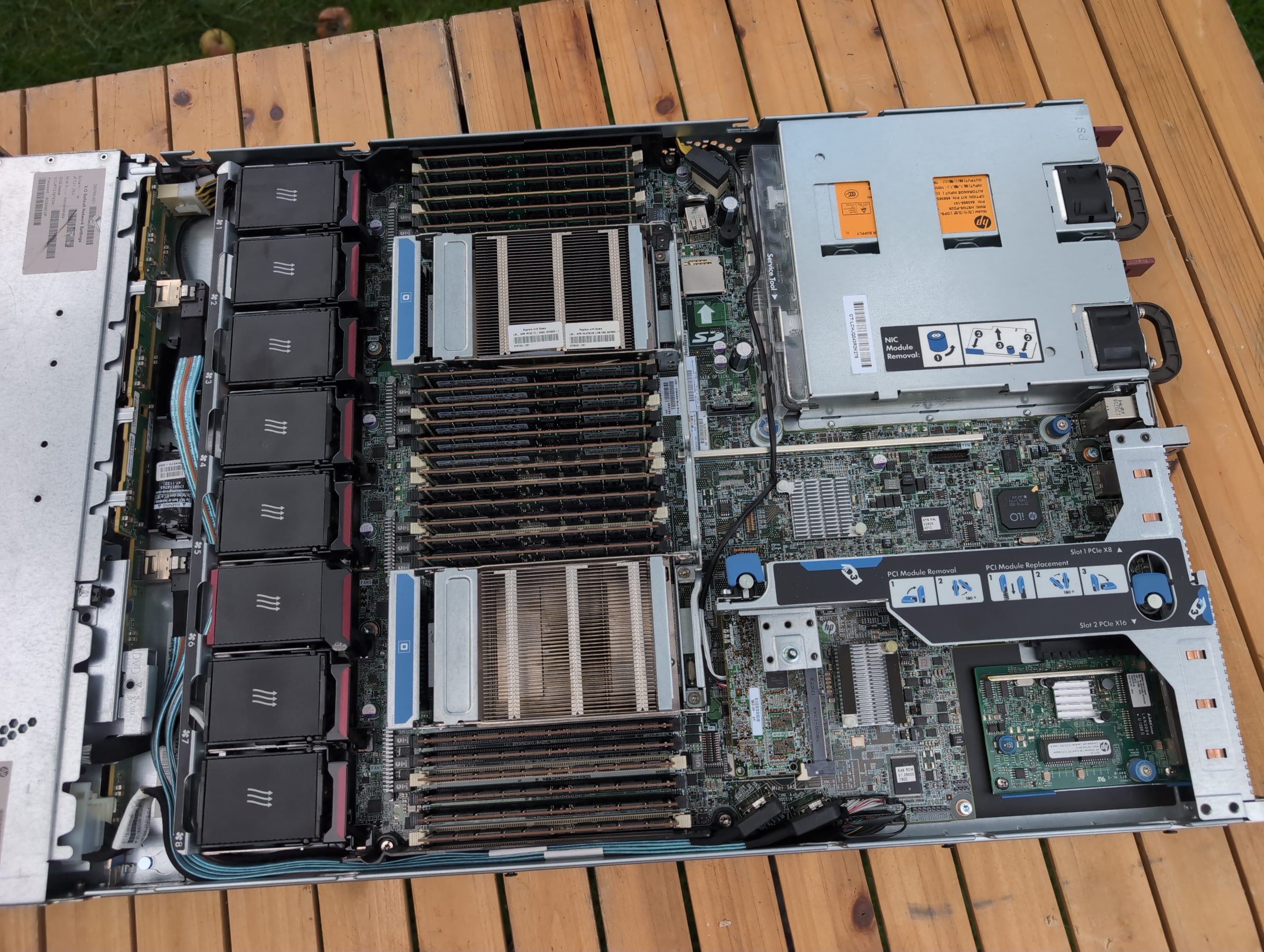

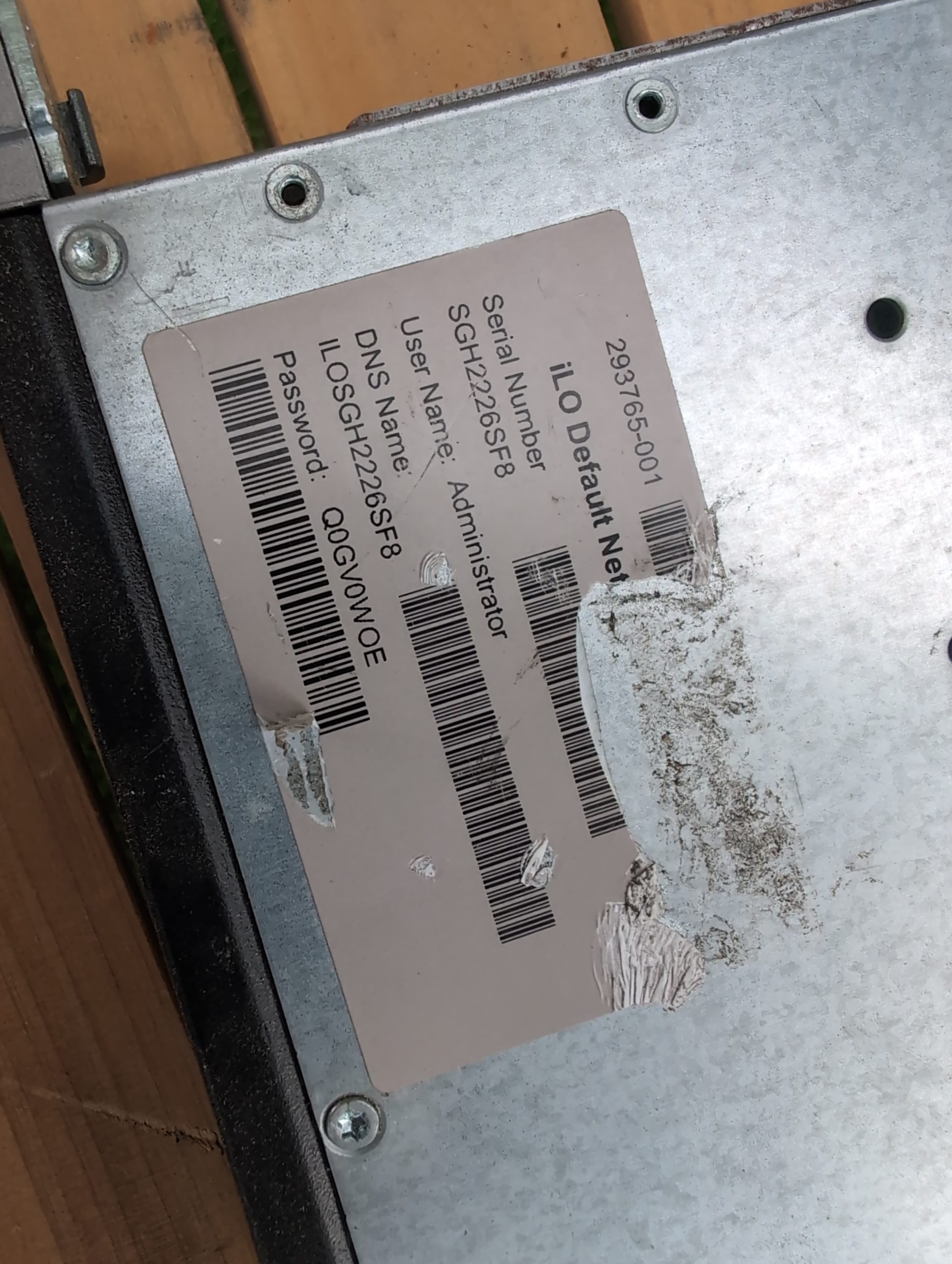

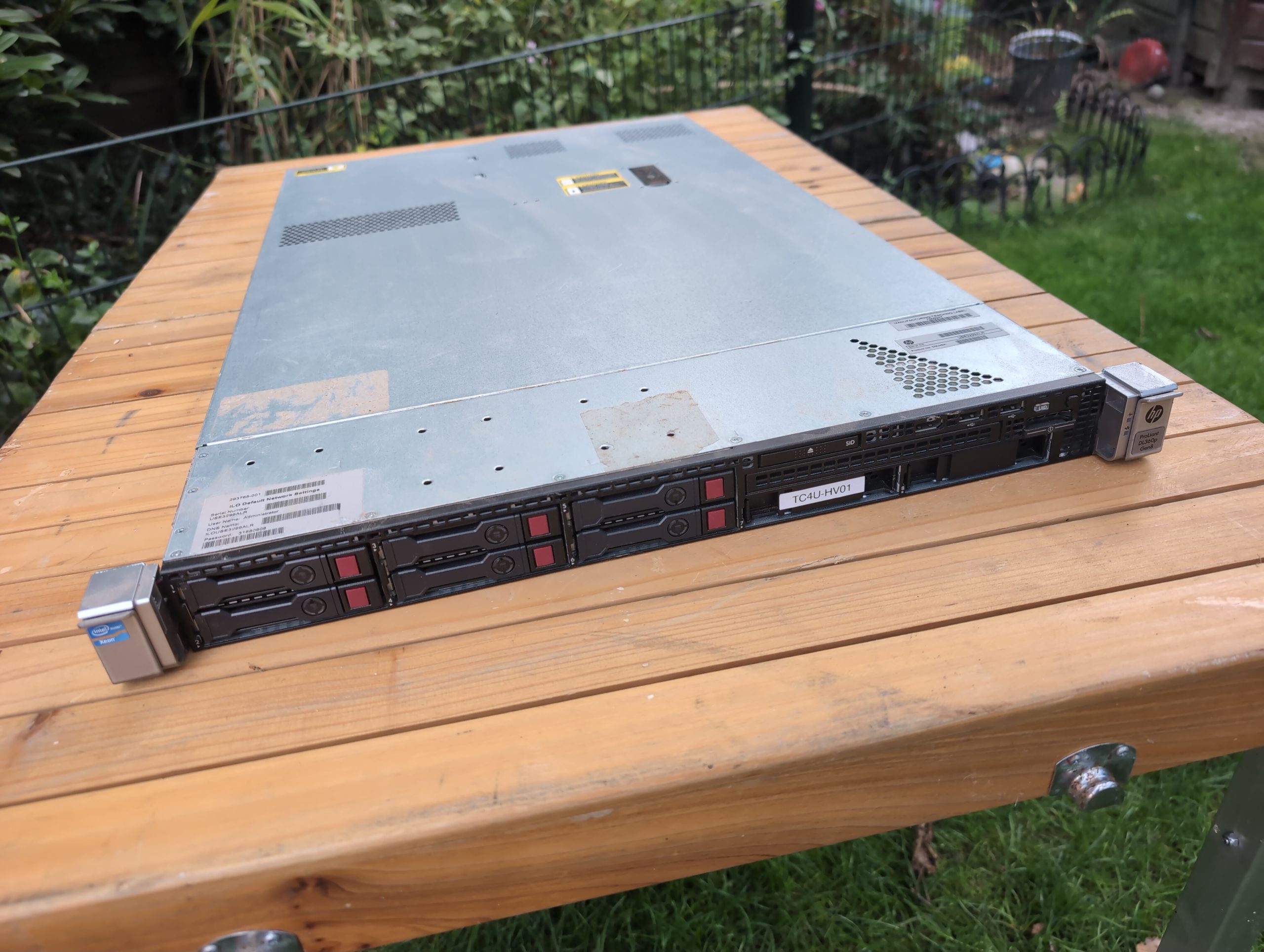

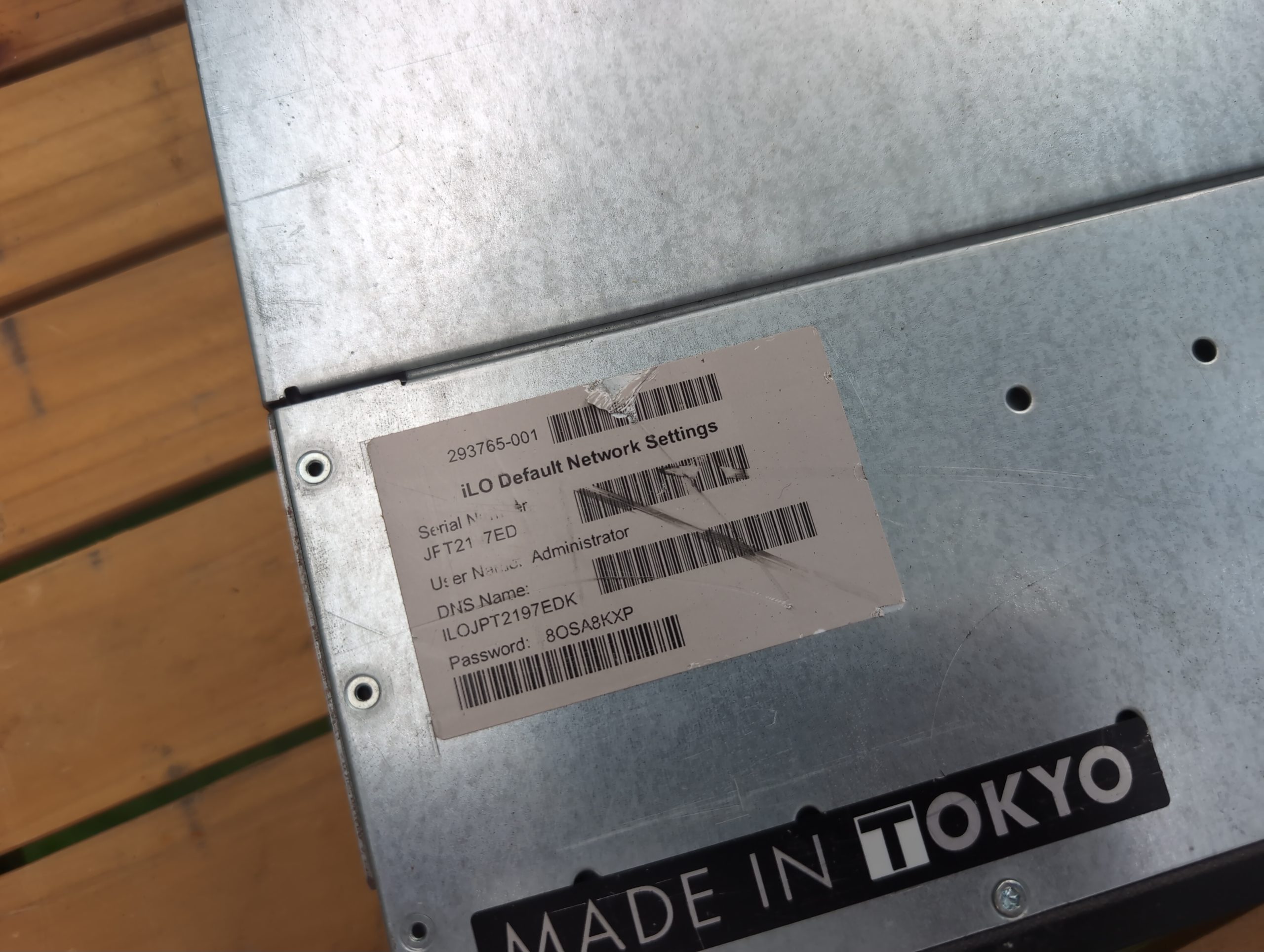

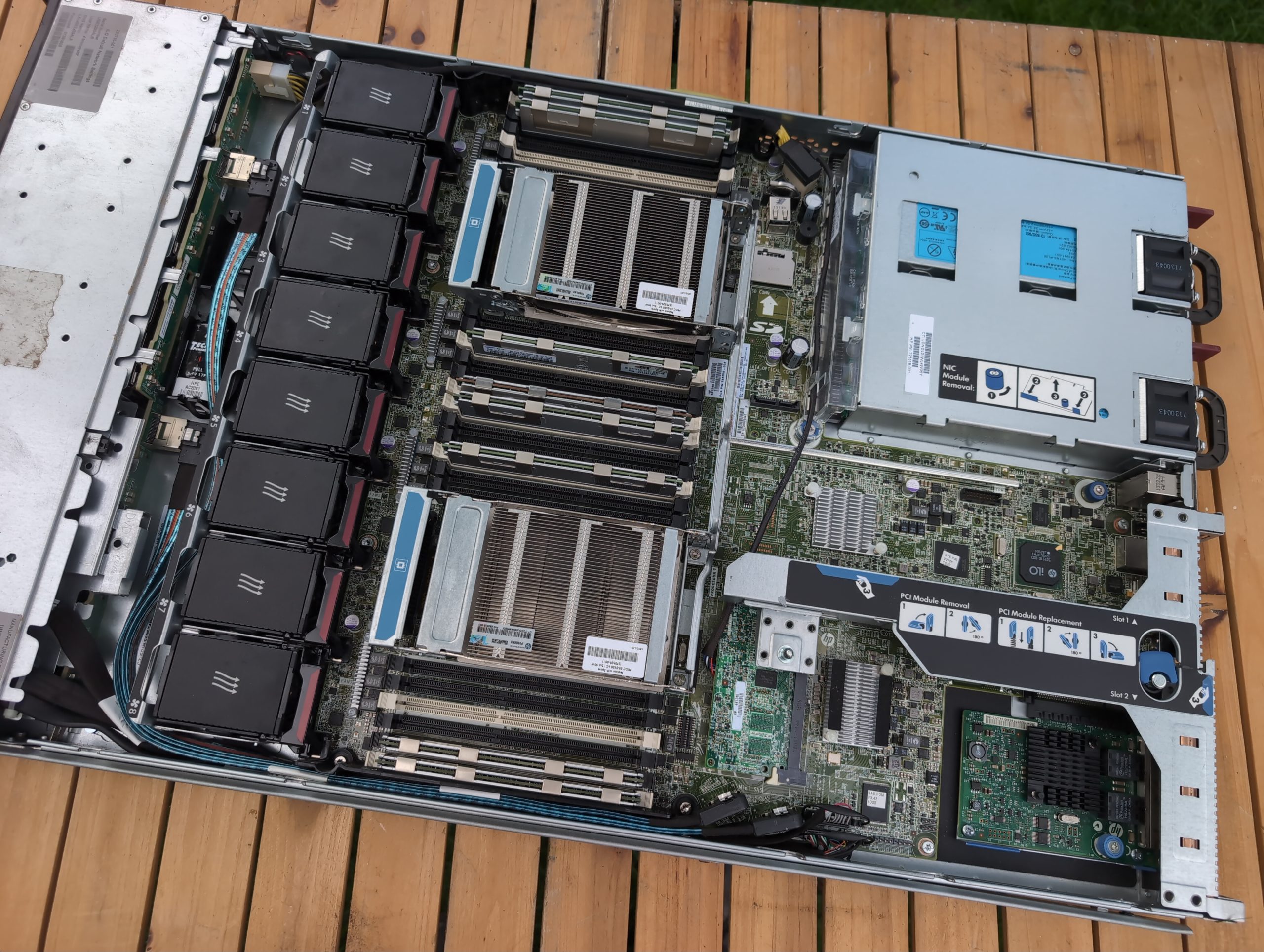

05 – HP Proliant DL360P
06 – HP Proliant DL360P
07 – HP Proliant DL360P
08 – Proliant DL360P – G8

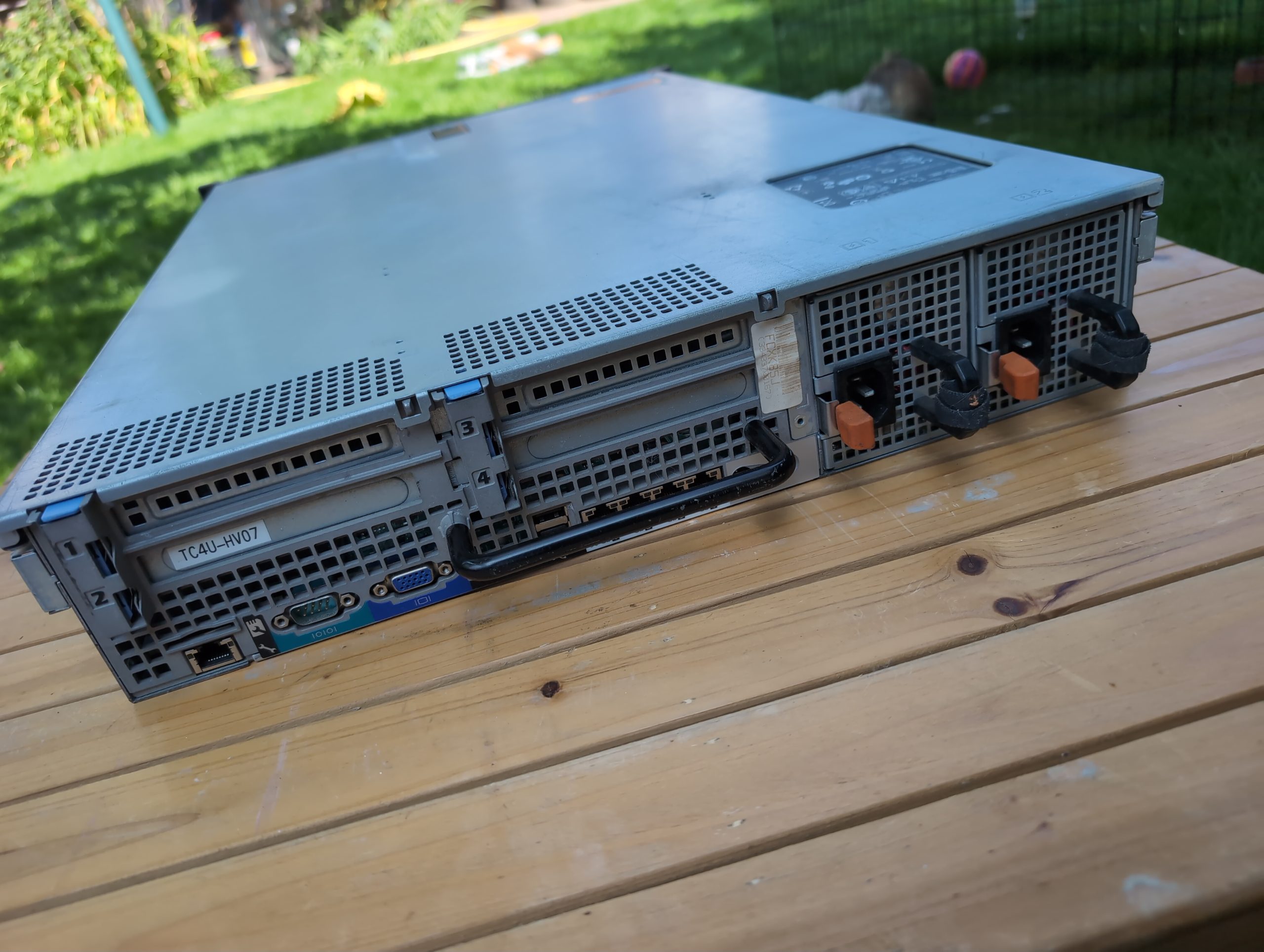

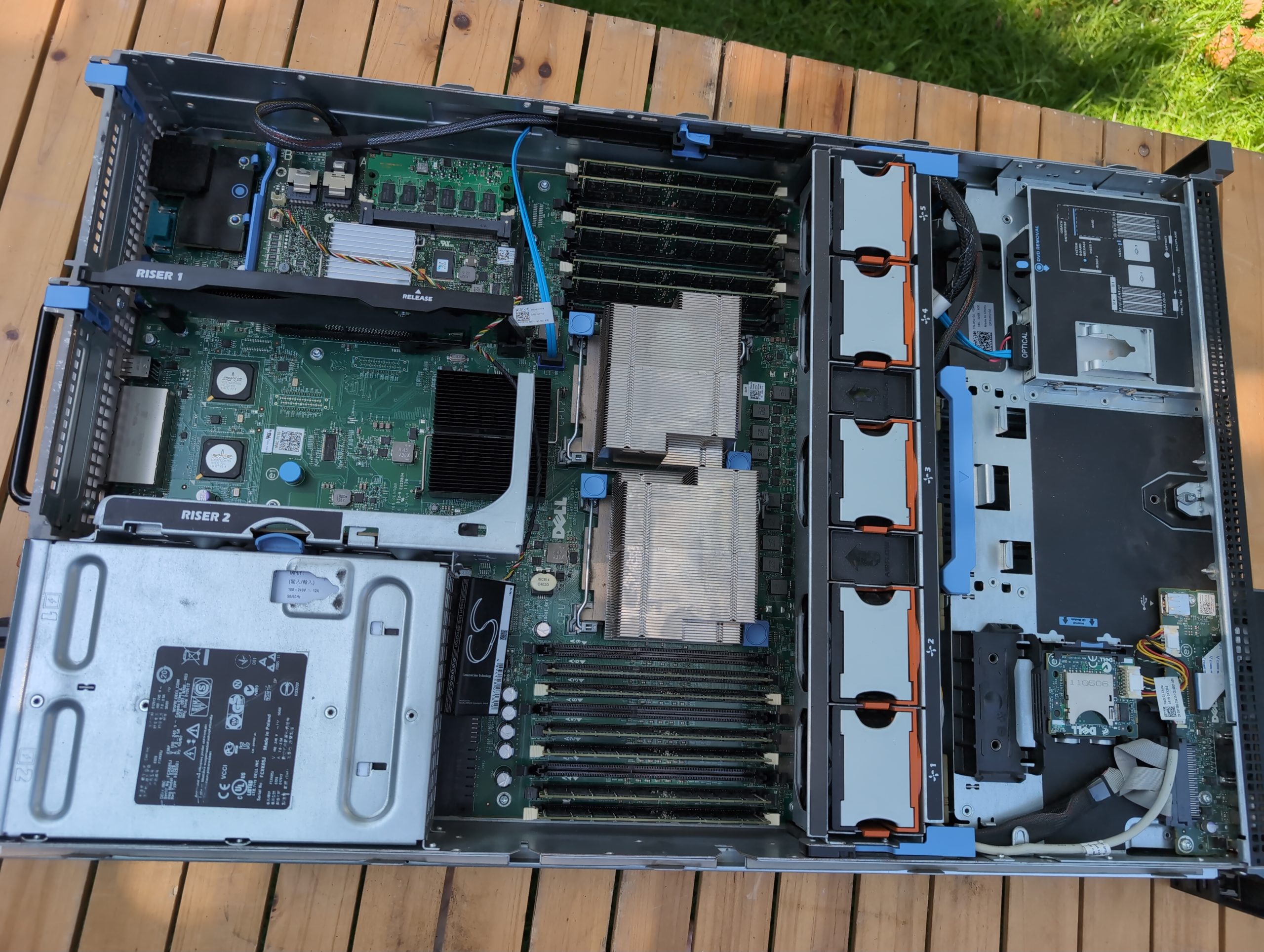

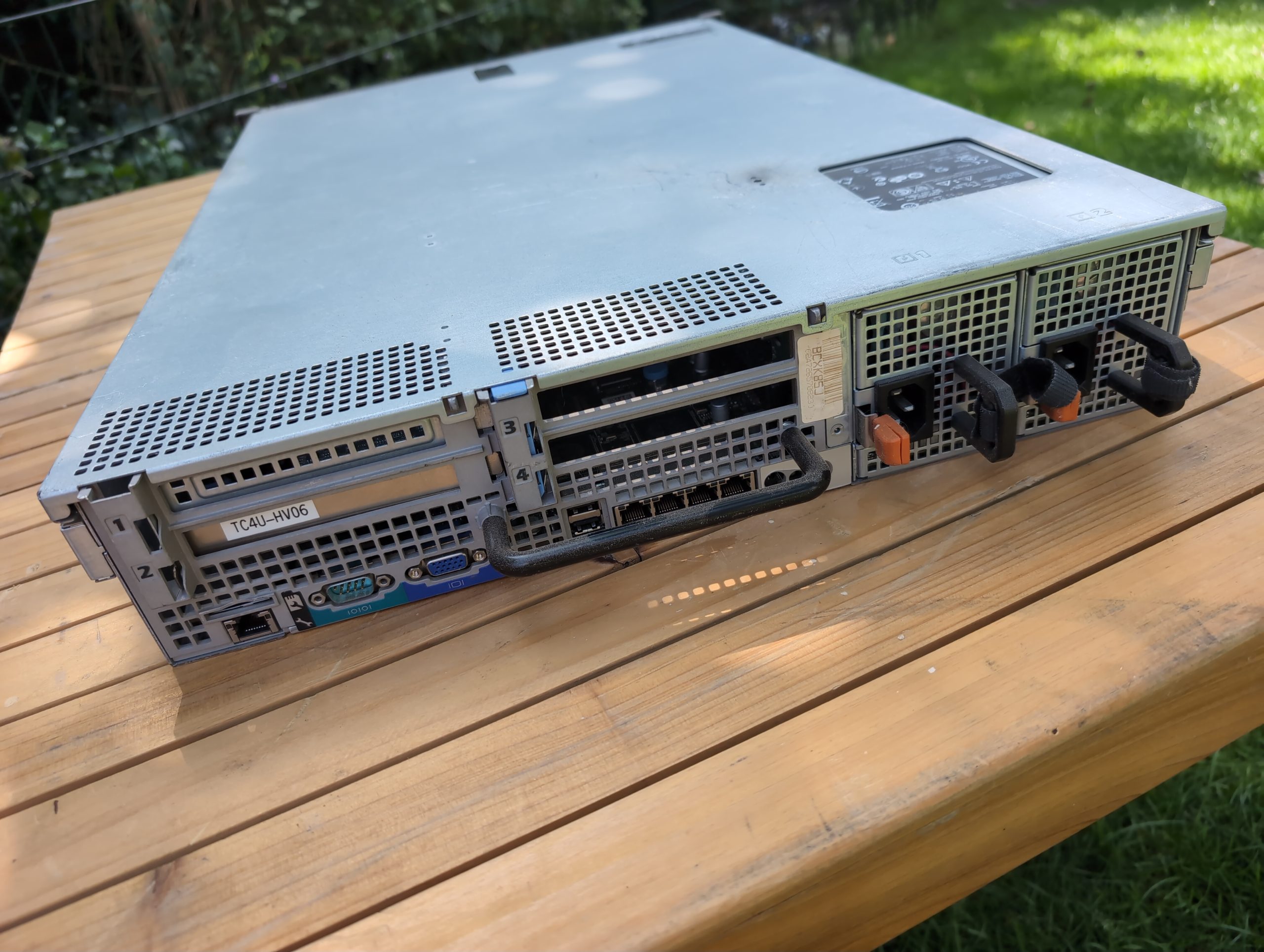

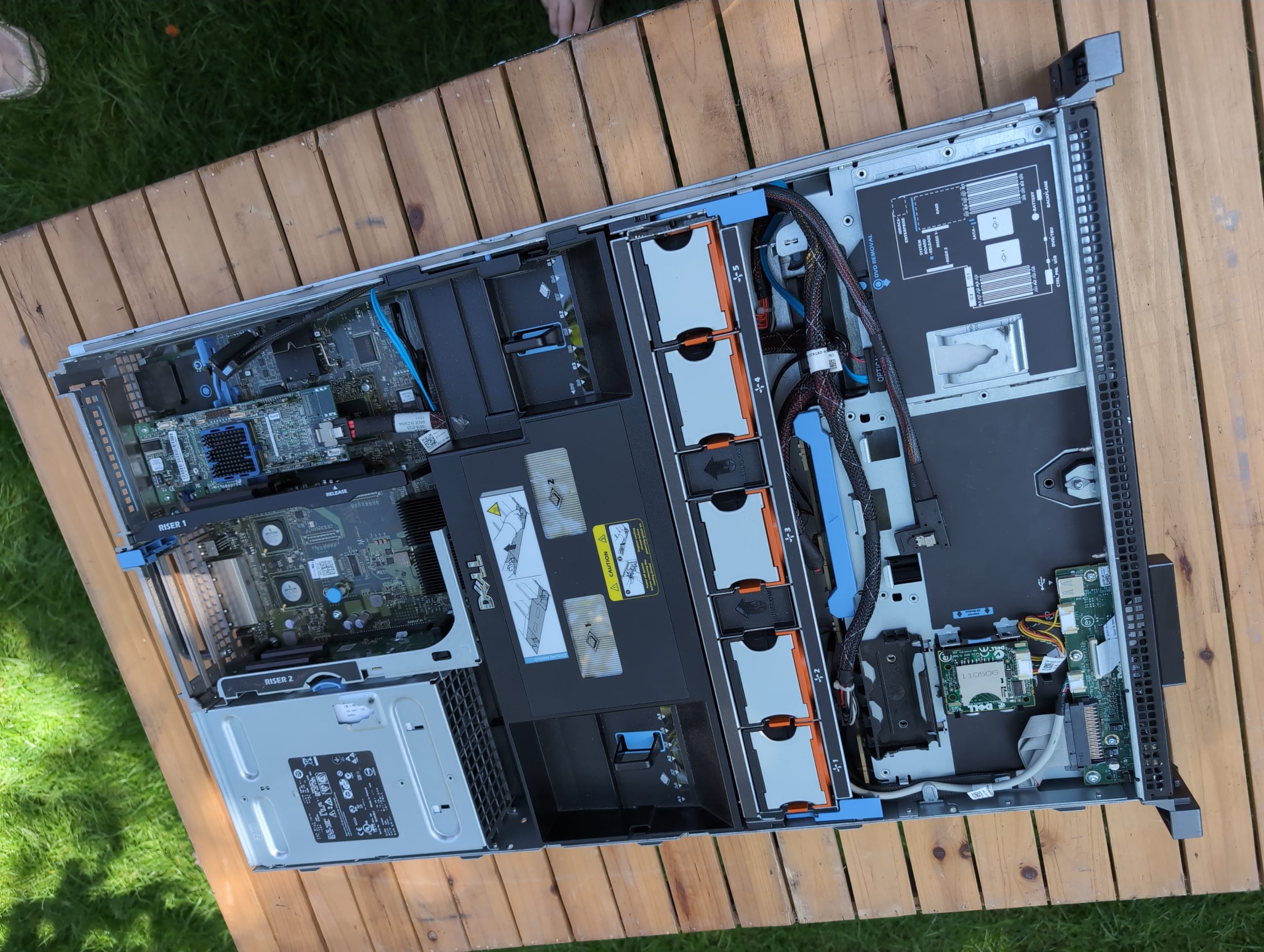

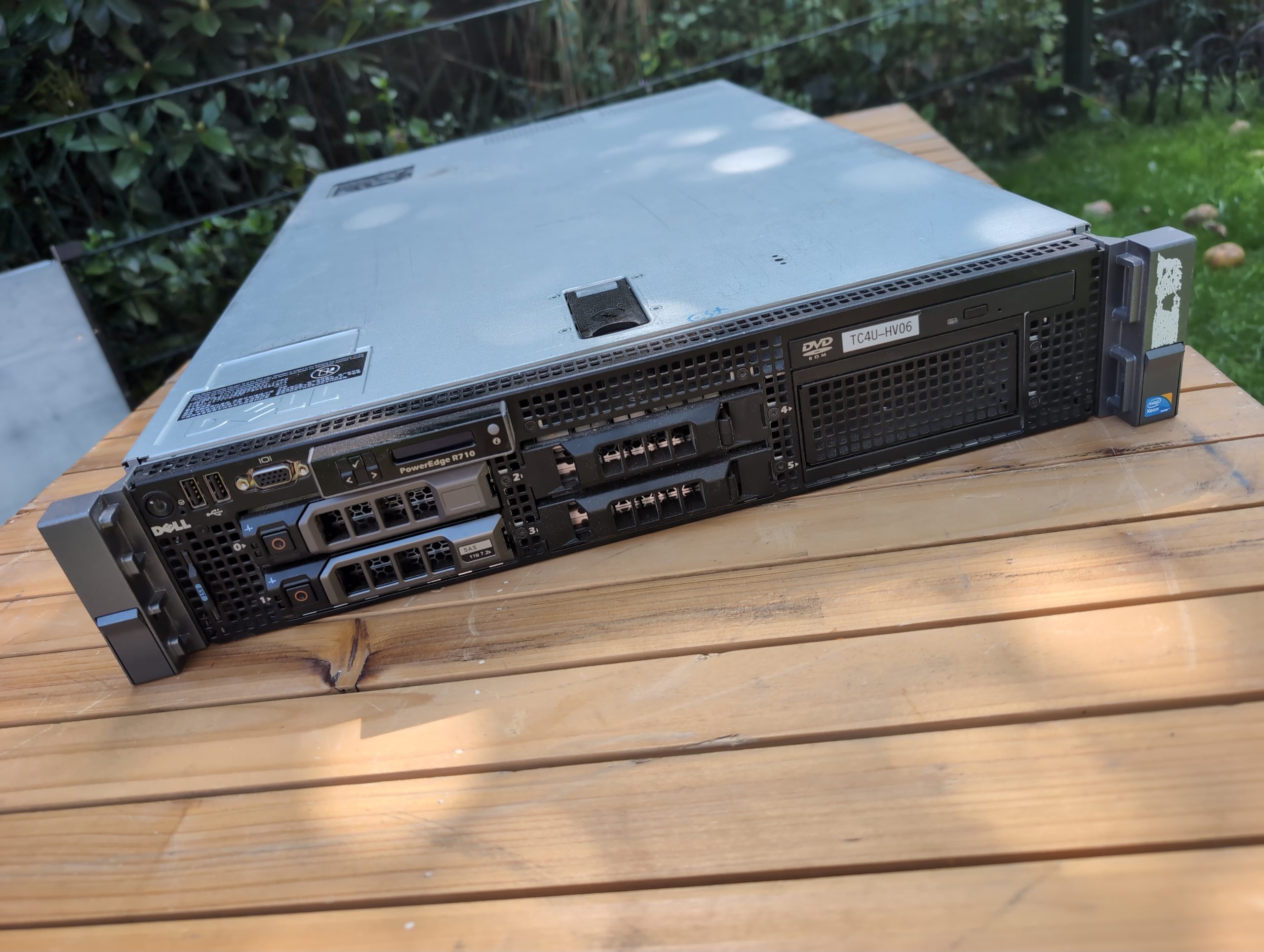

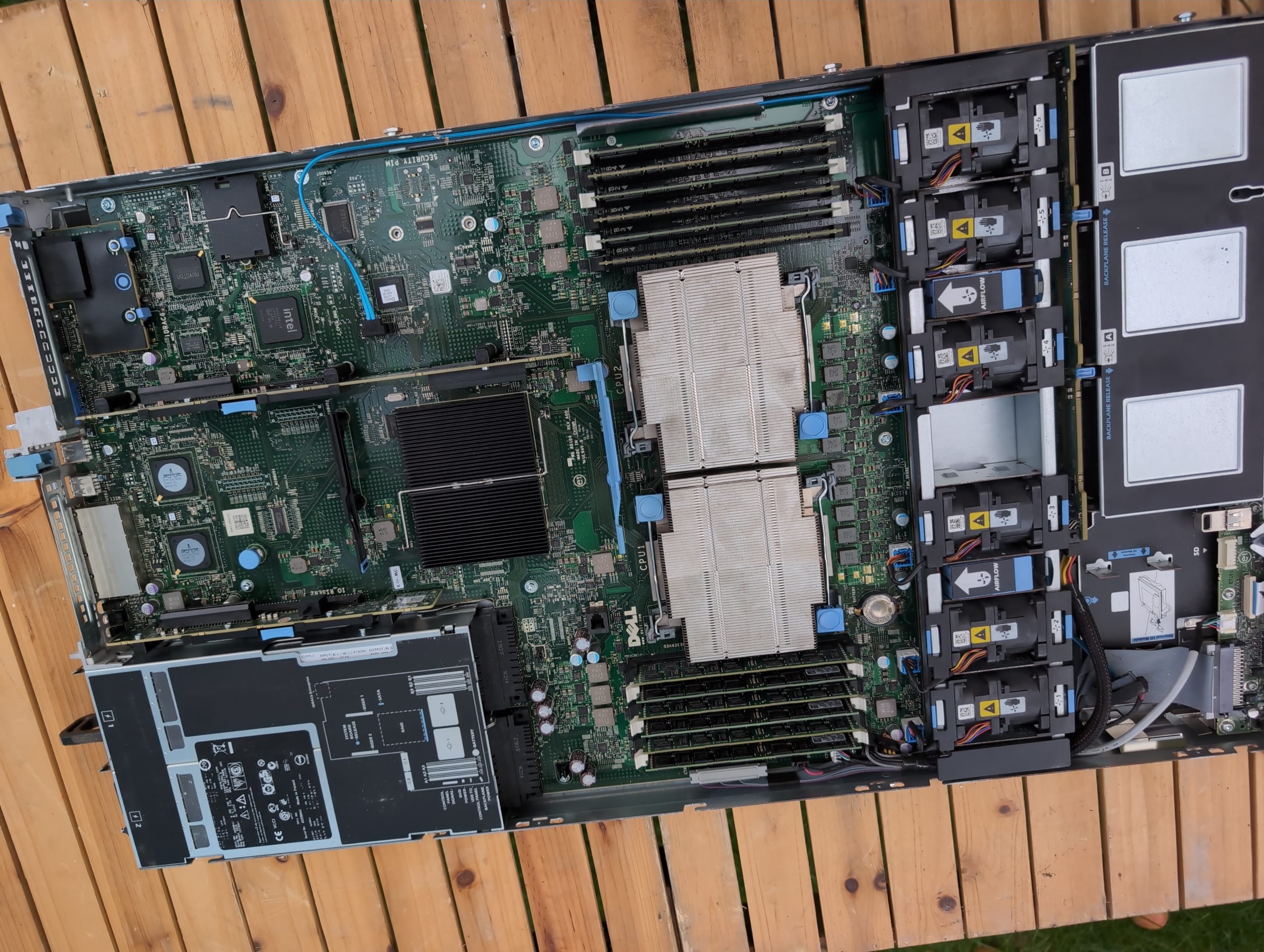

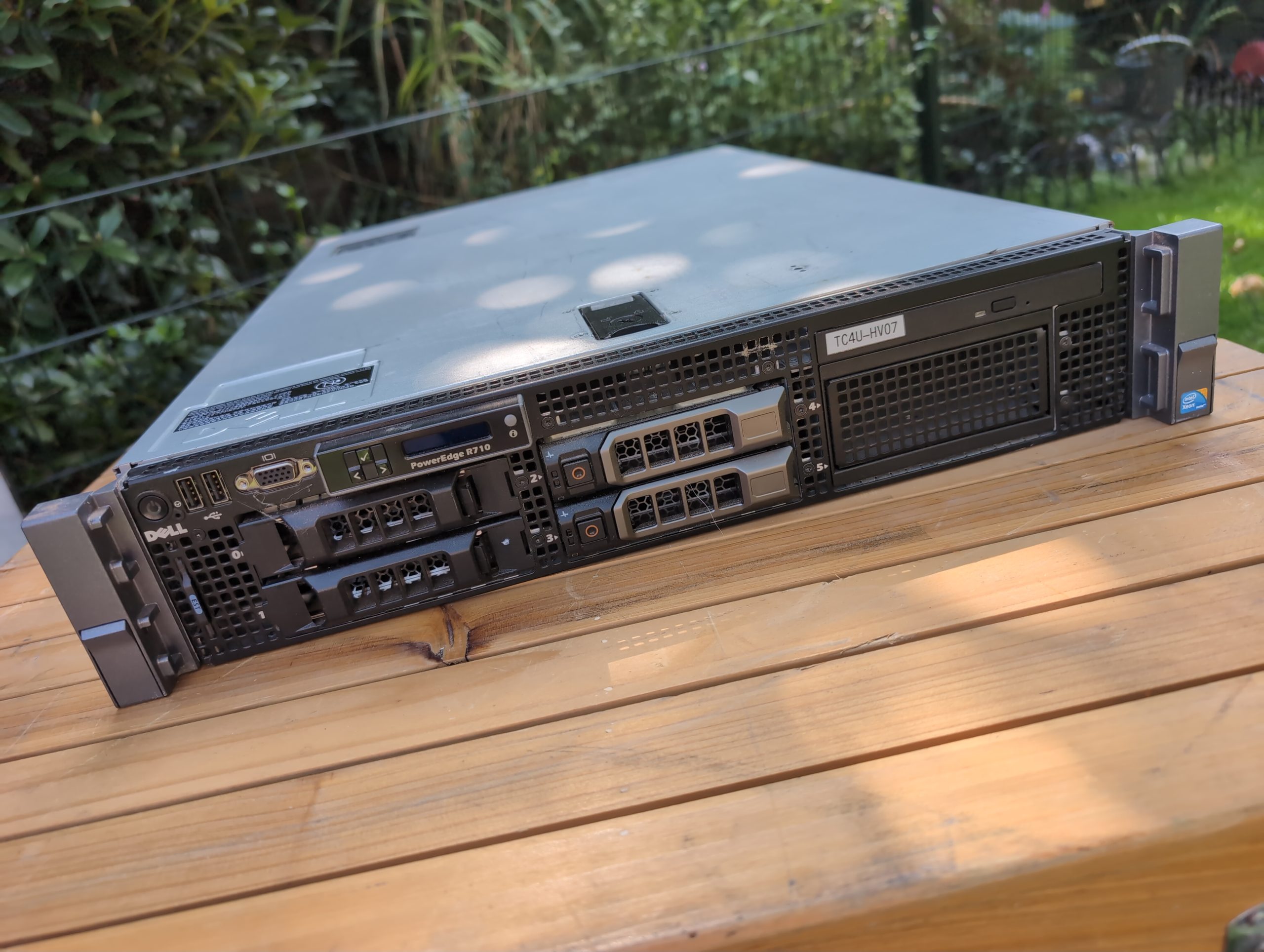

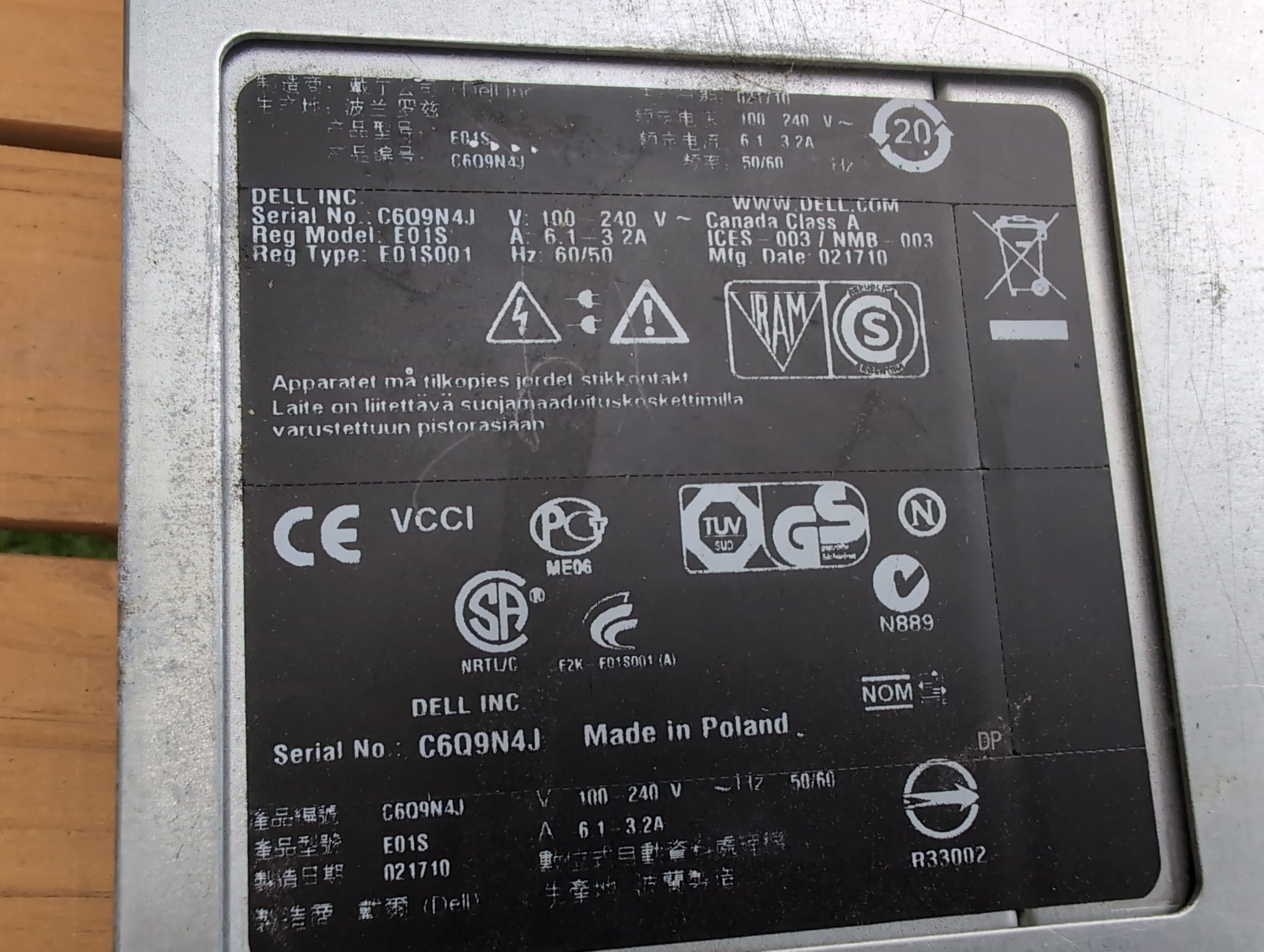

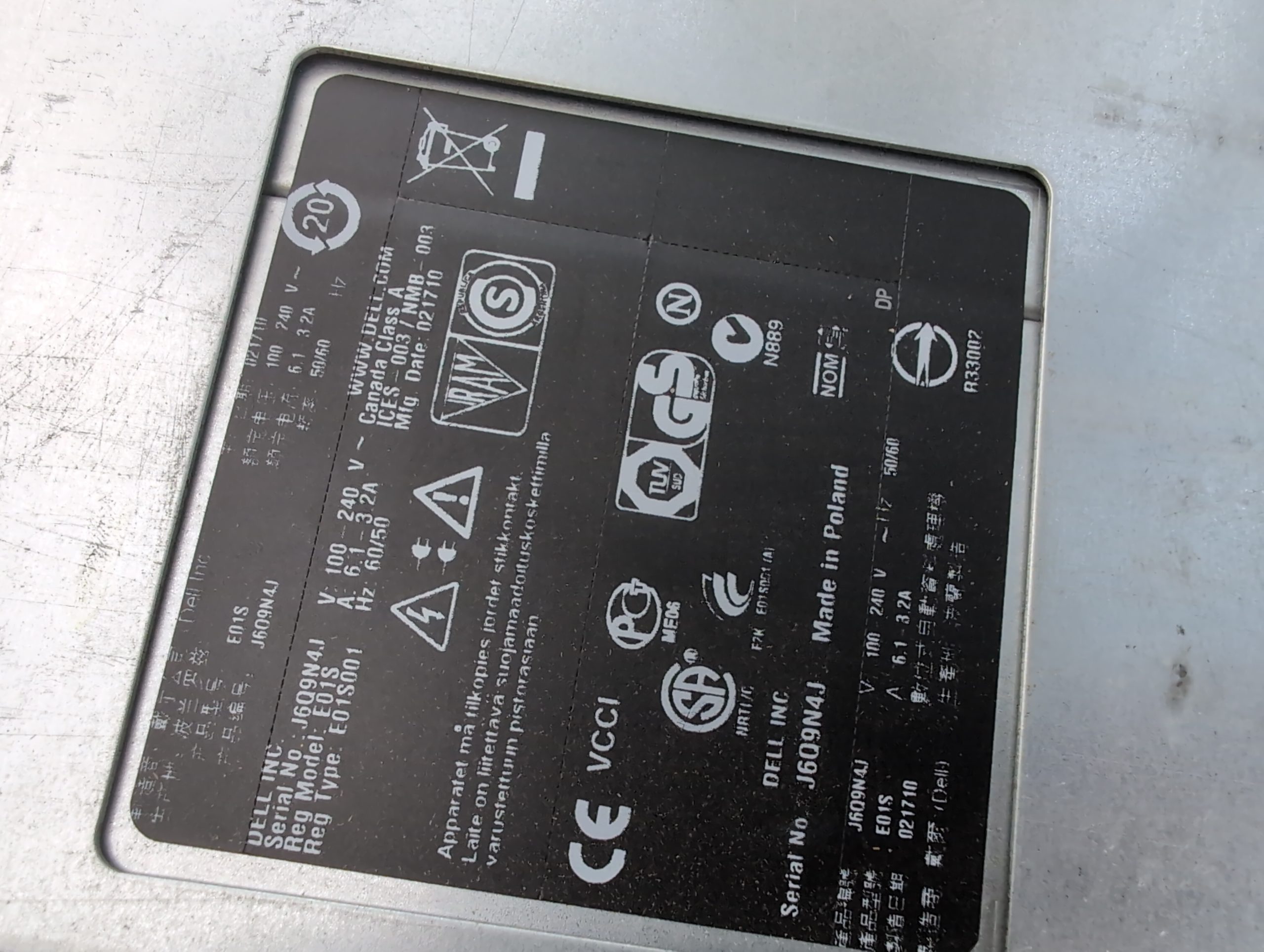

13 – Dell PowerEdge R710
14 – Dell PowerEdge R710

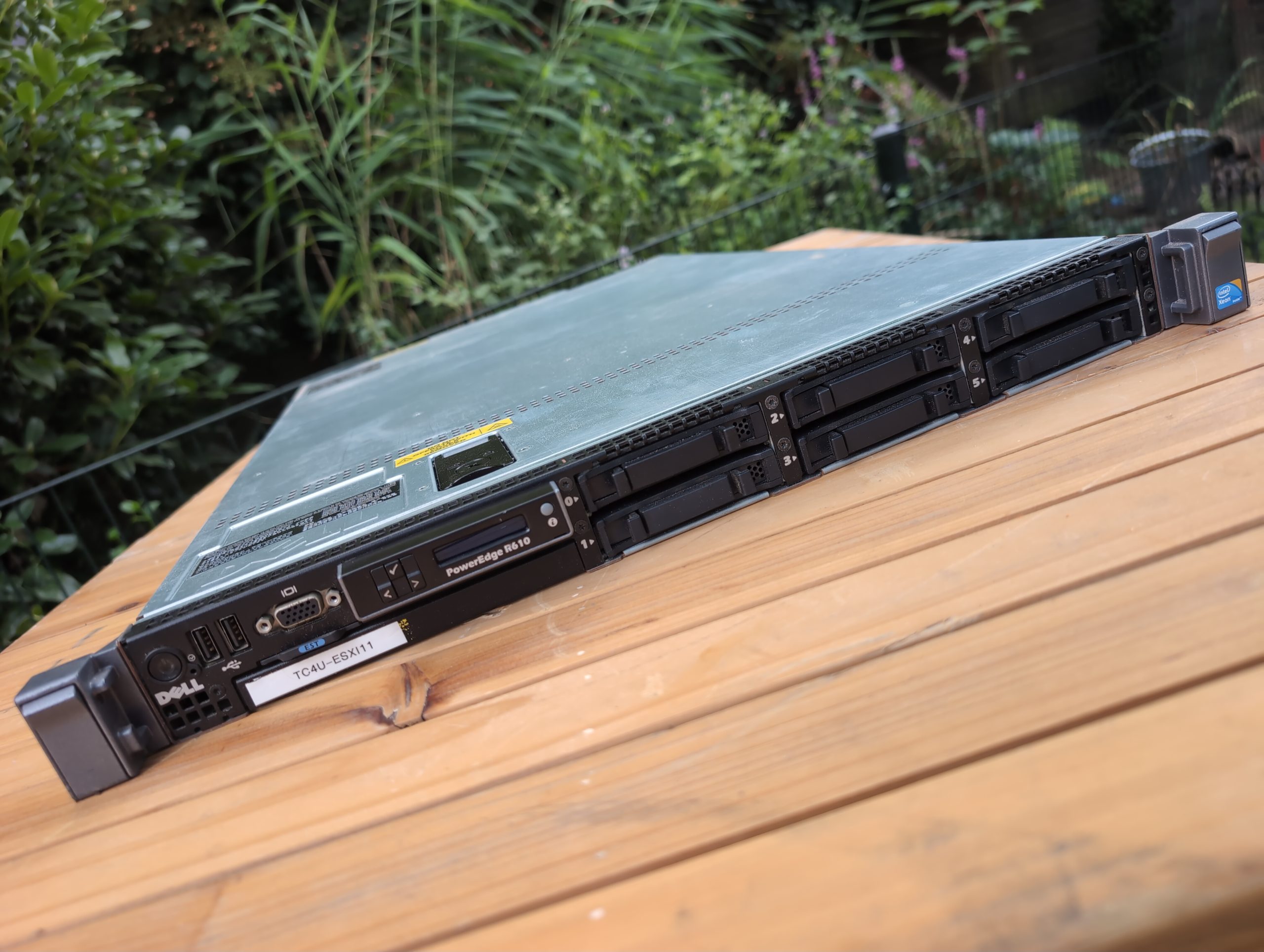

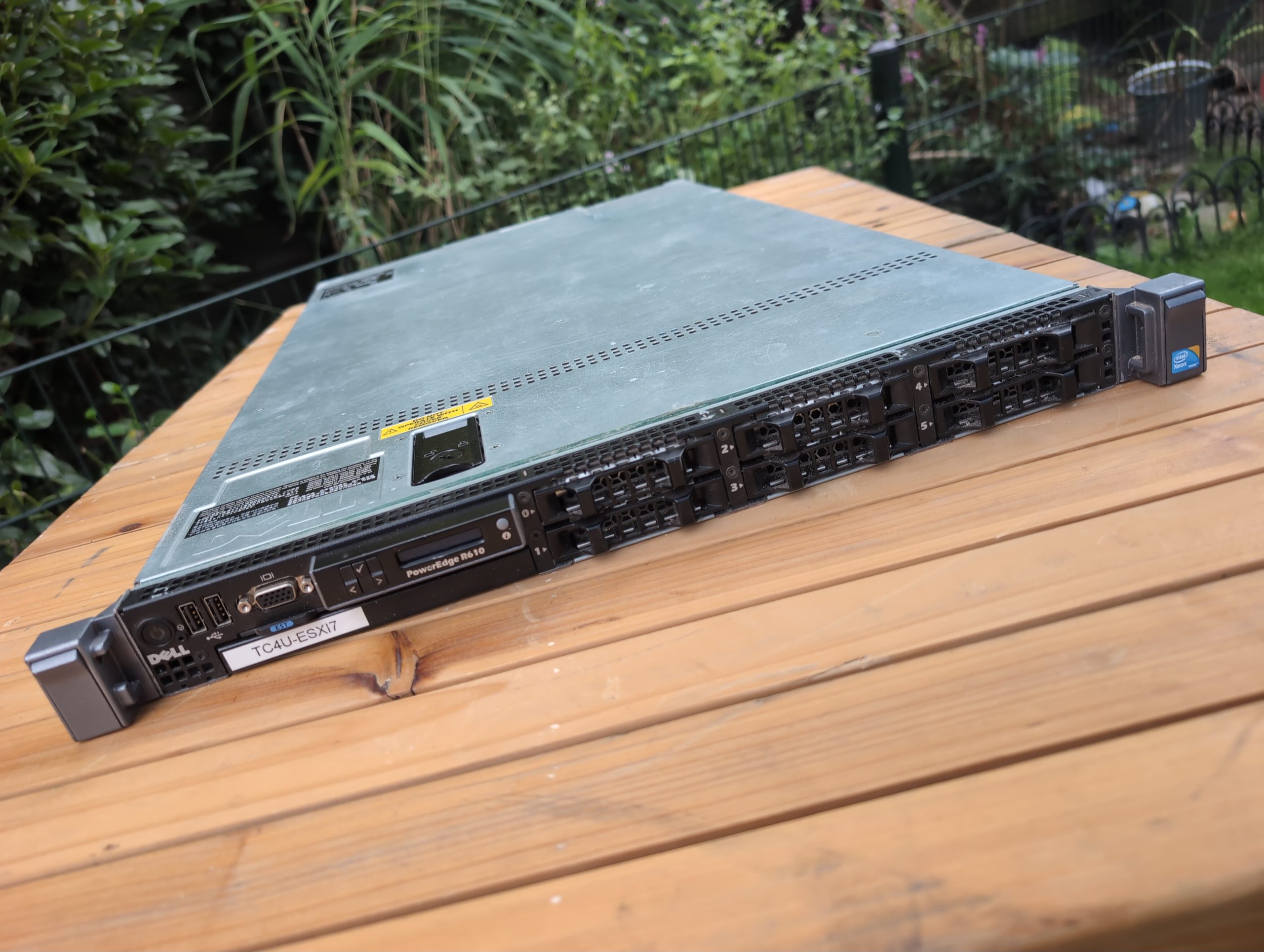

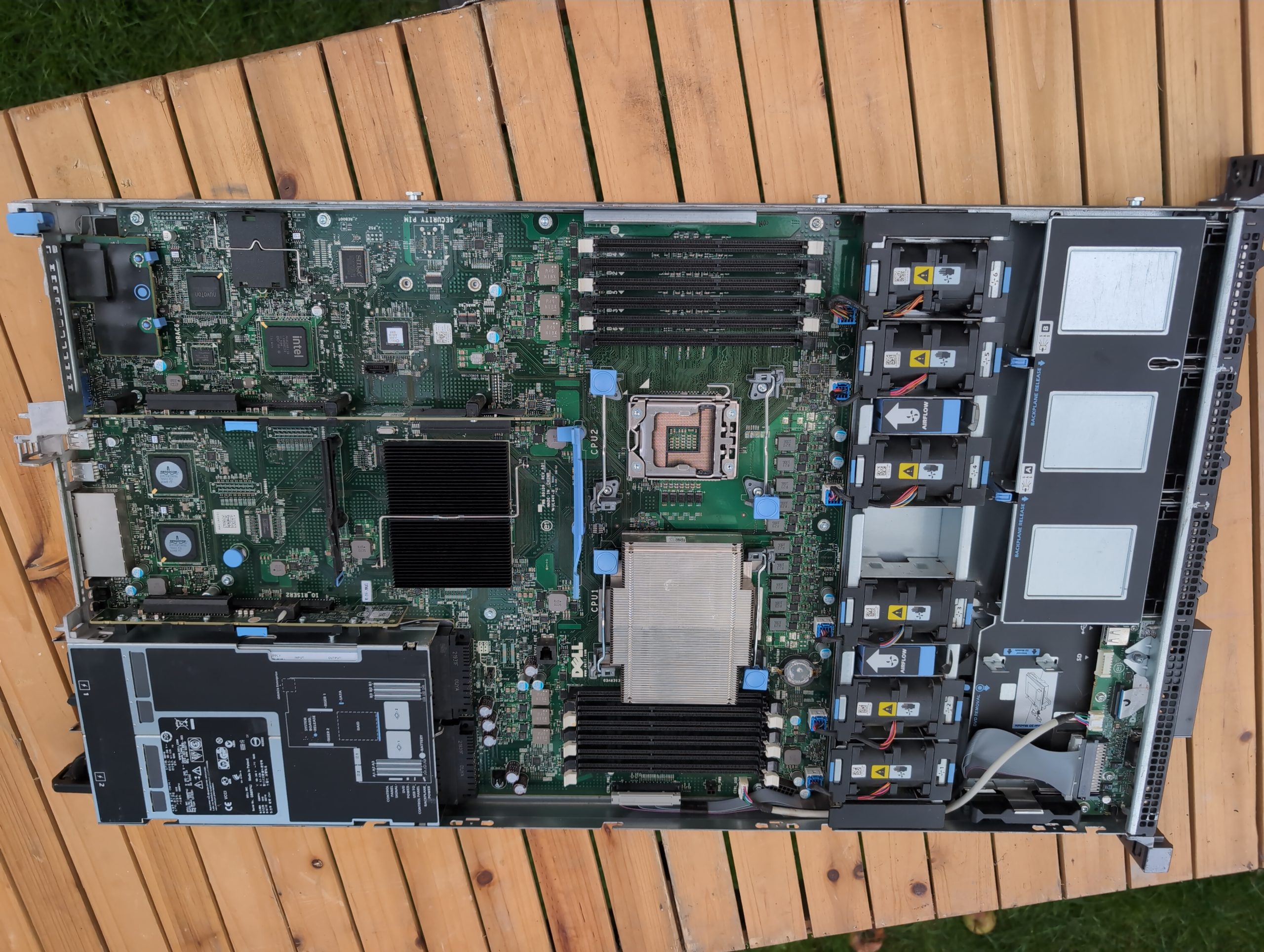

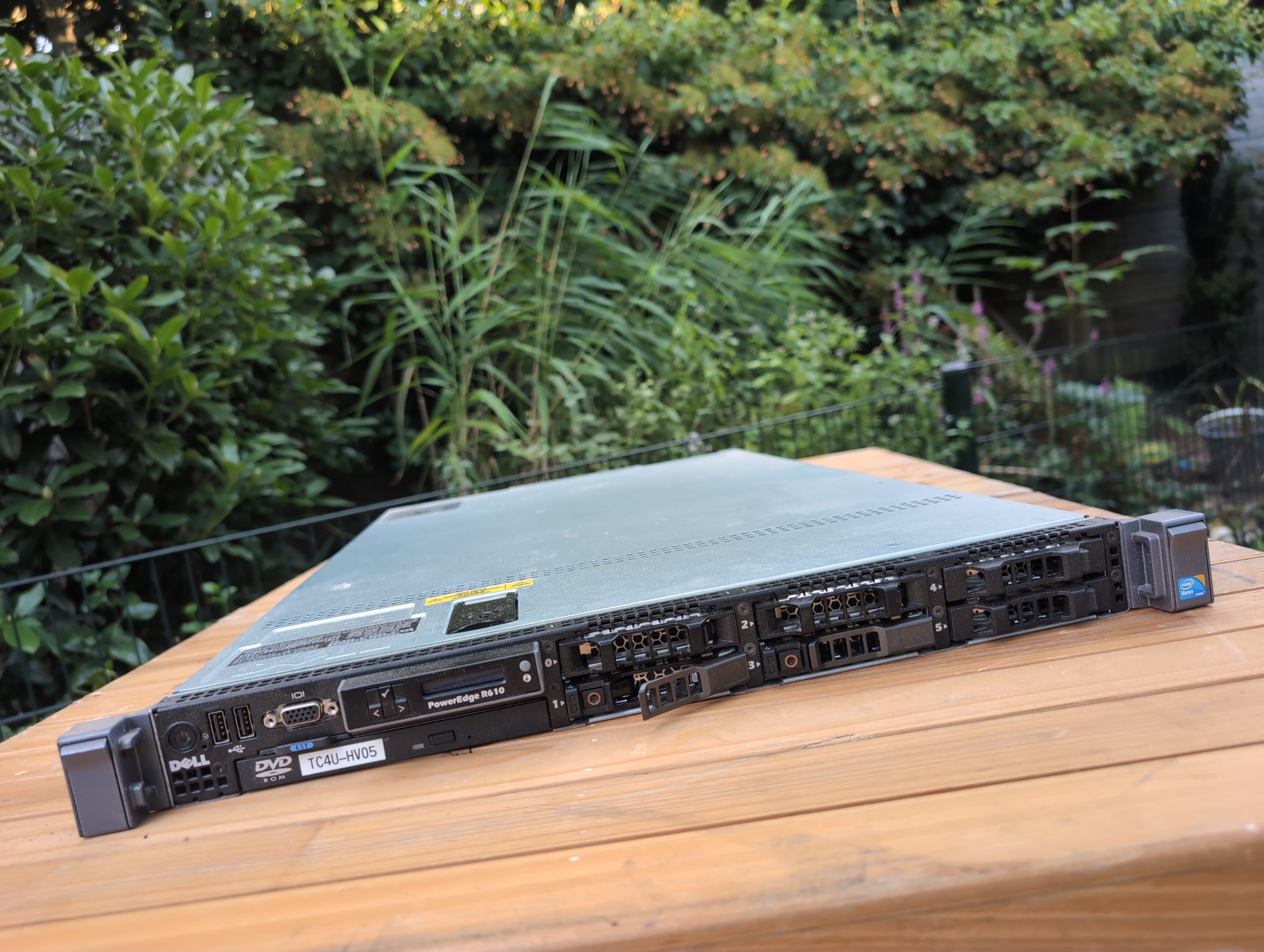

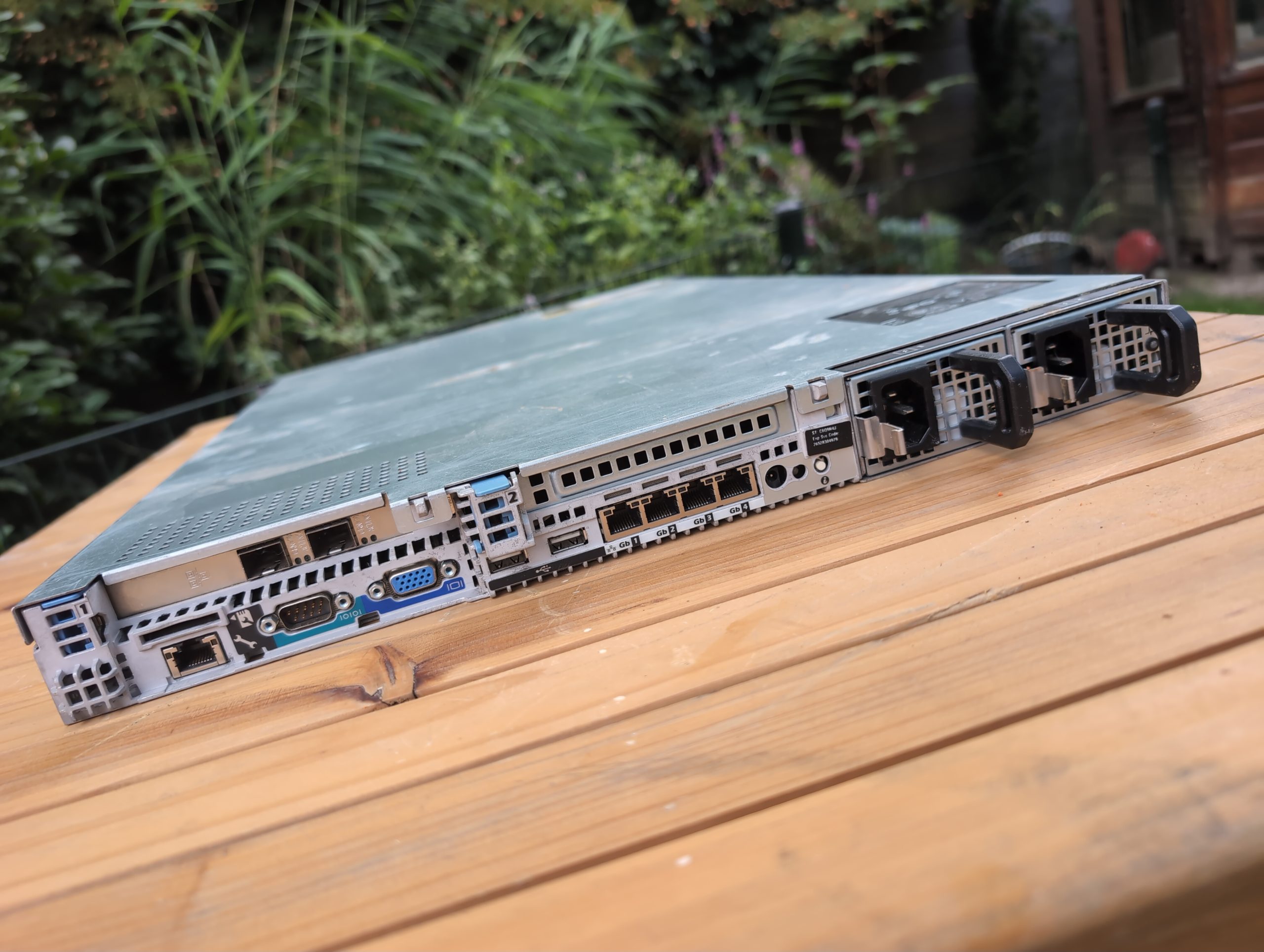

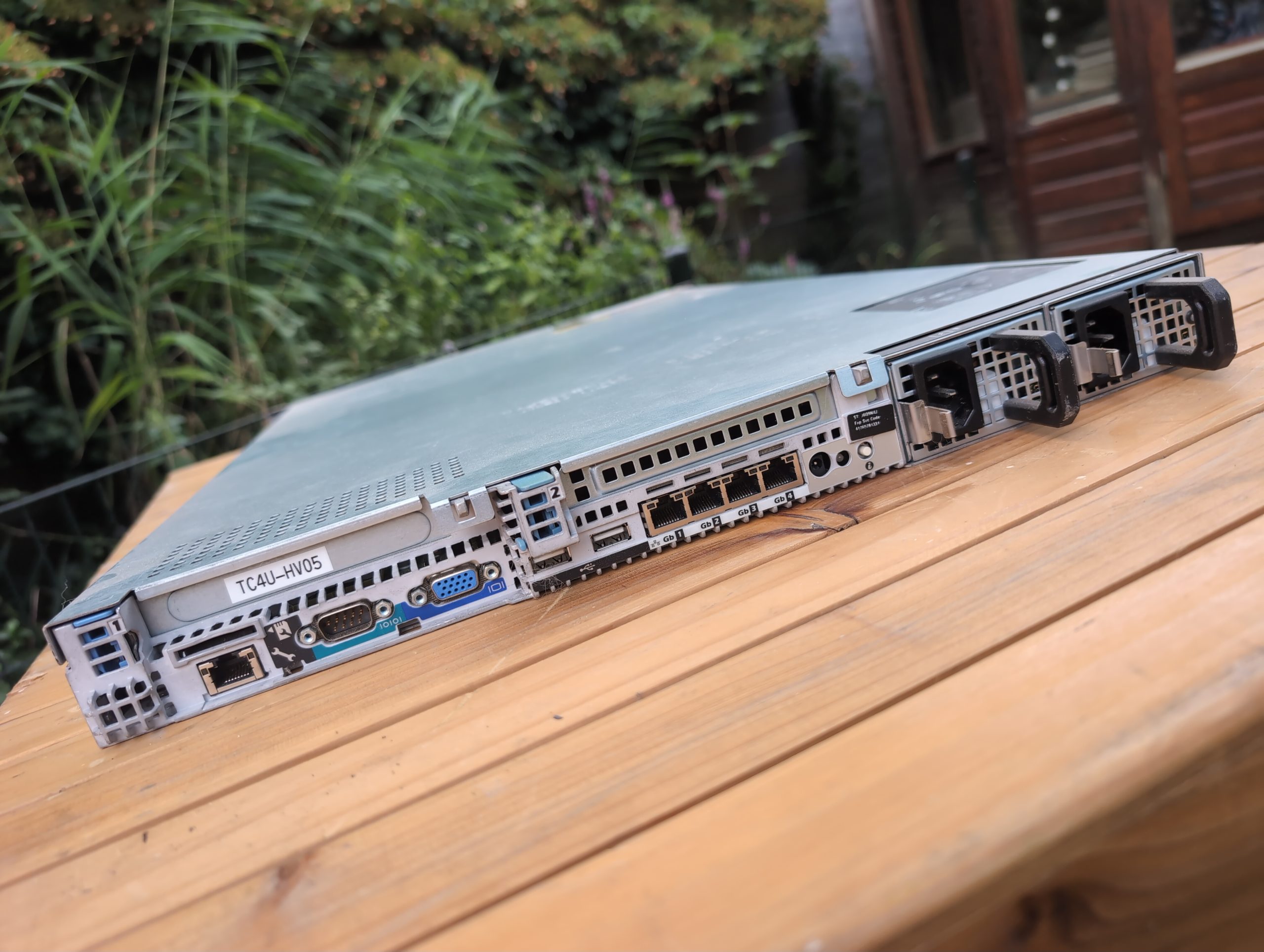

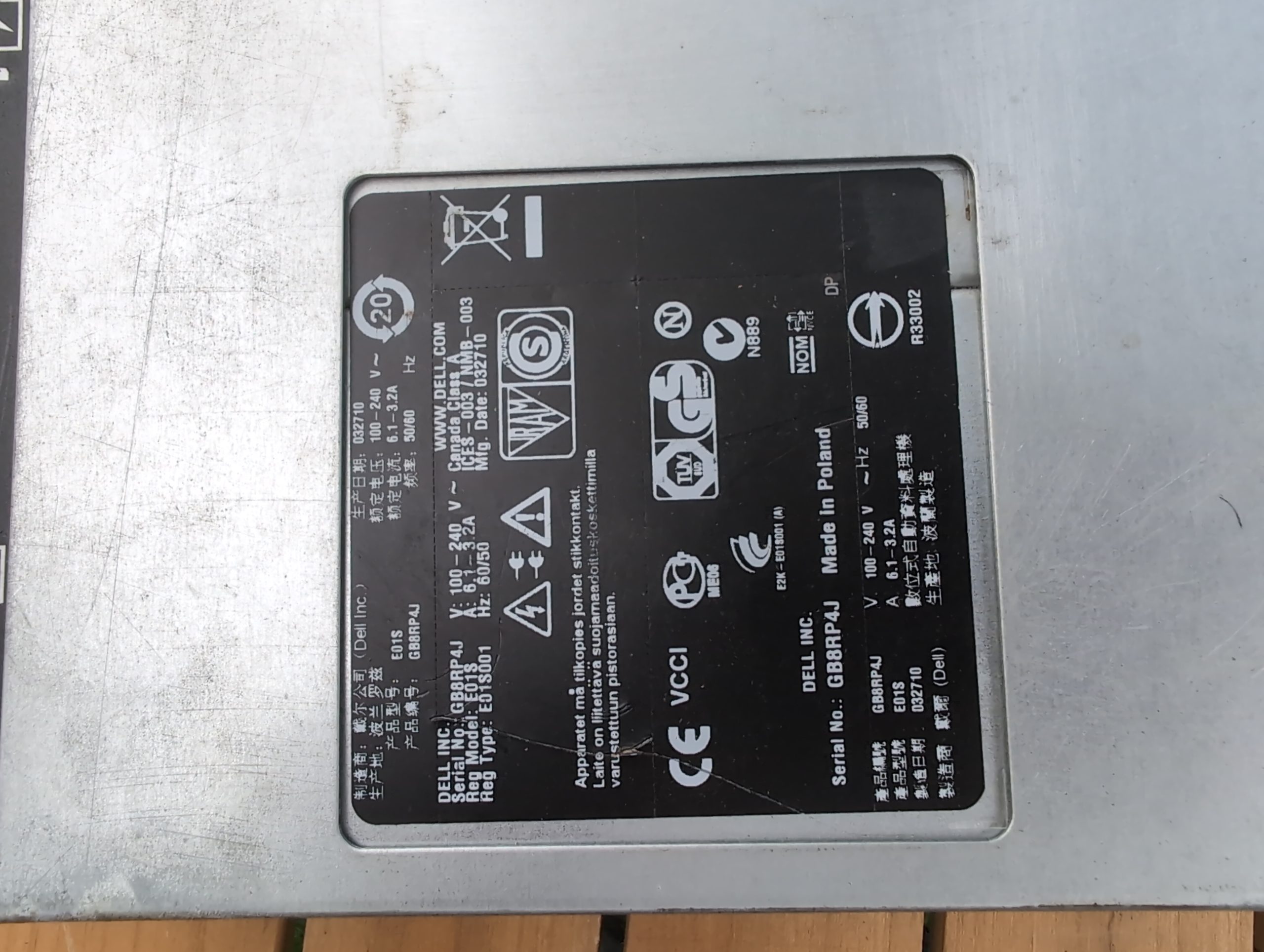

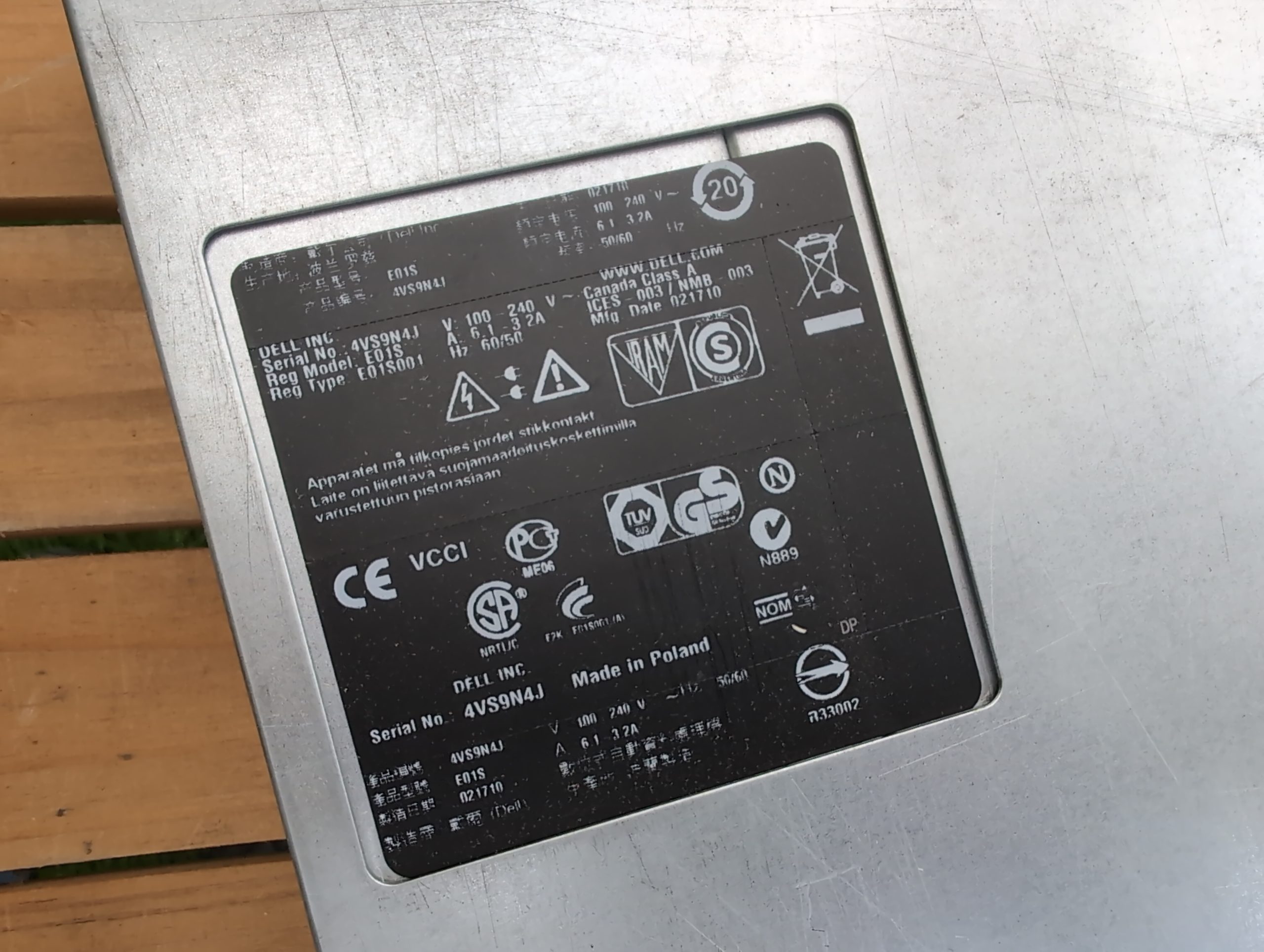

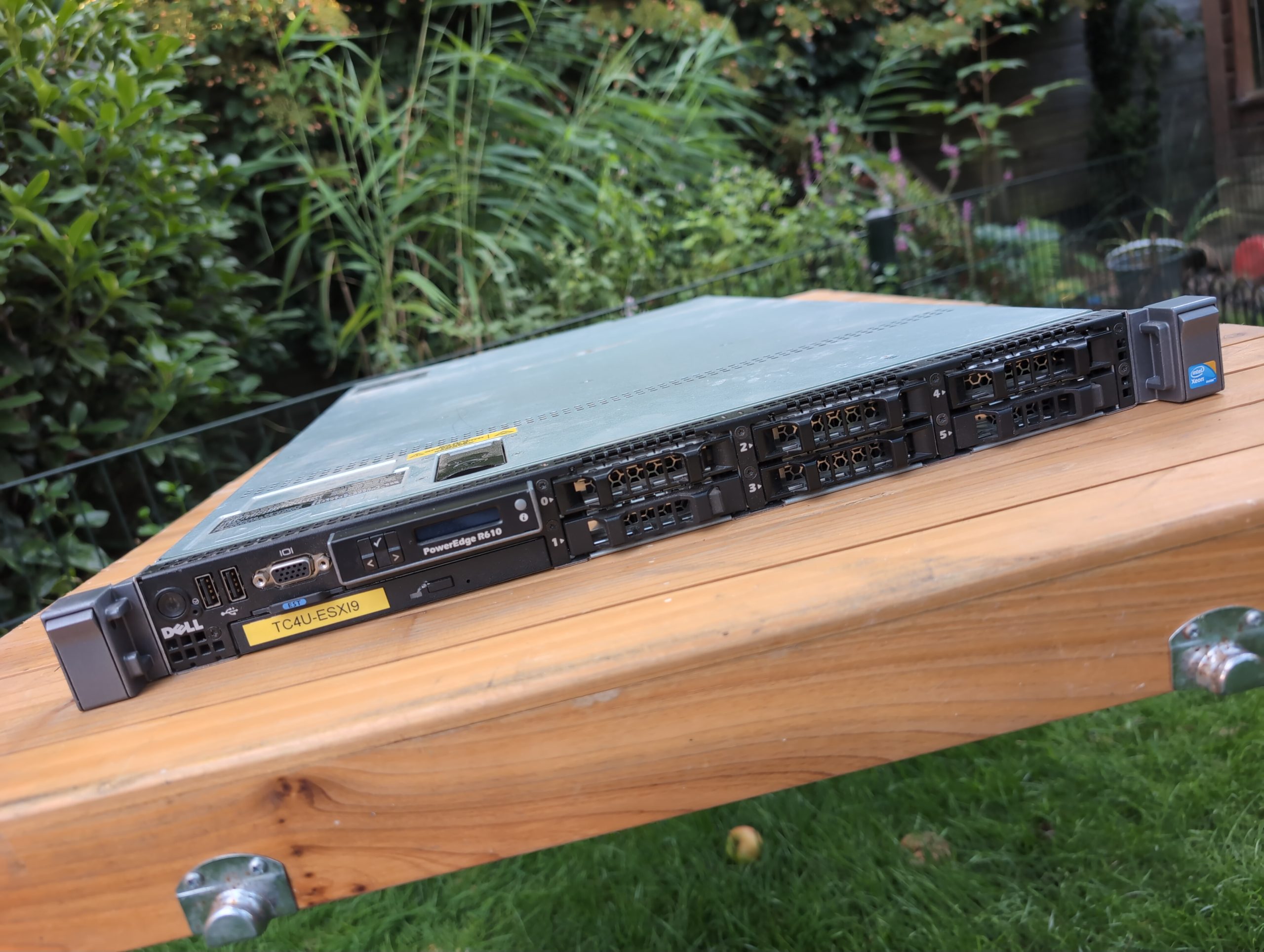

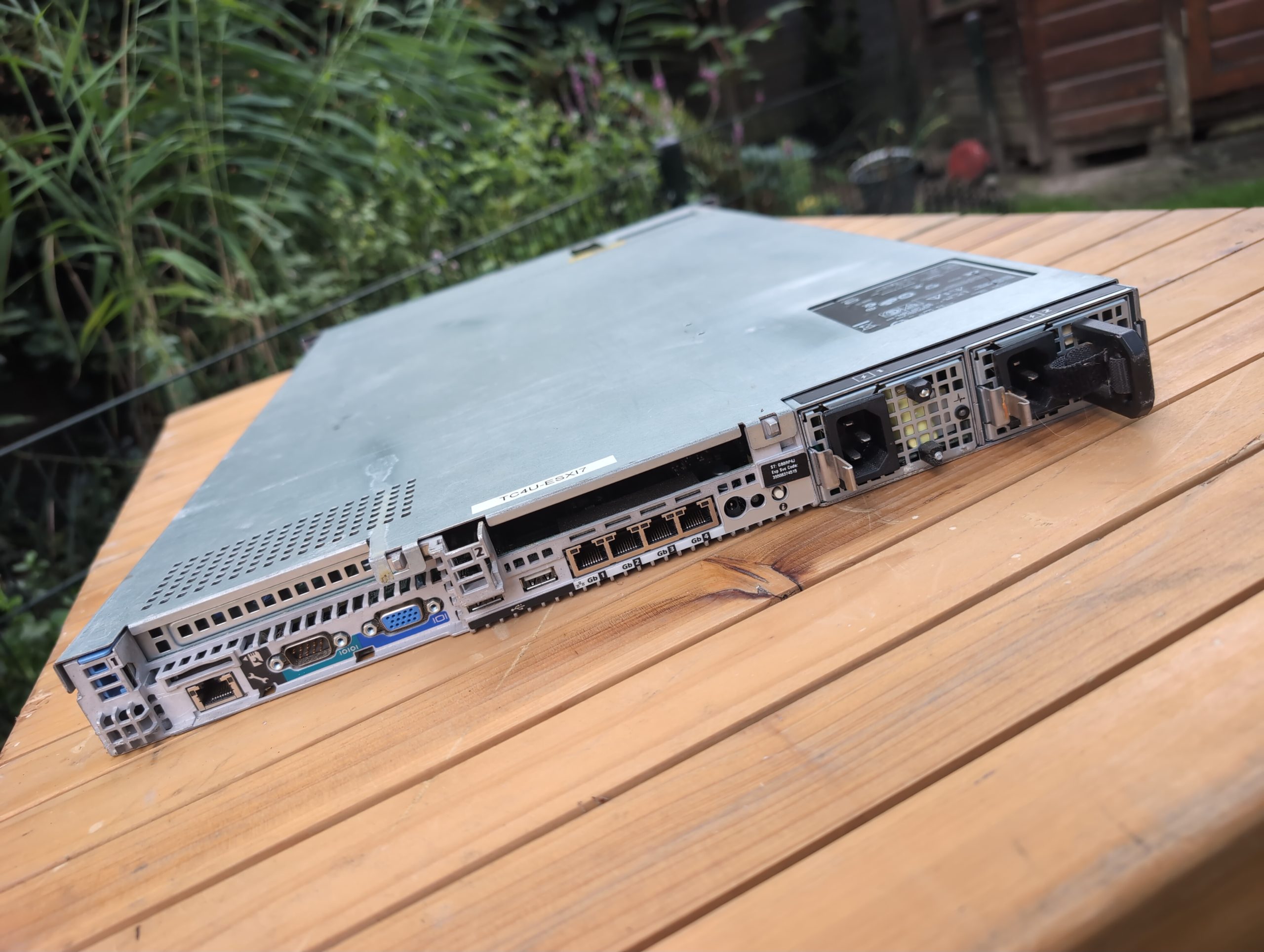

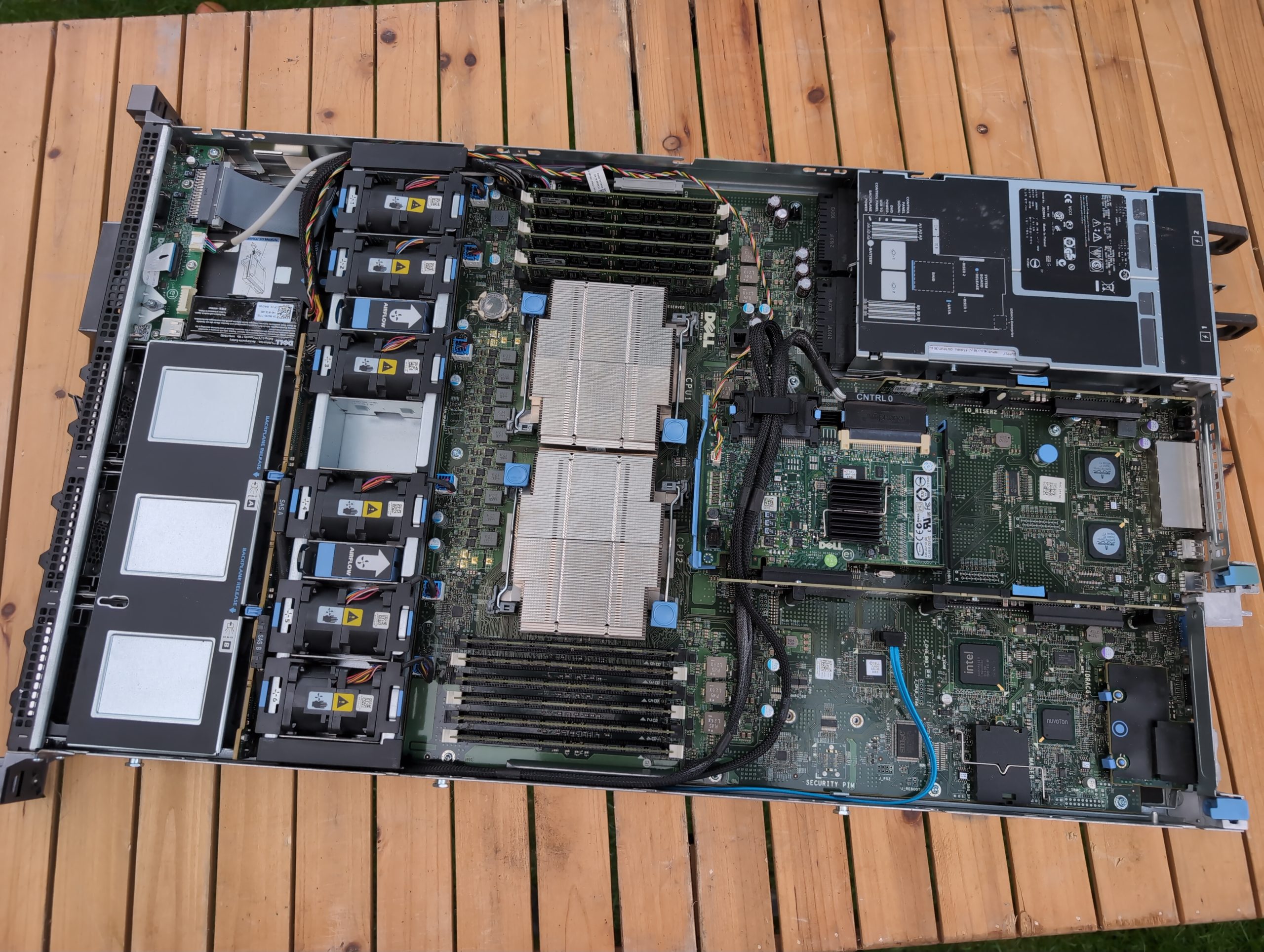

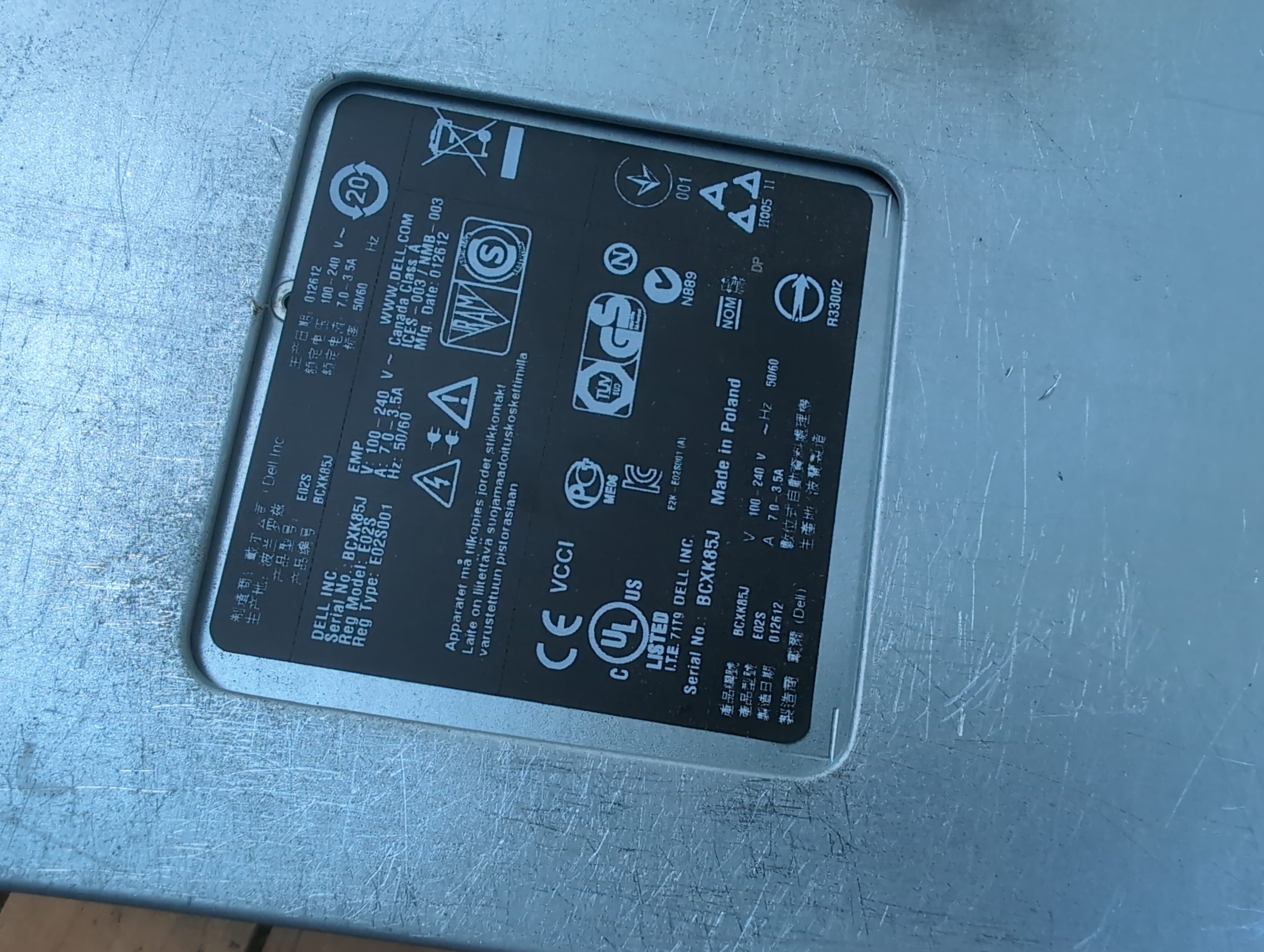

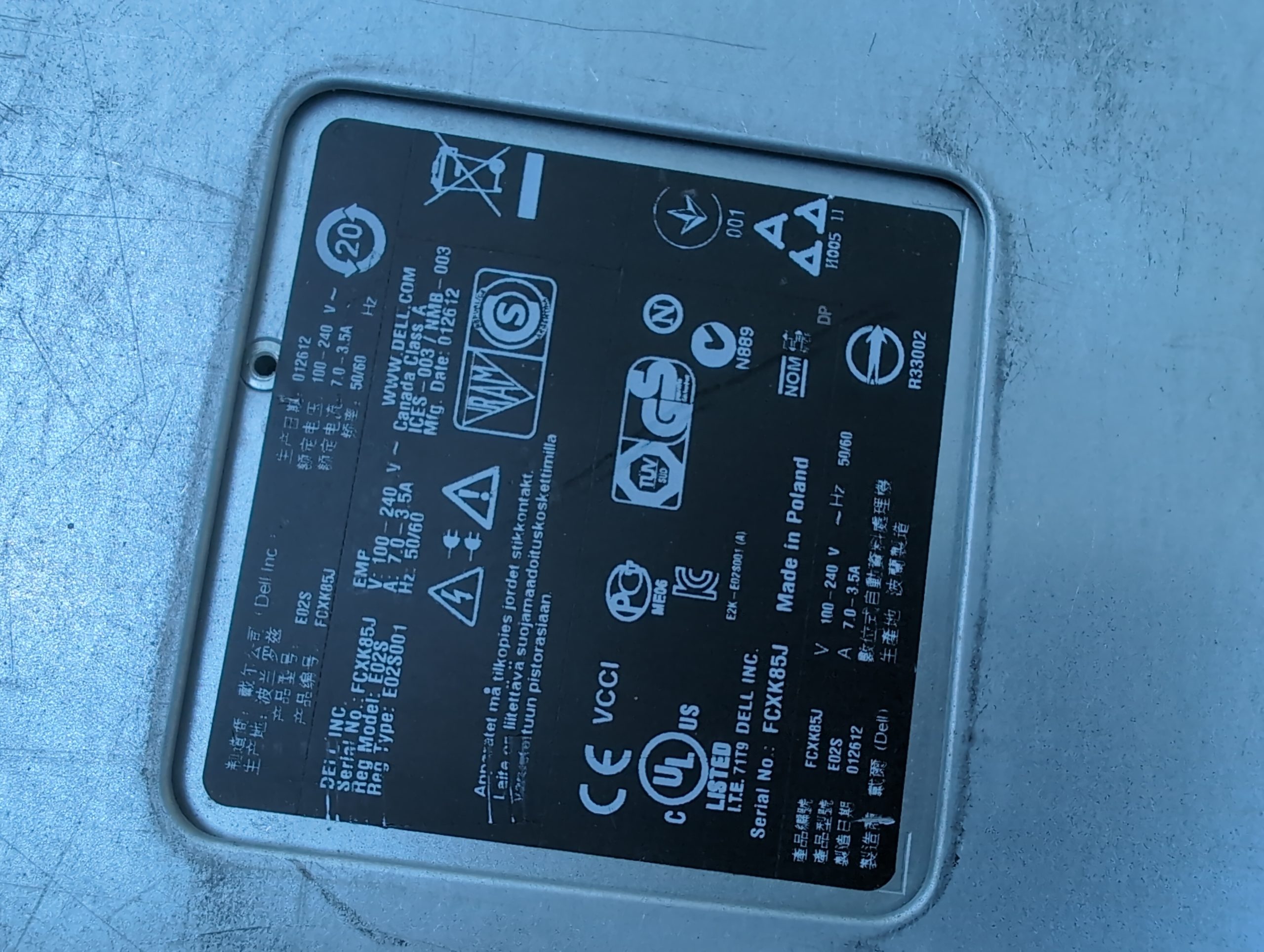

15 – Dell PowerEdge R610
16 – Dell PowerEdge R610
17 – Dell PowerEdge R610
18 – Dell PowerEdge R610

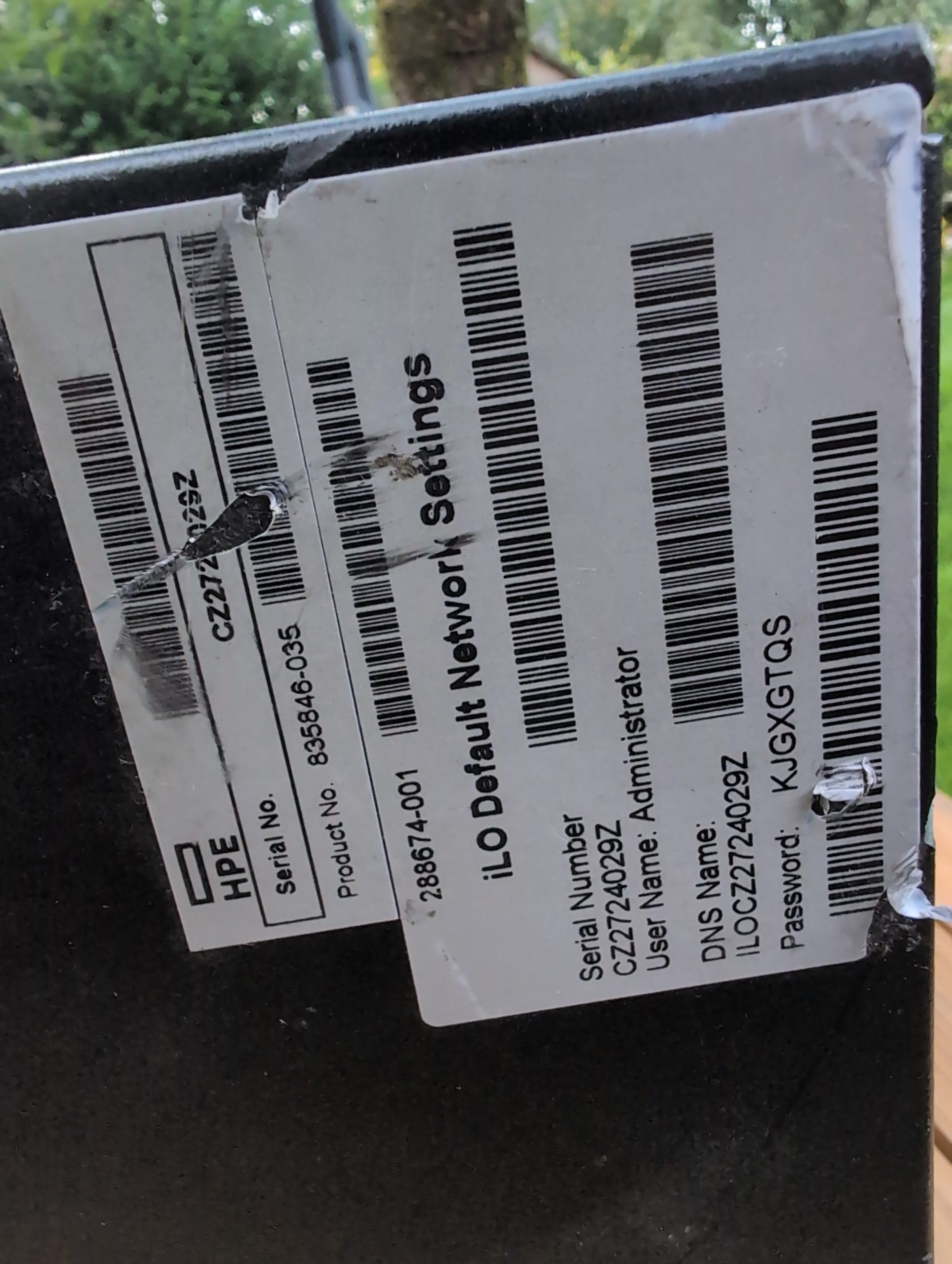

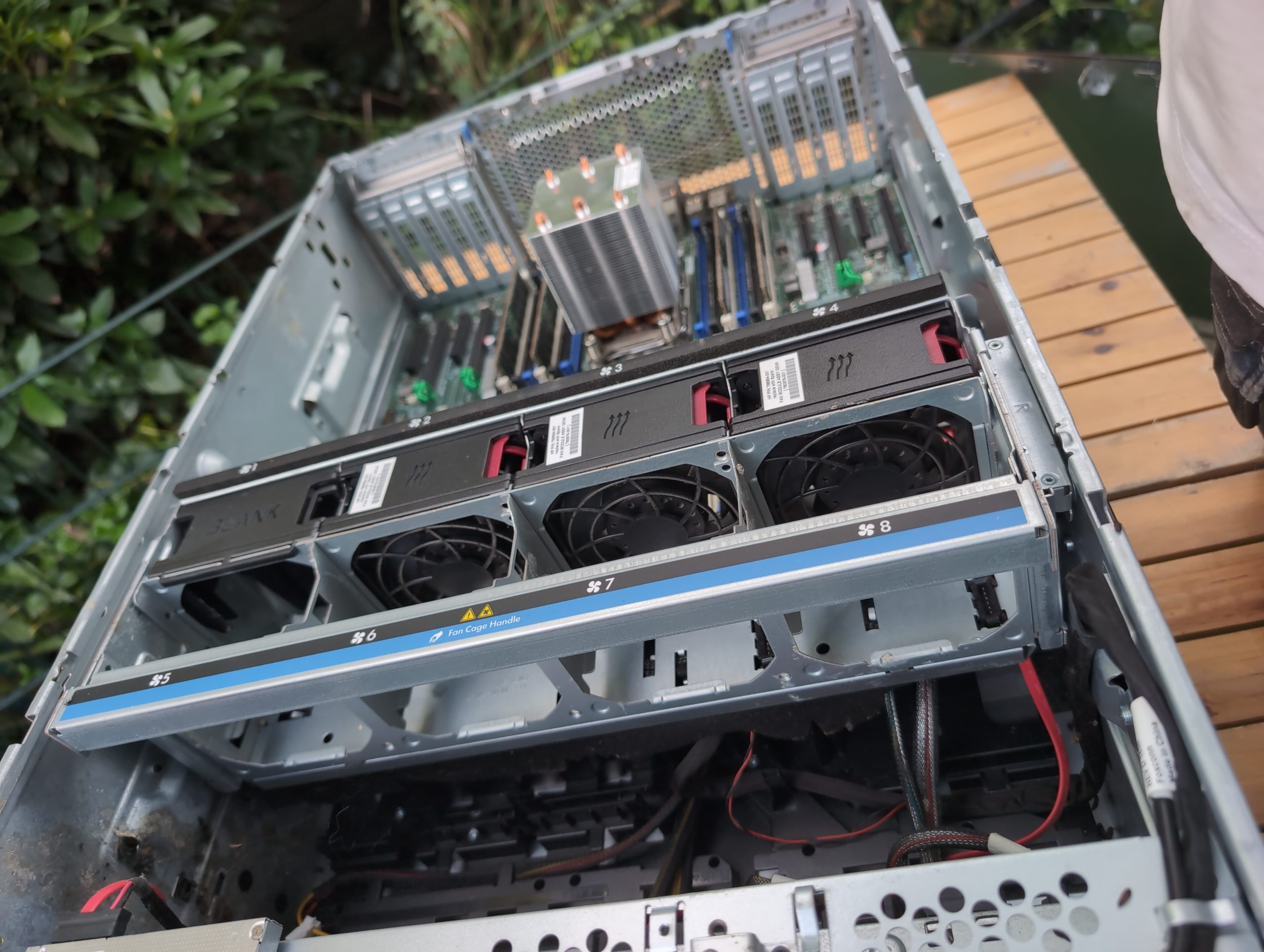

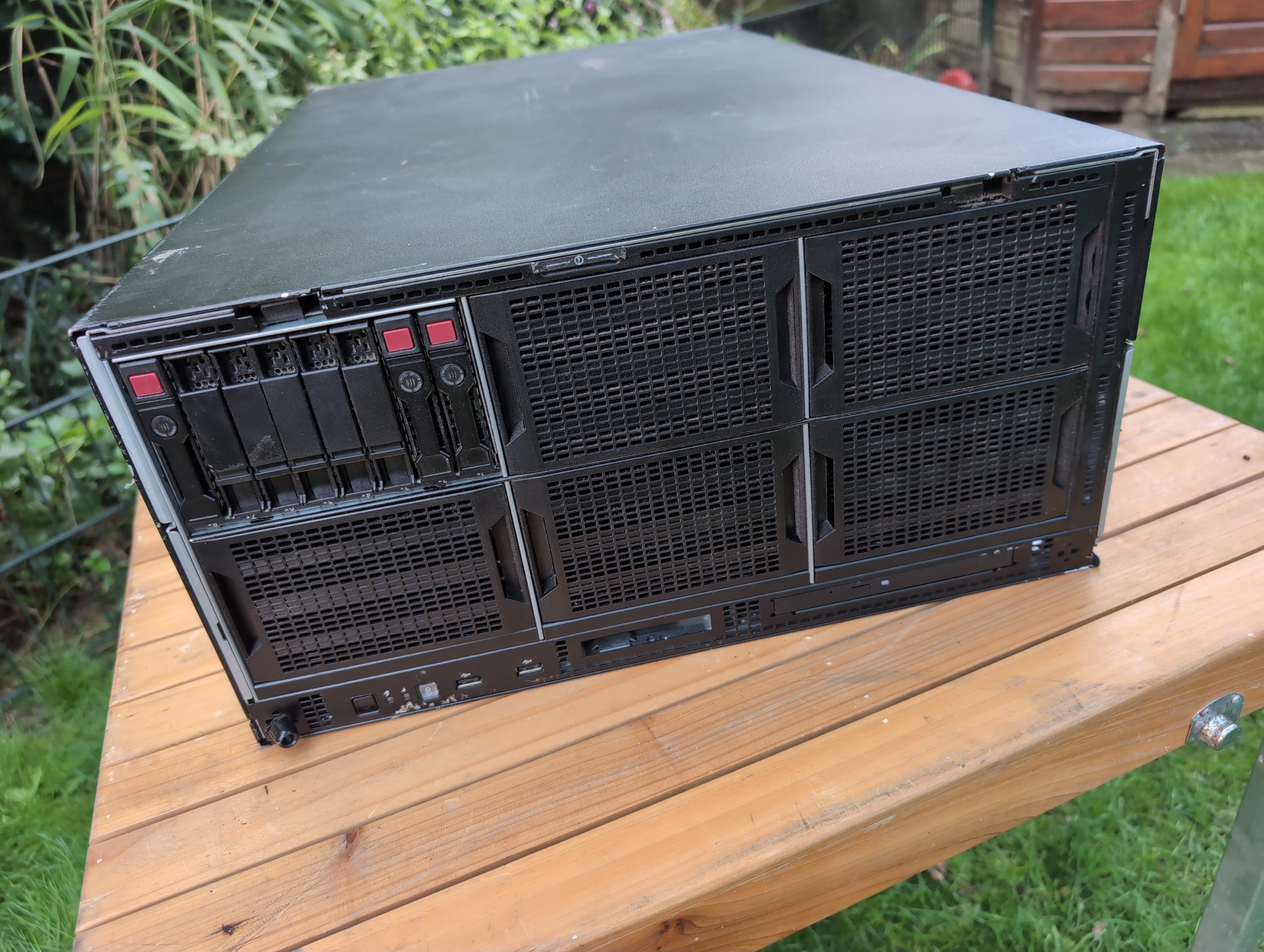

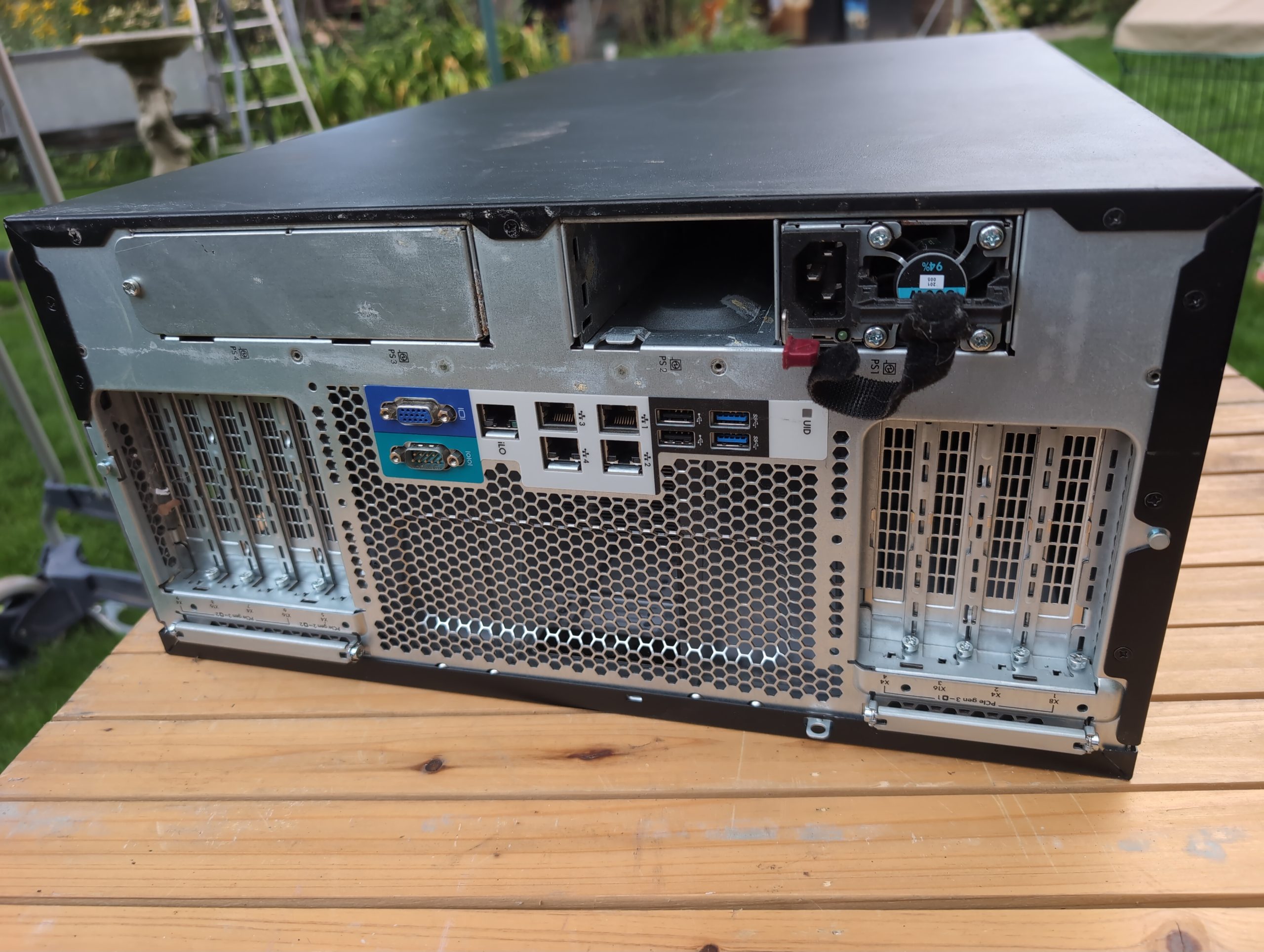

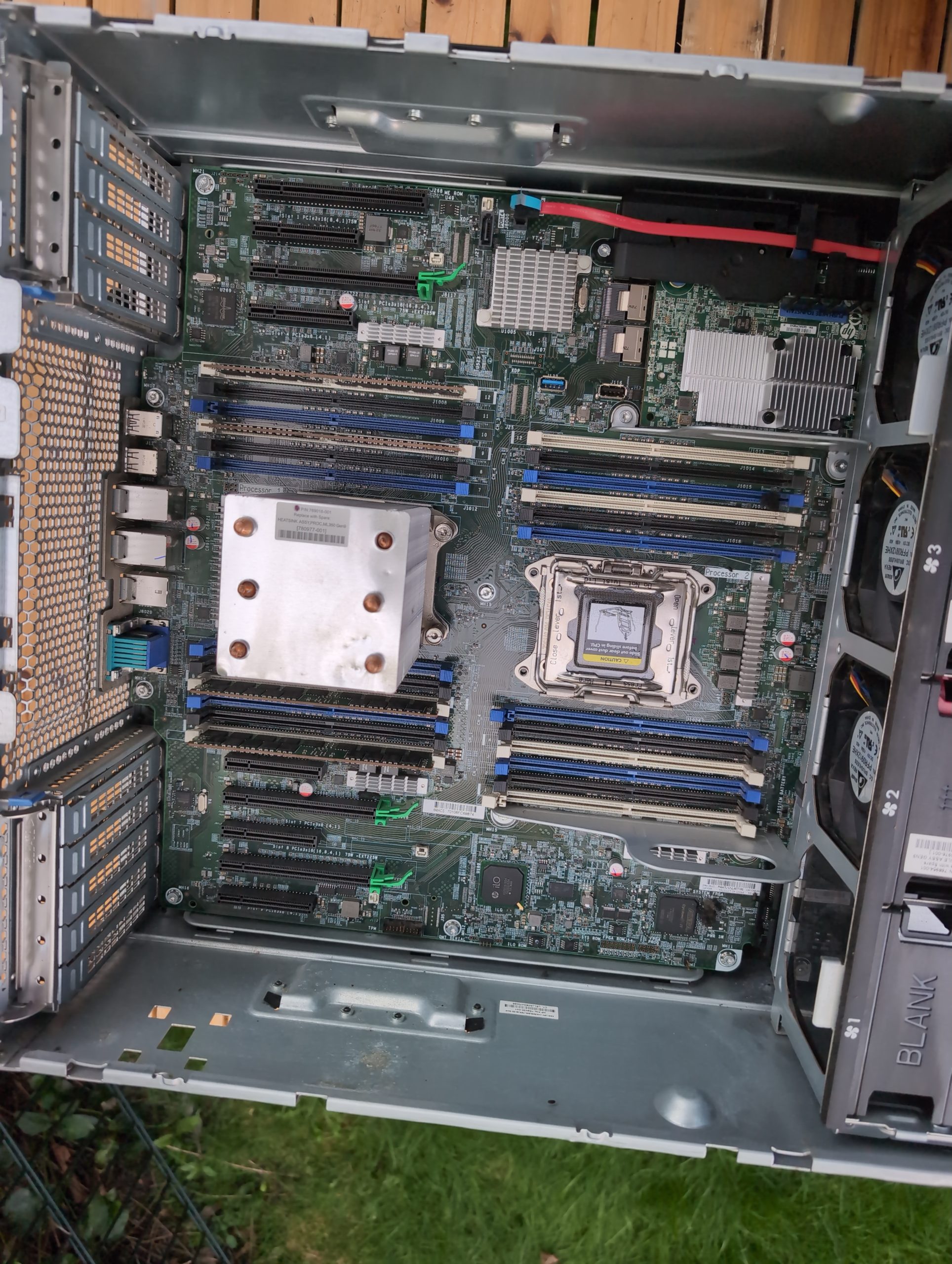

19 – HP Proliant ML350 Gen9

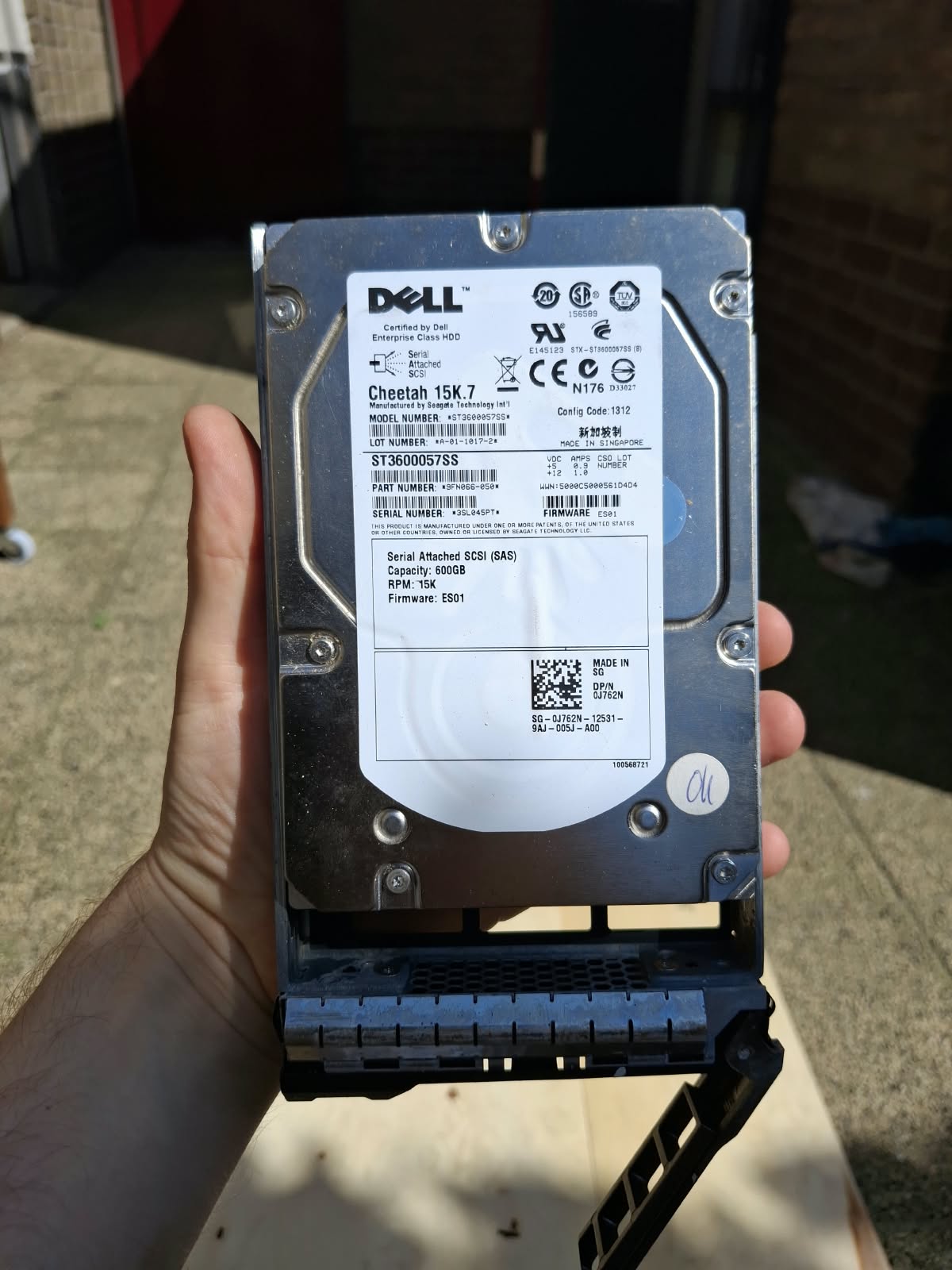

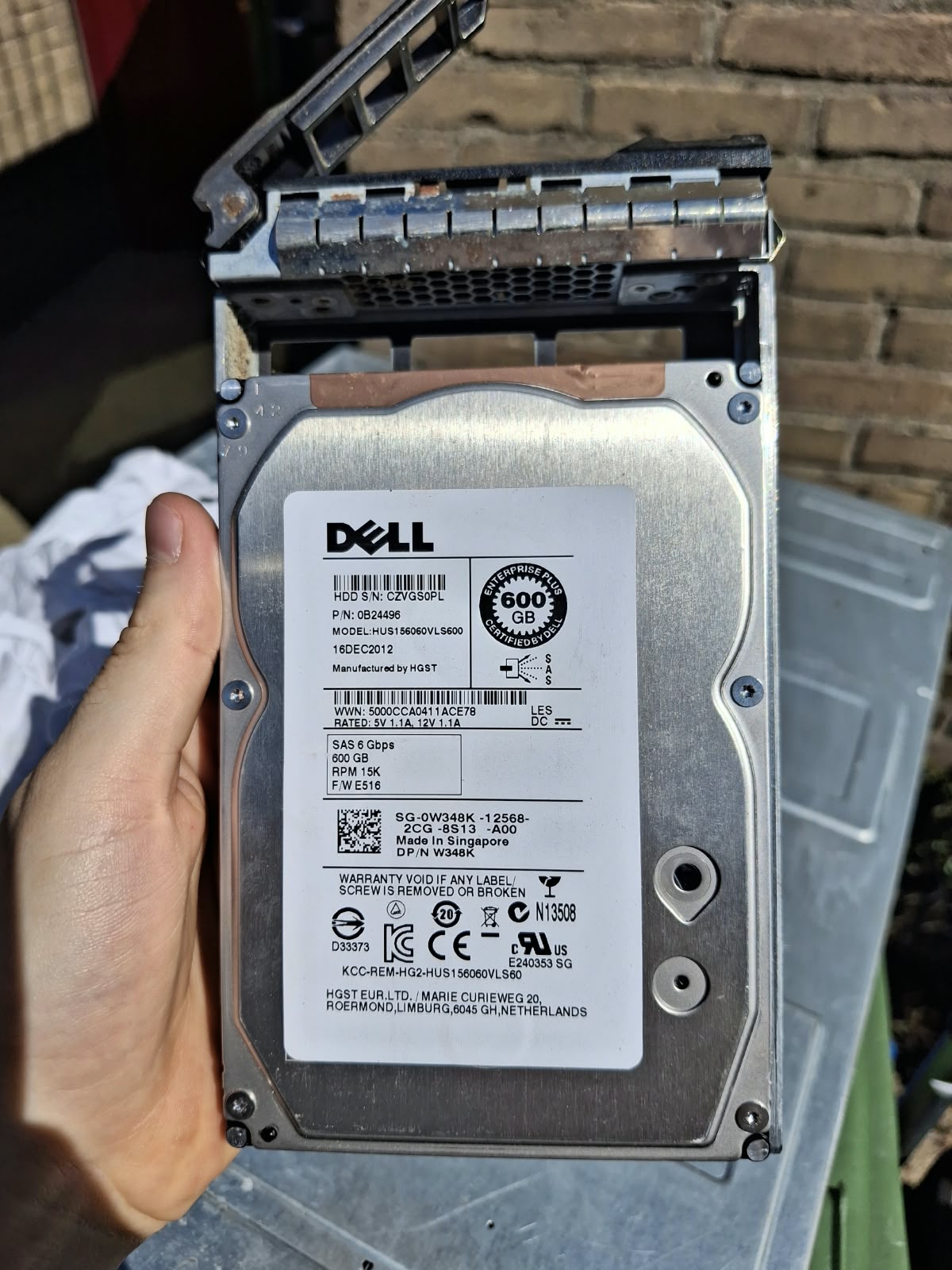

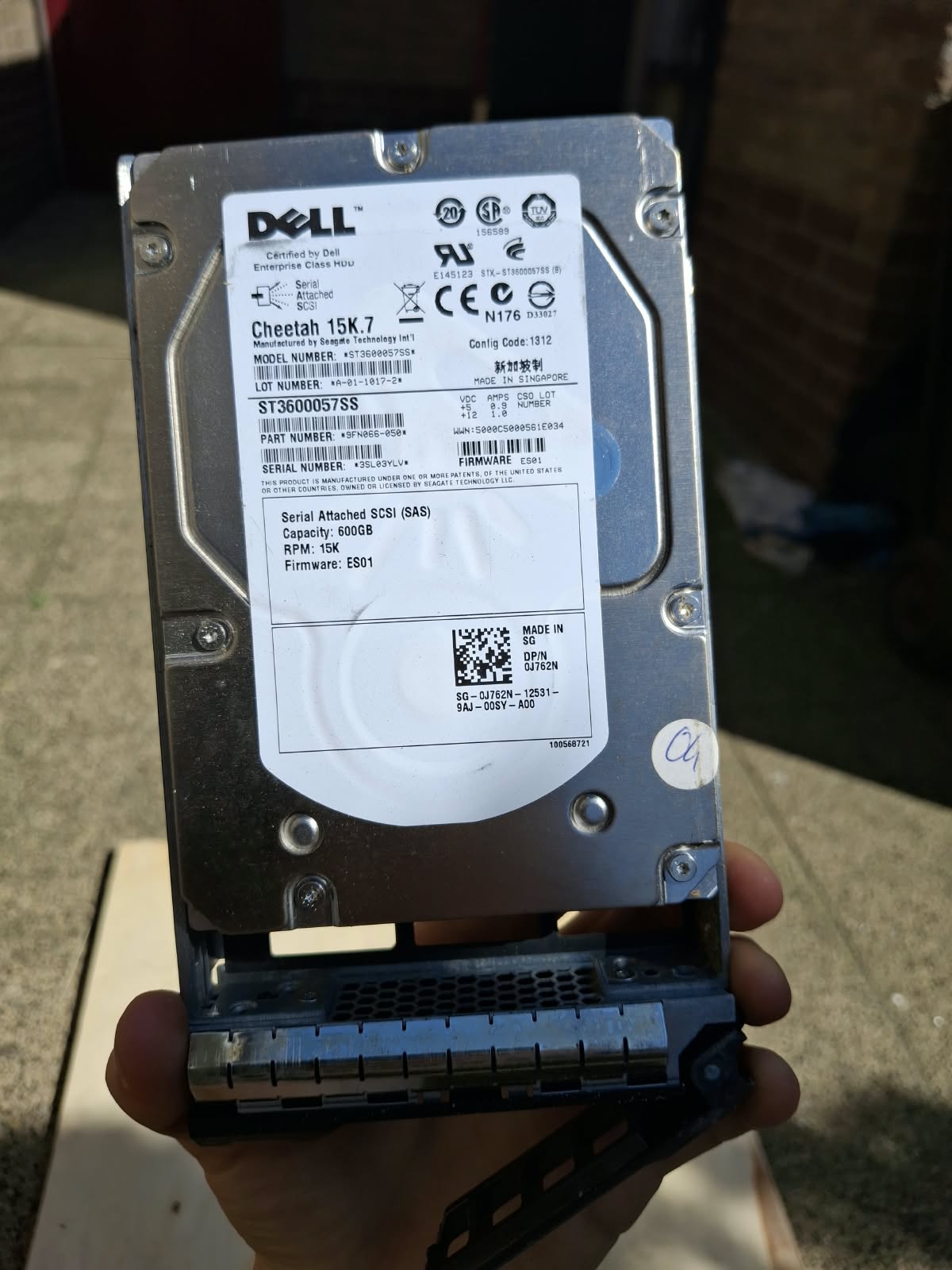

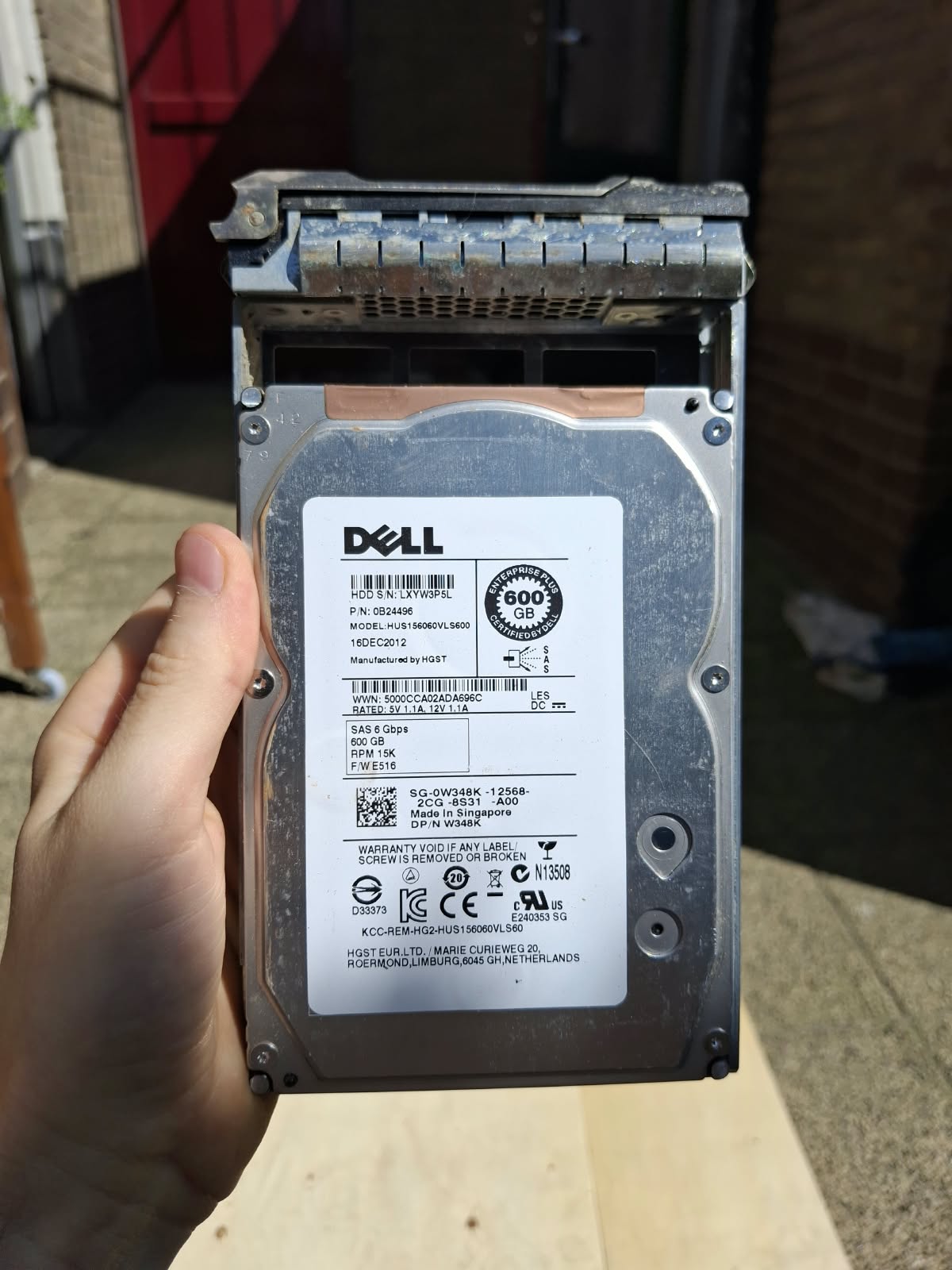

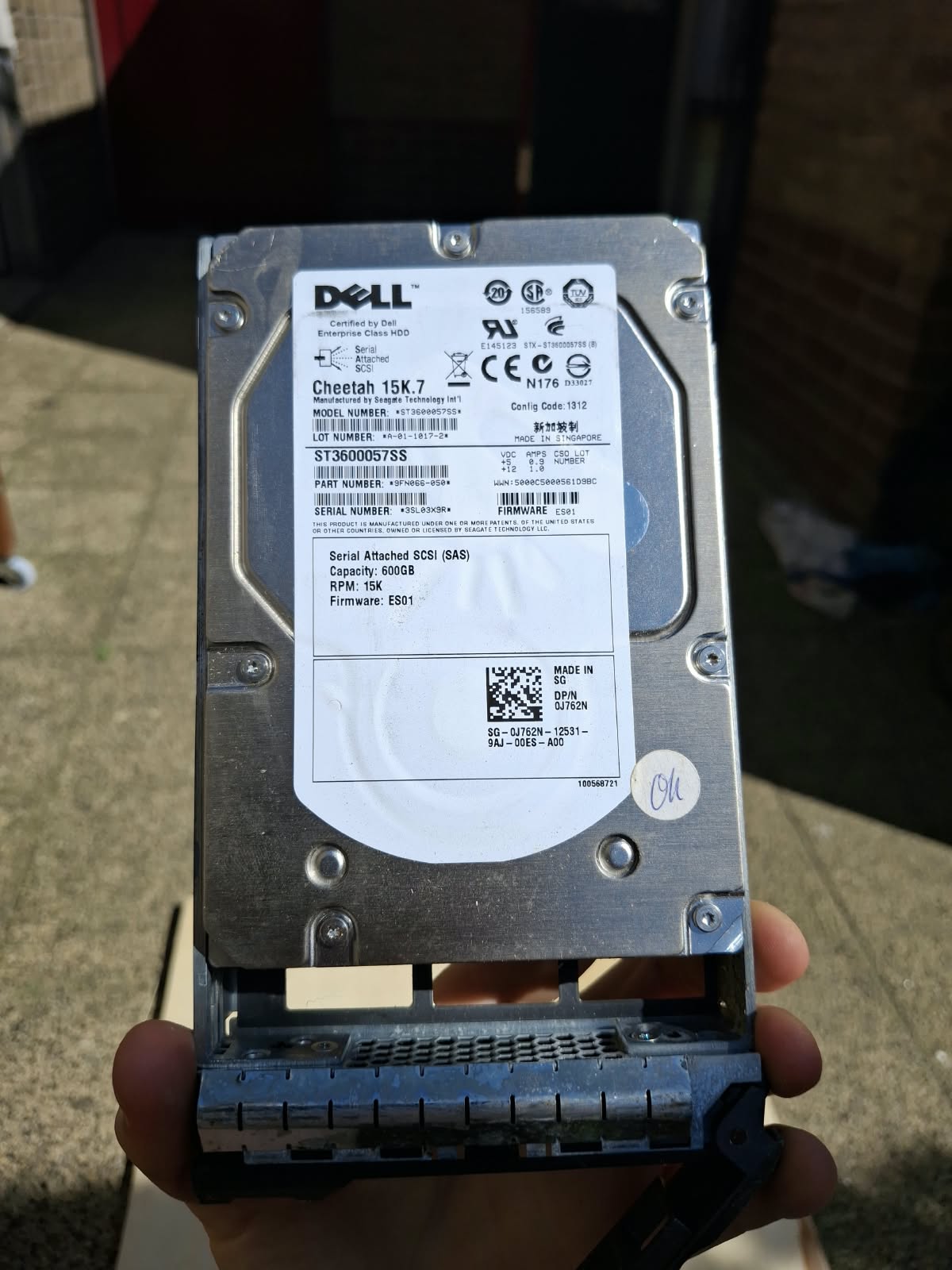

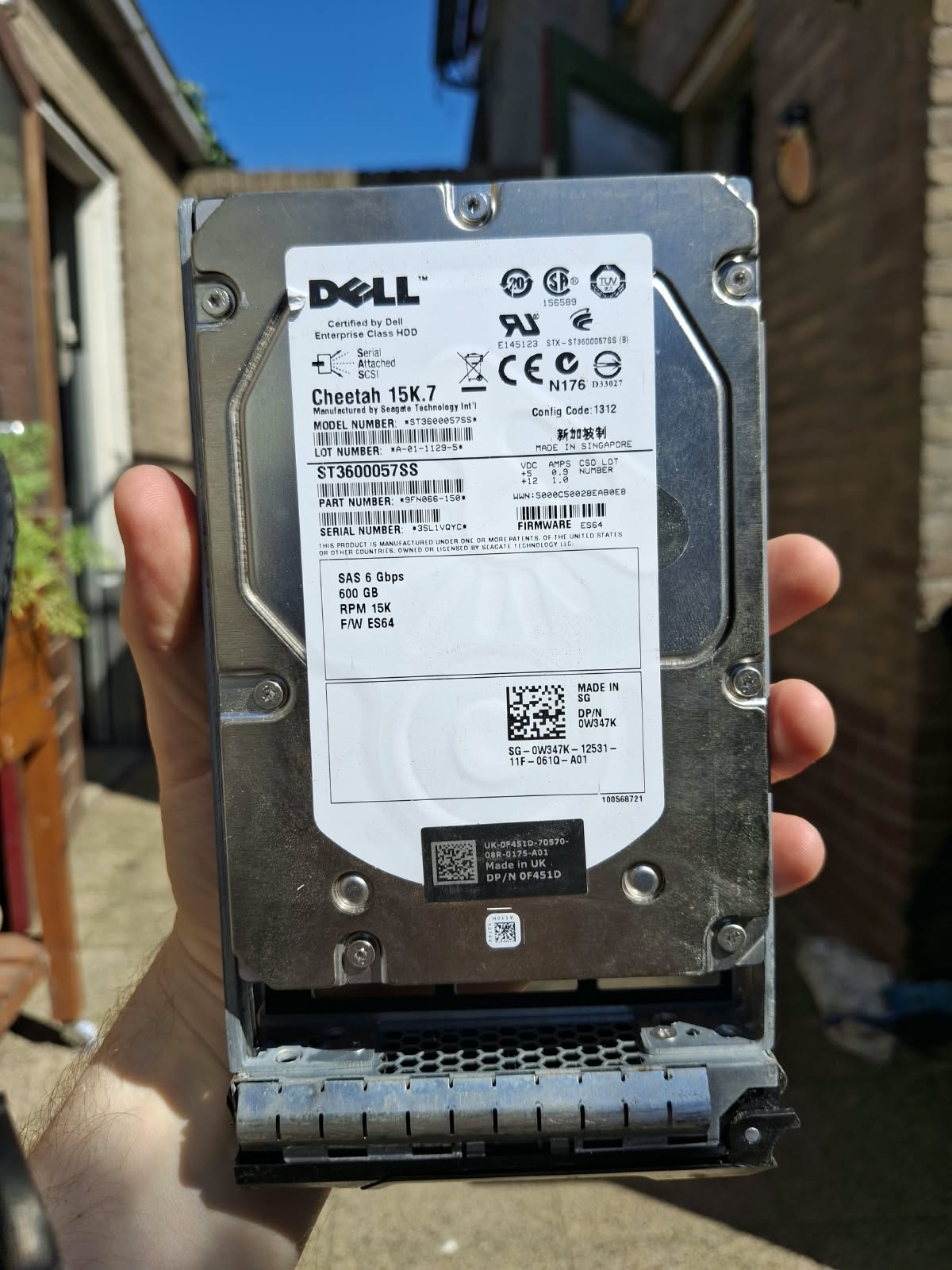

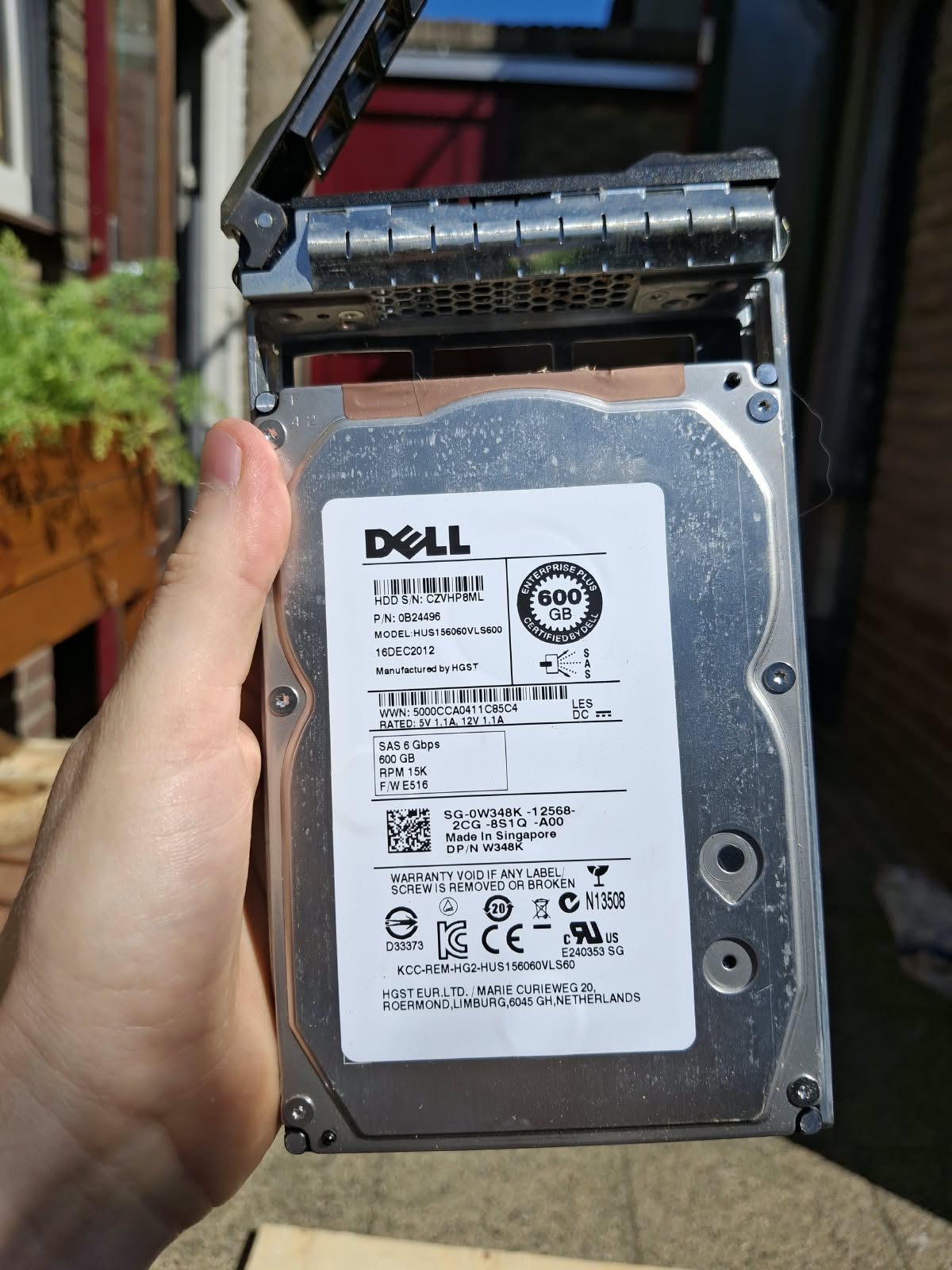

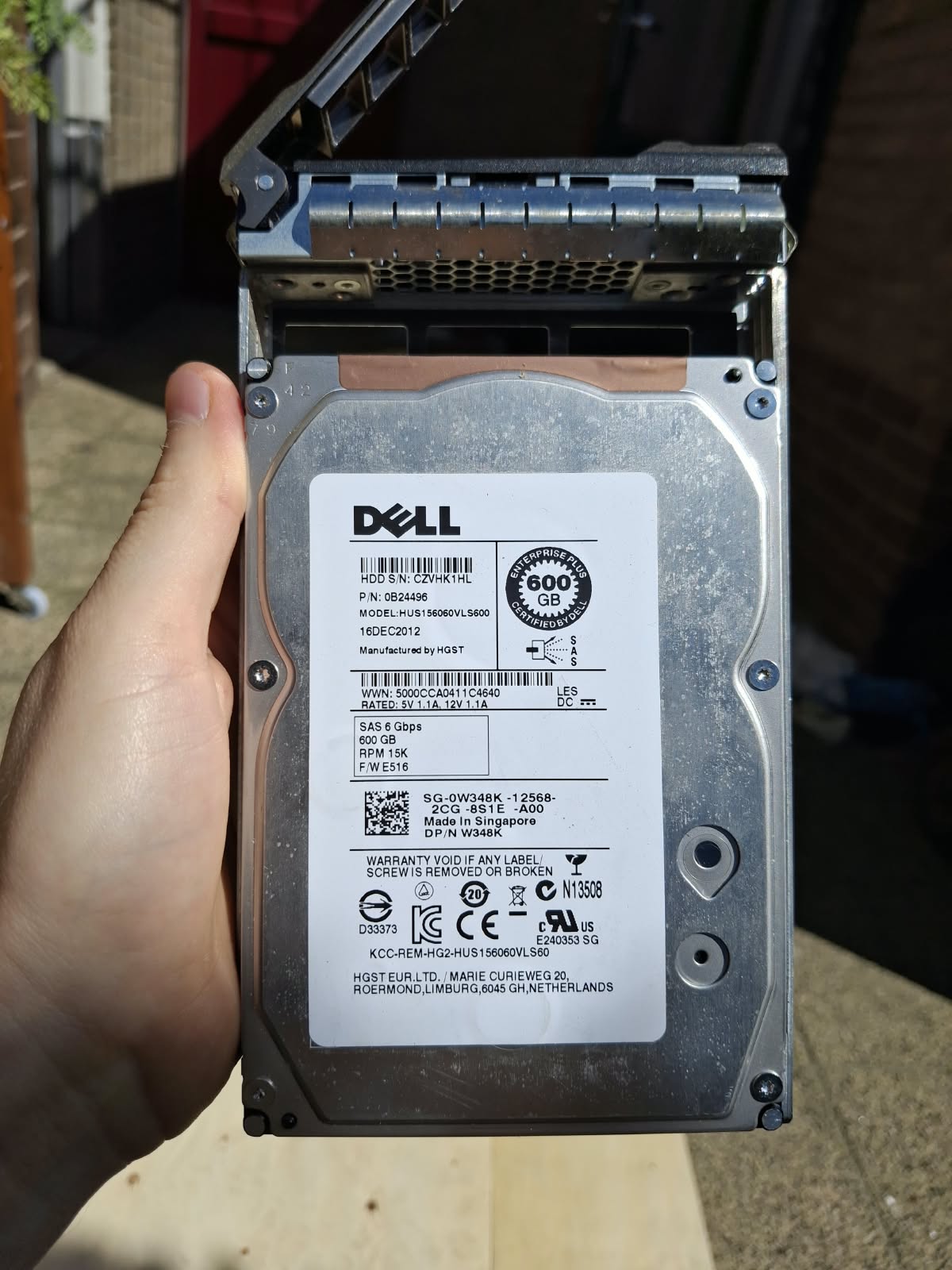

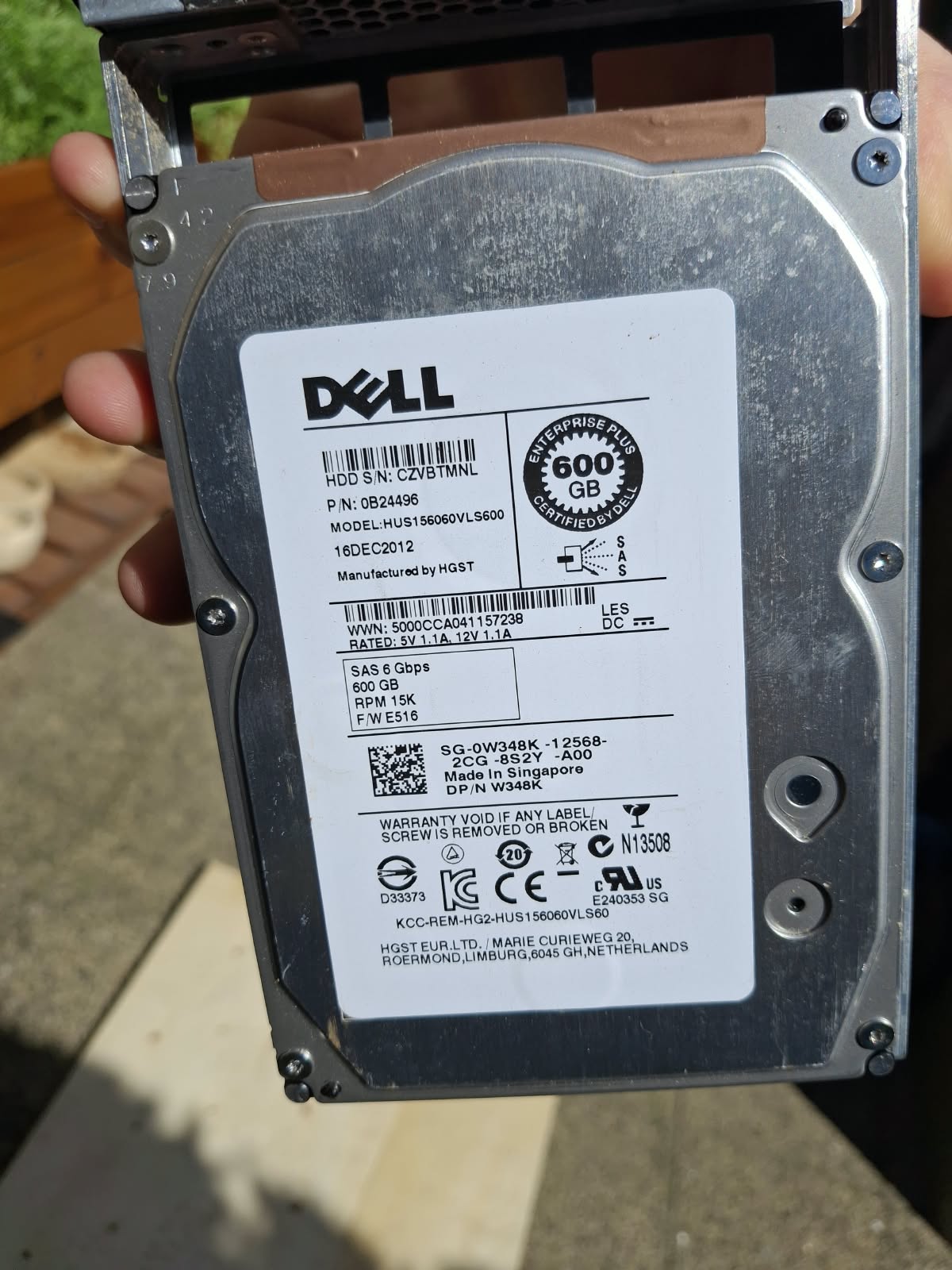

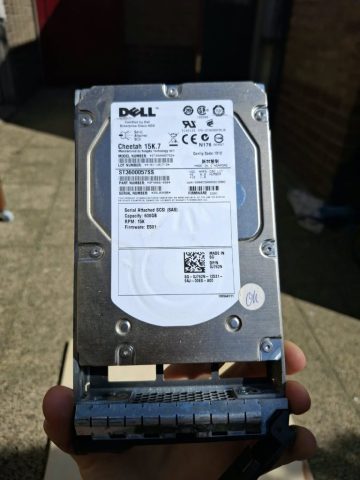

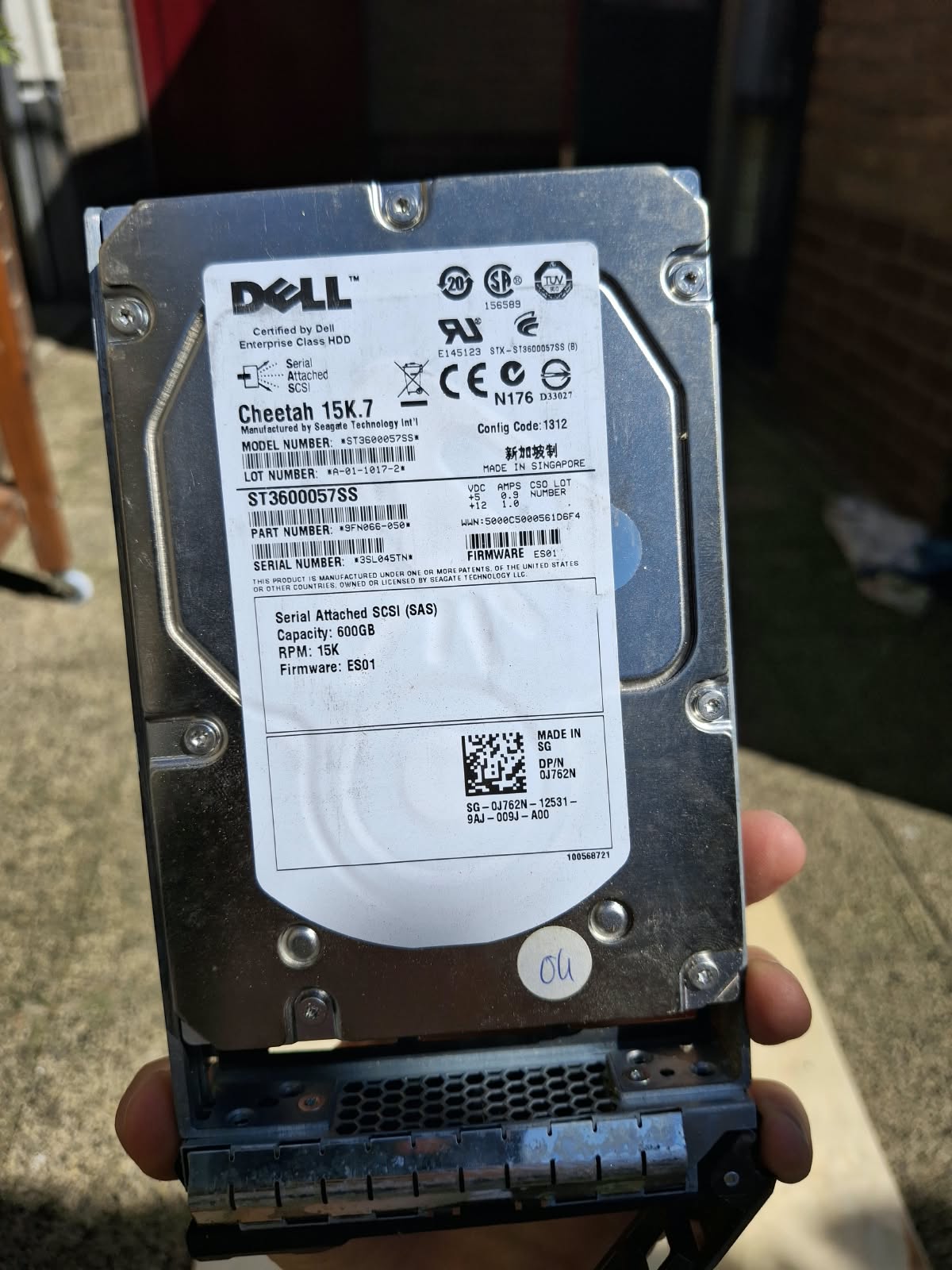

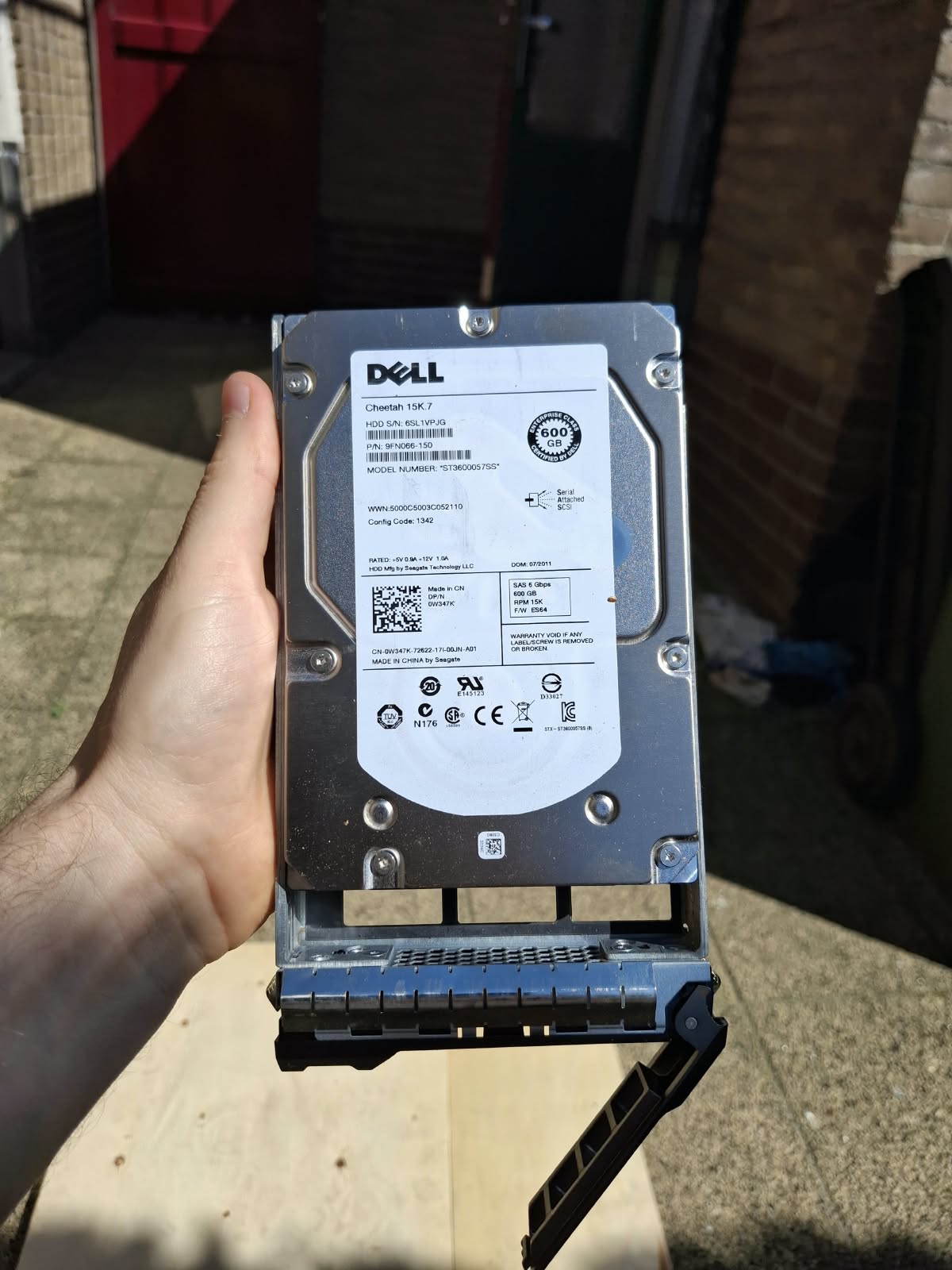

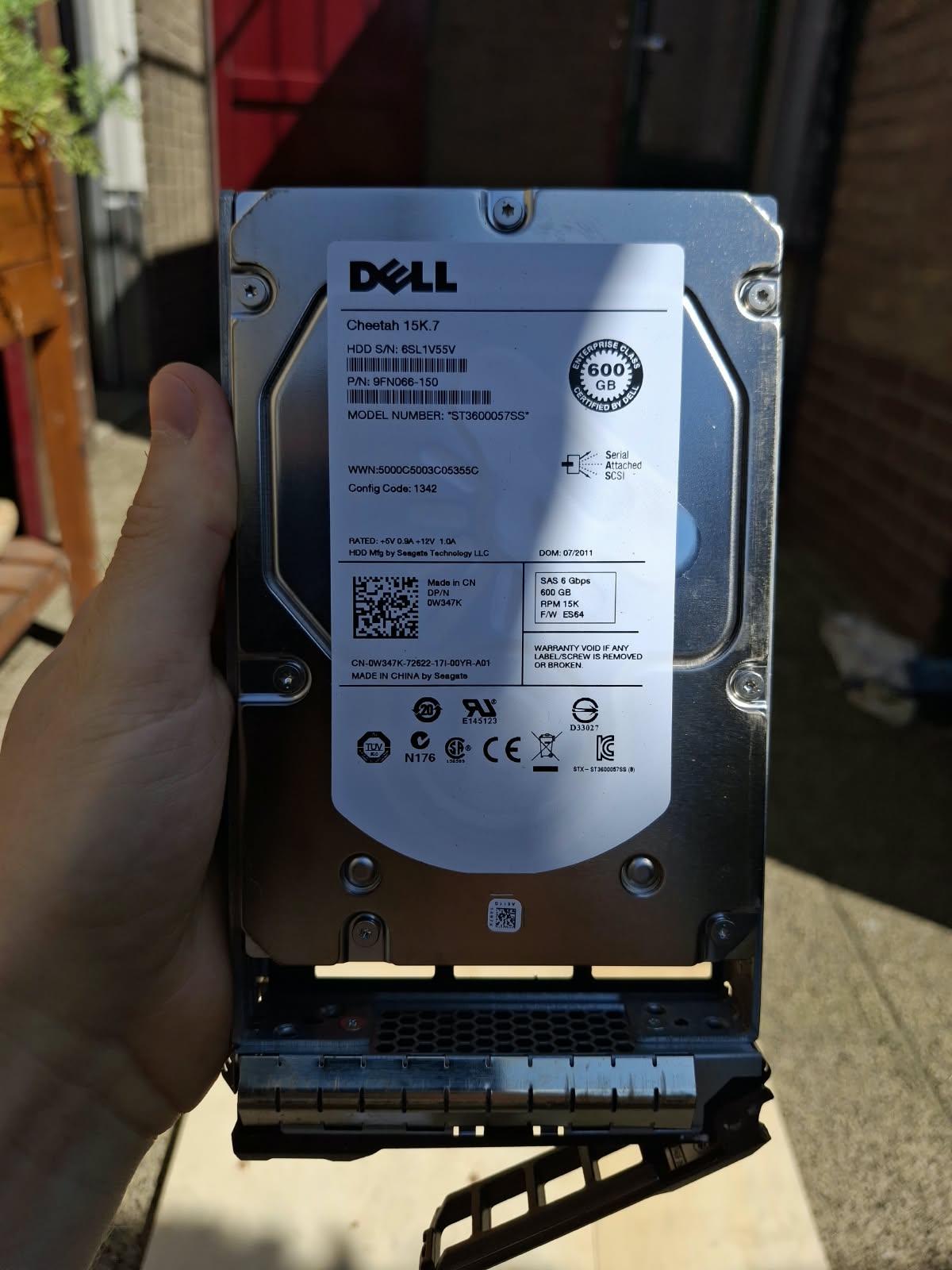

20 – Dell SAN – Schijven

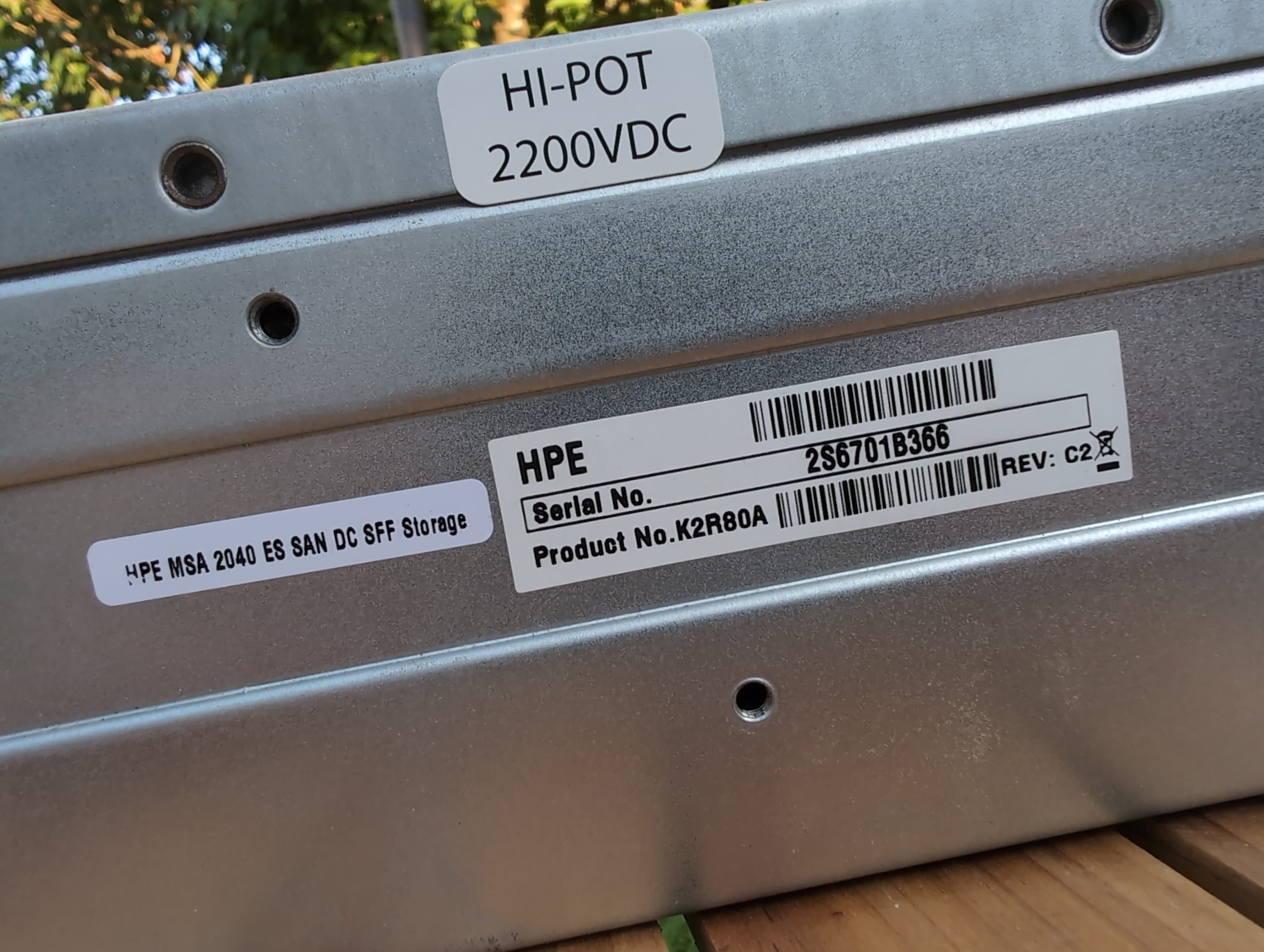

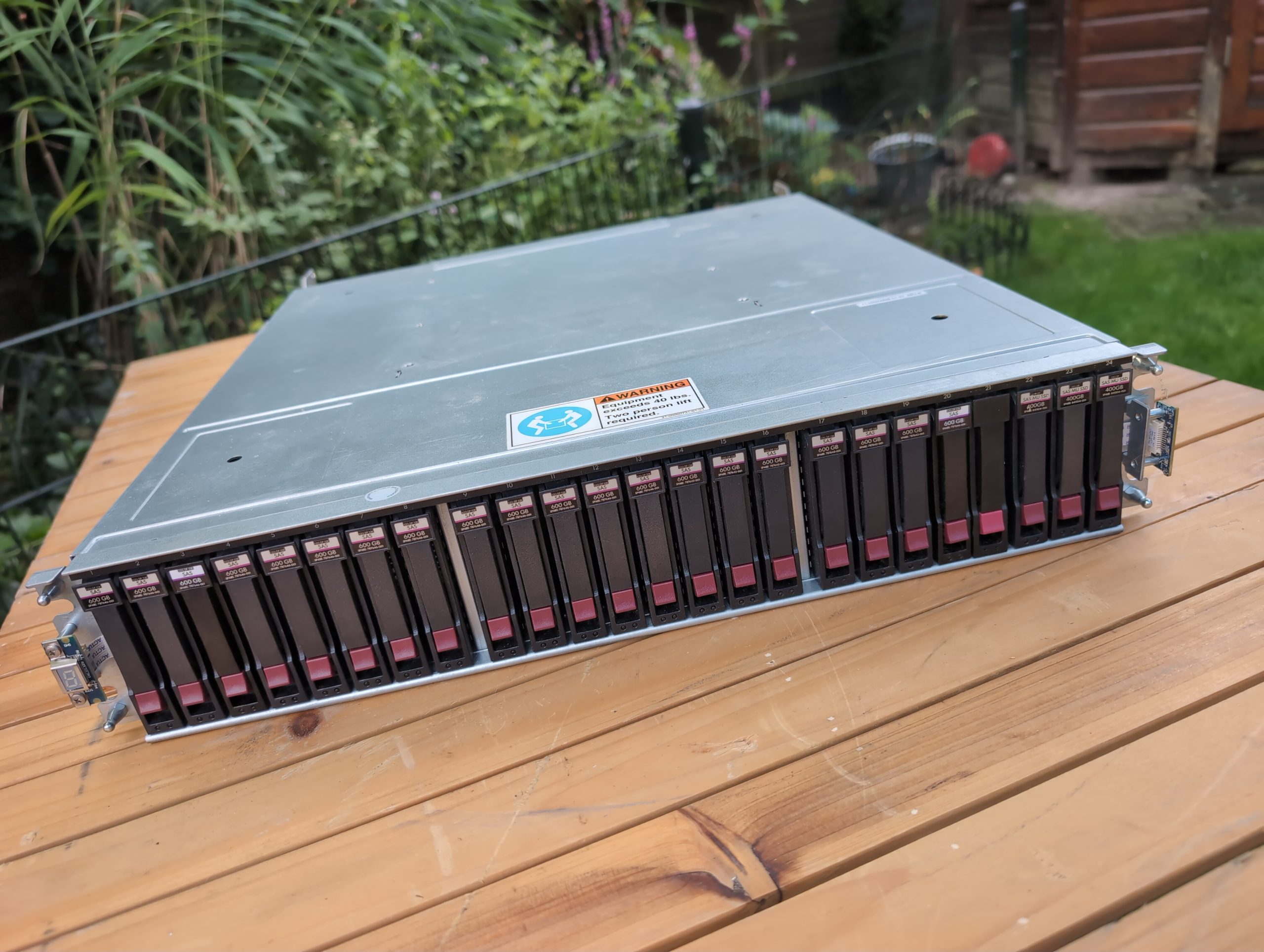

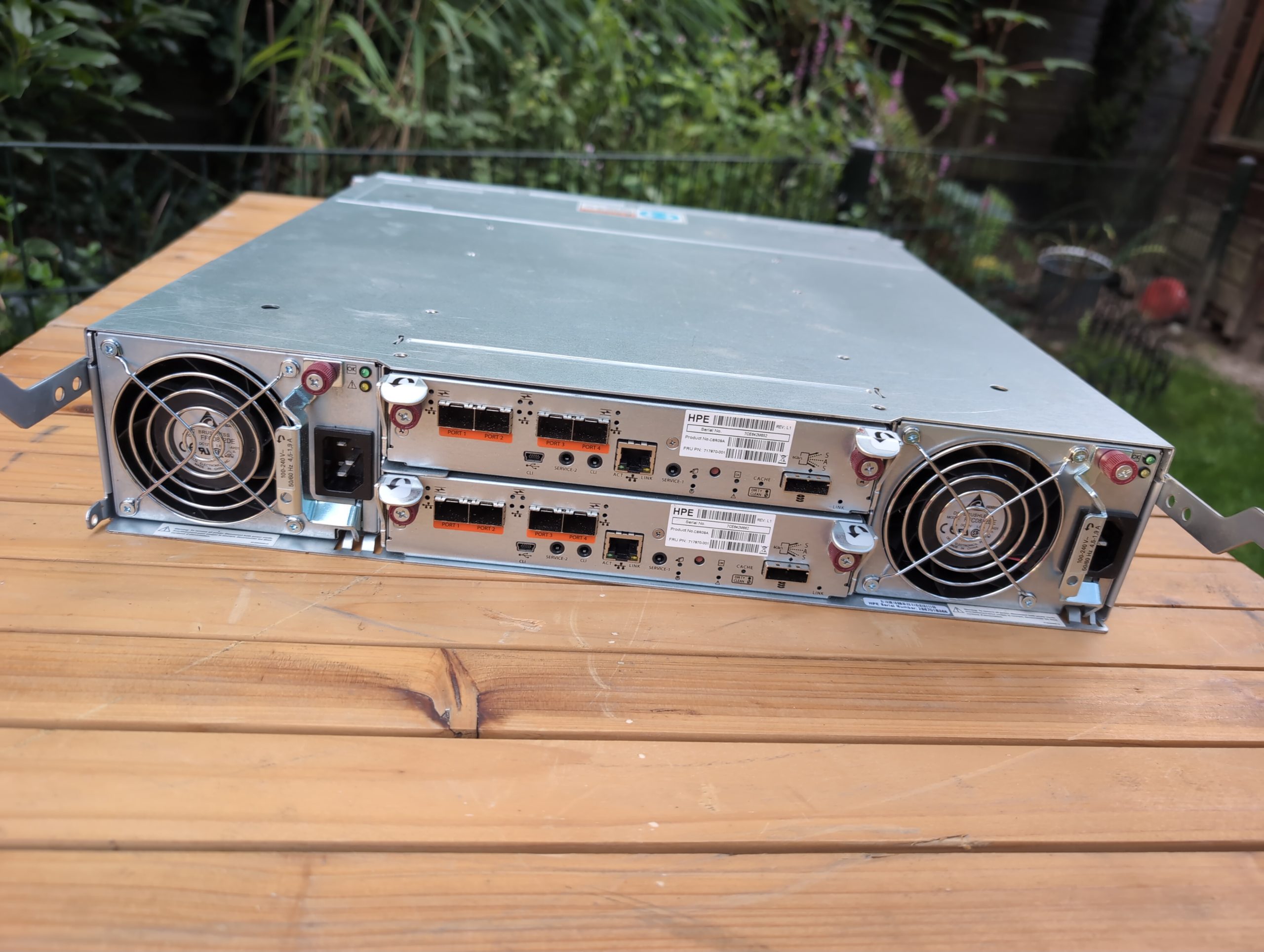

21 – HP SAN (MSA 2040)

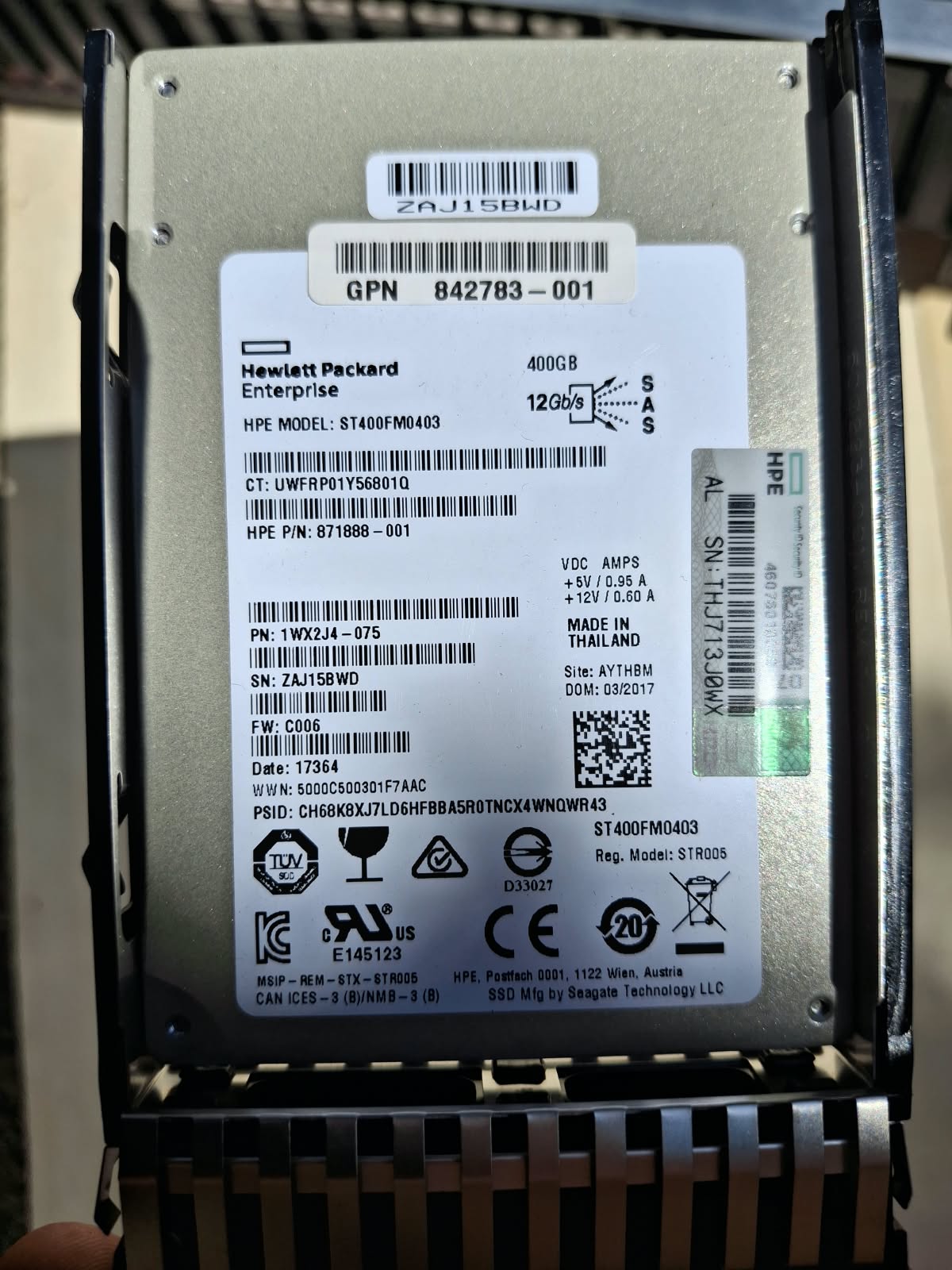

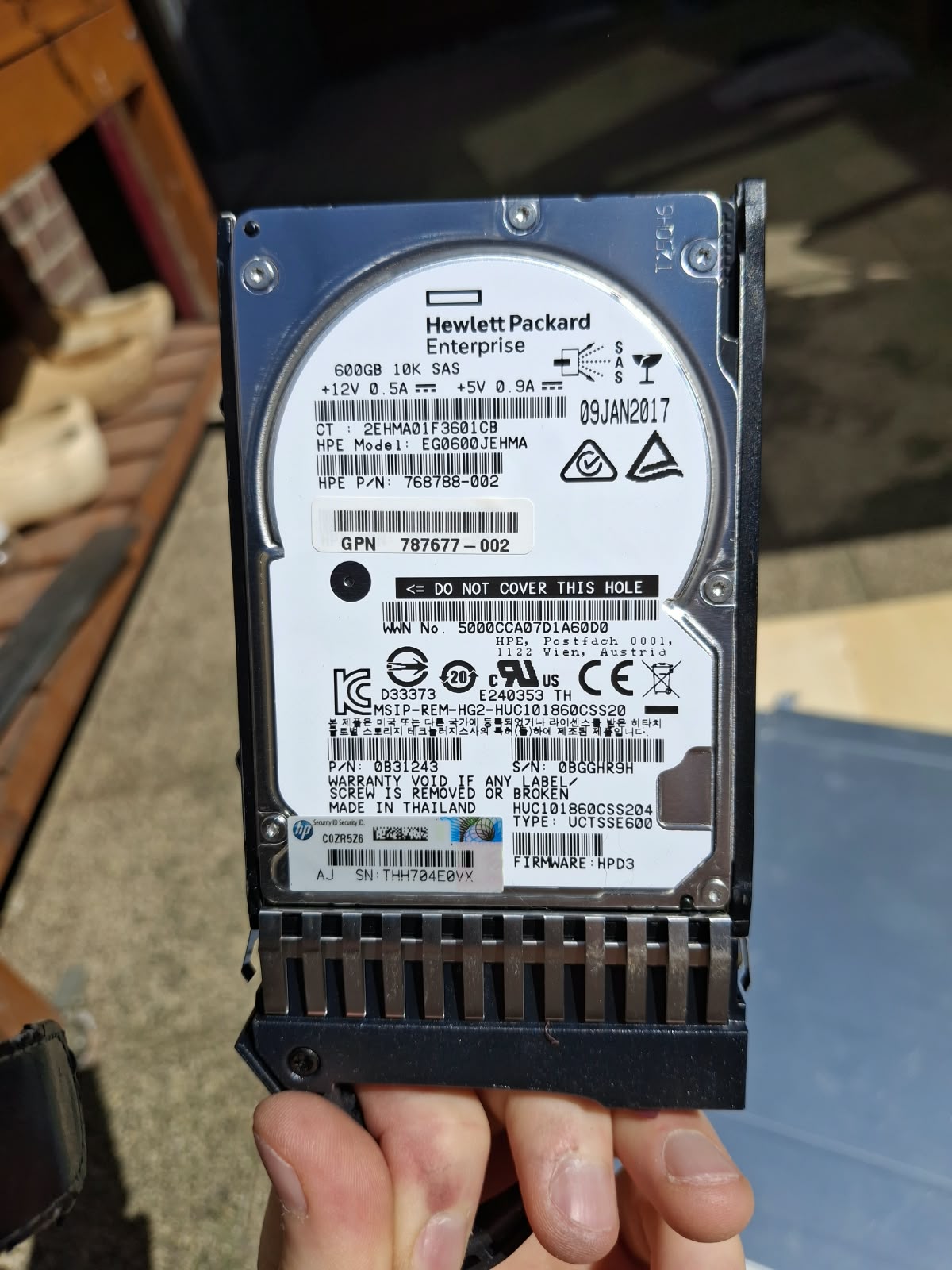

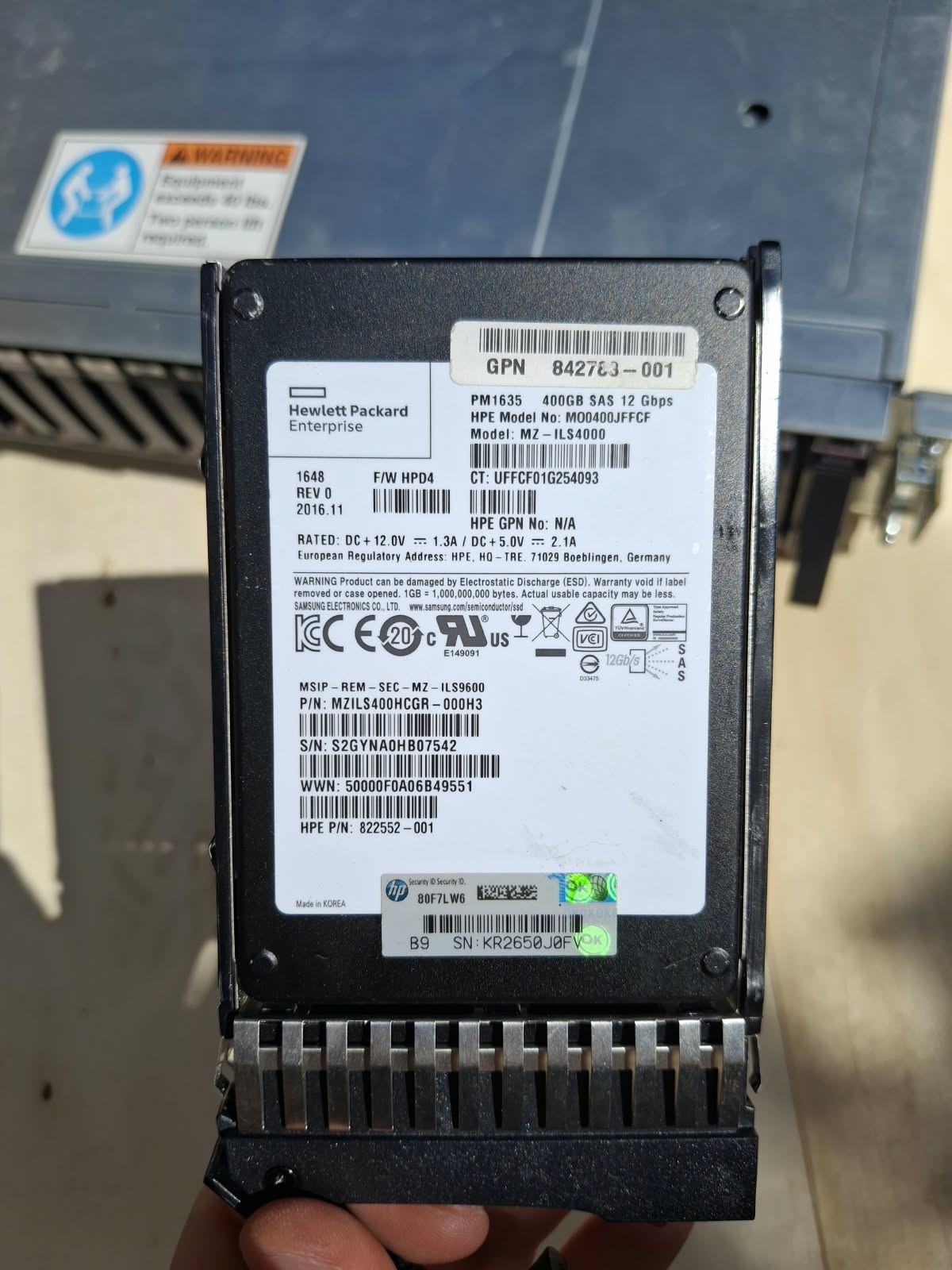

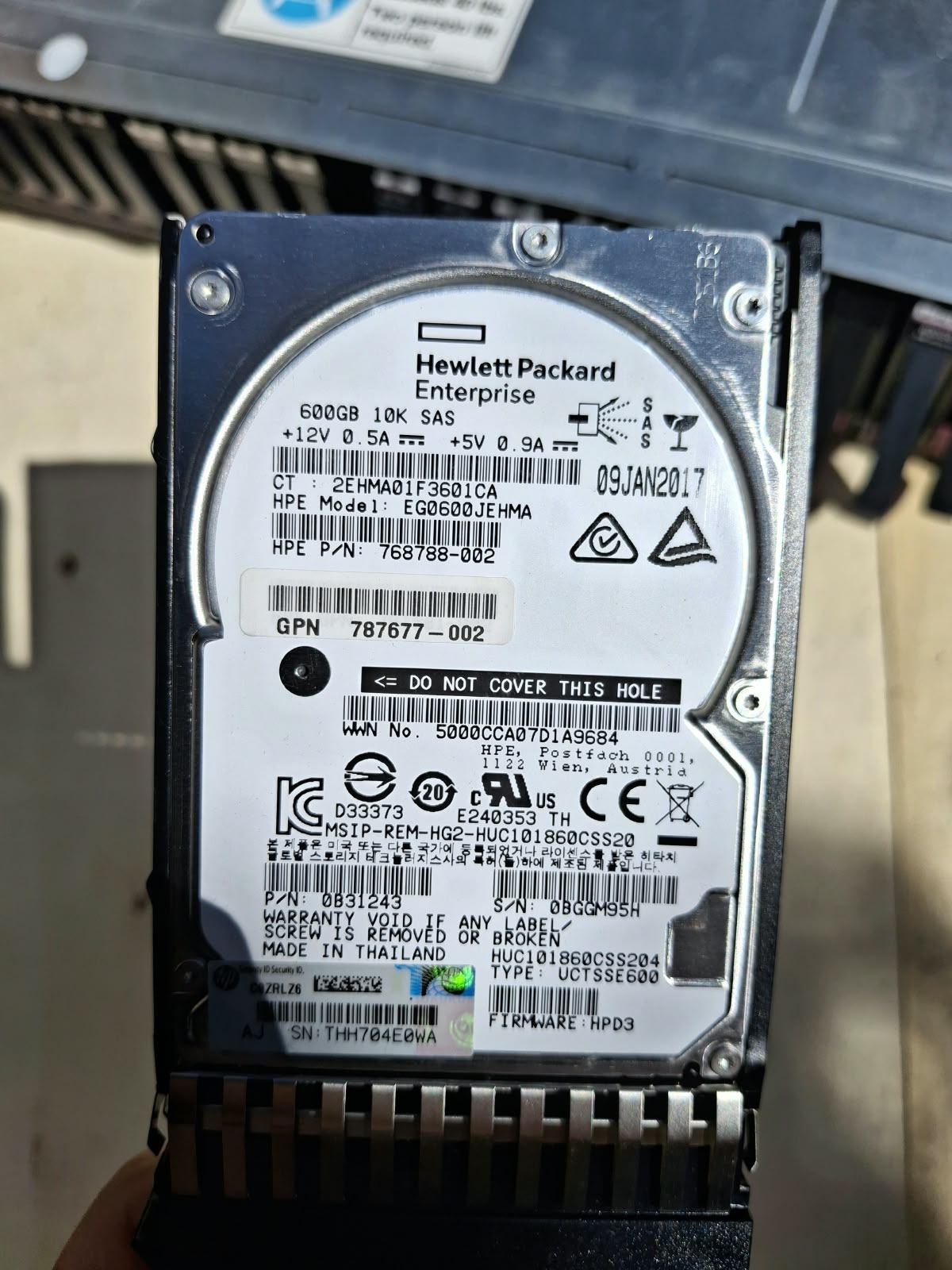

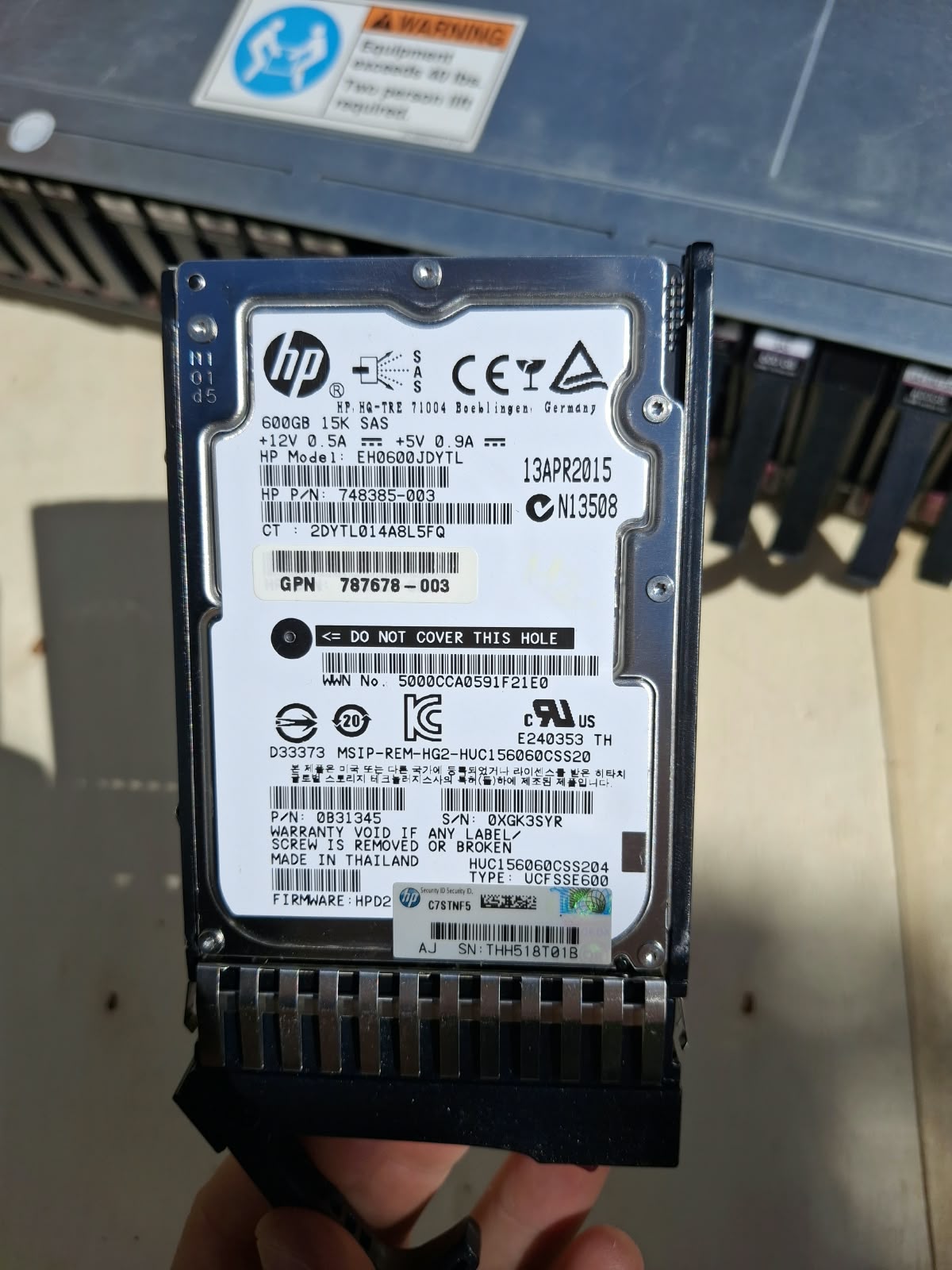

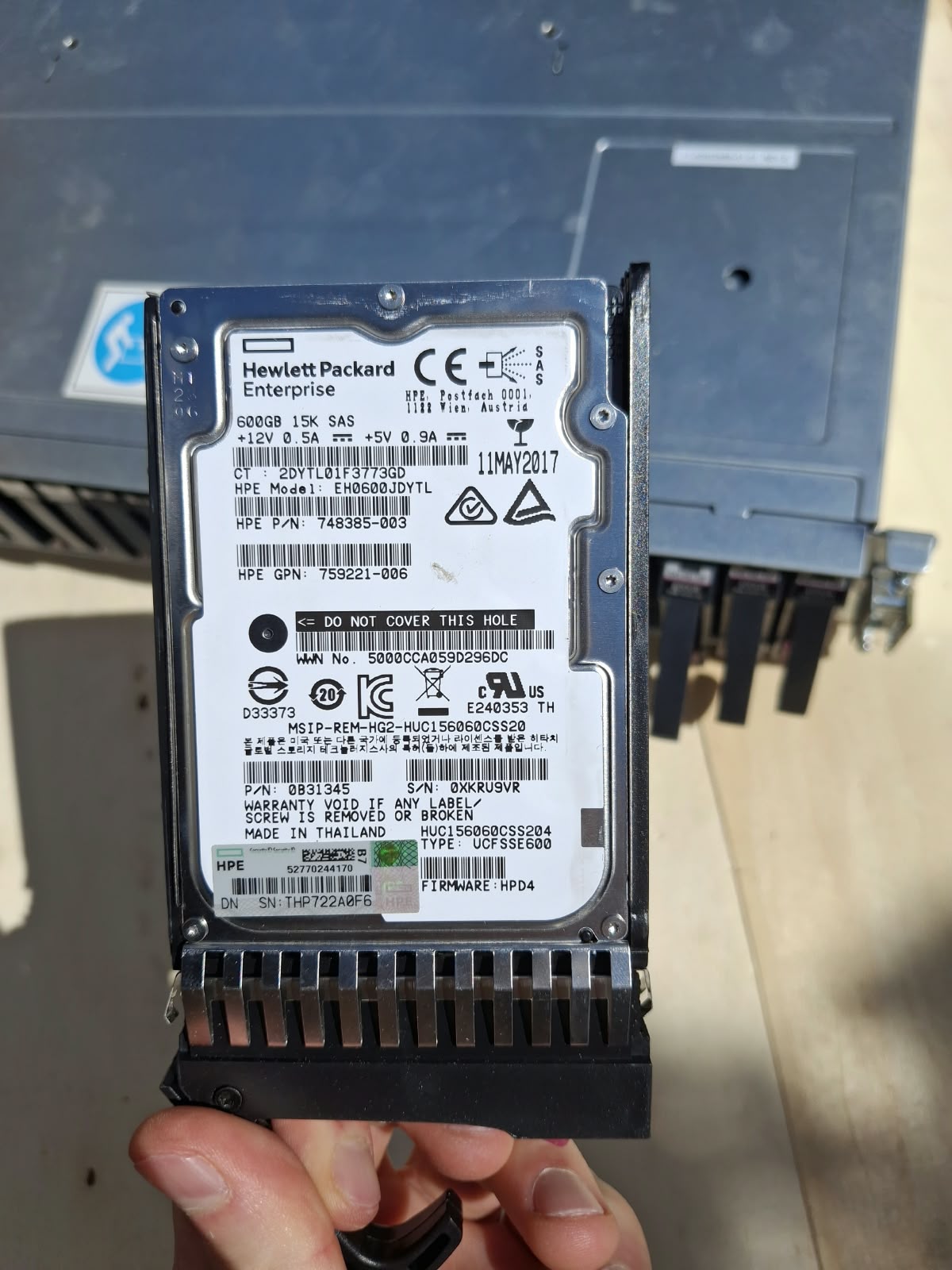

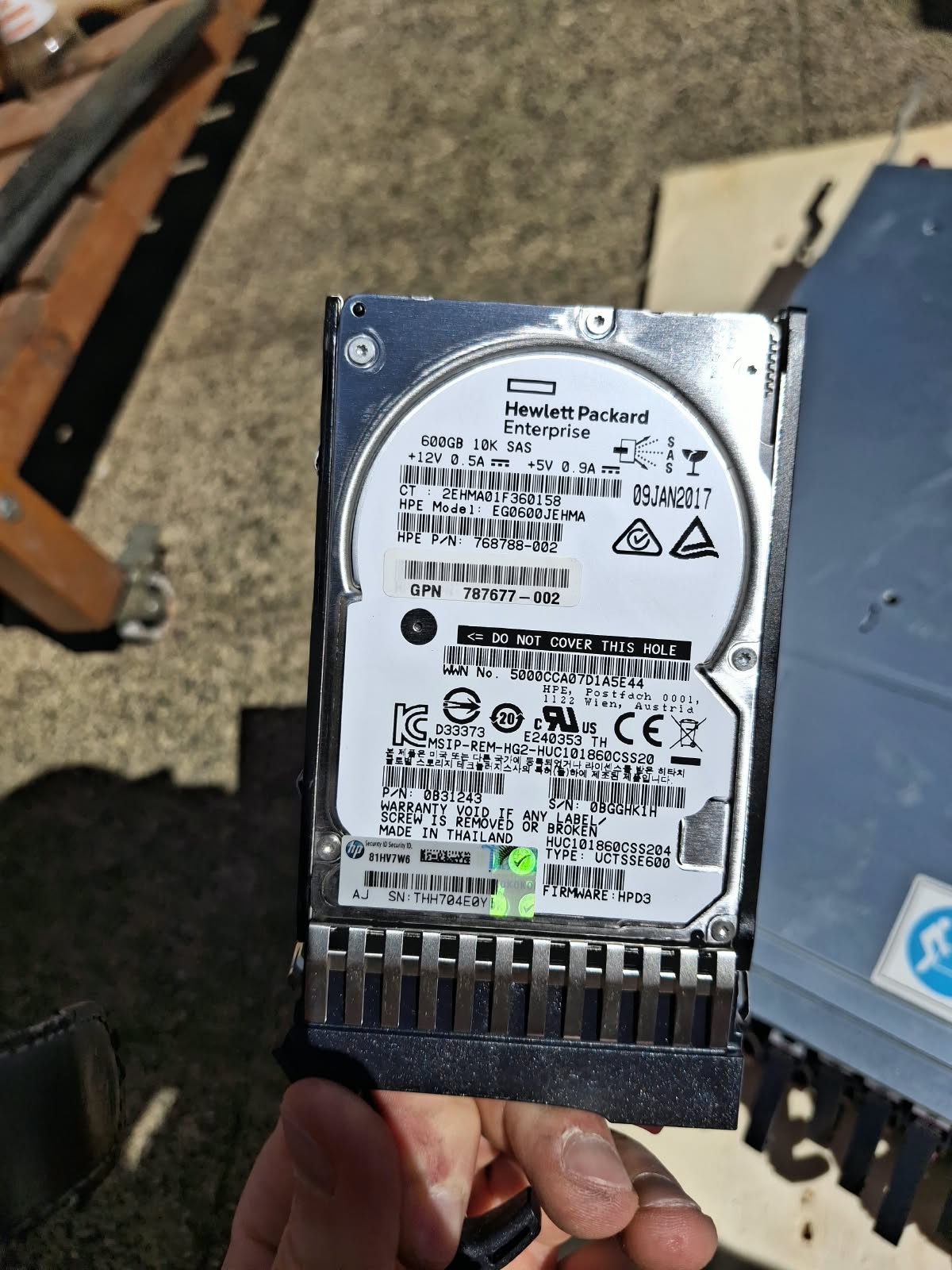

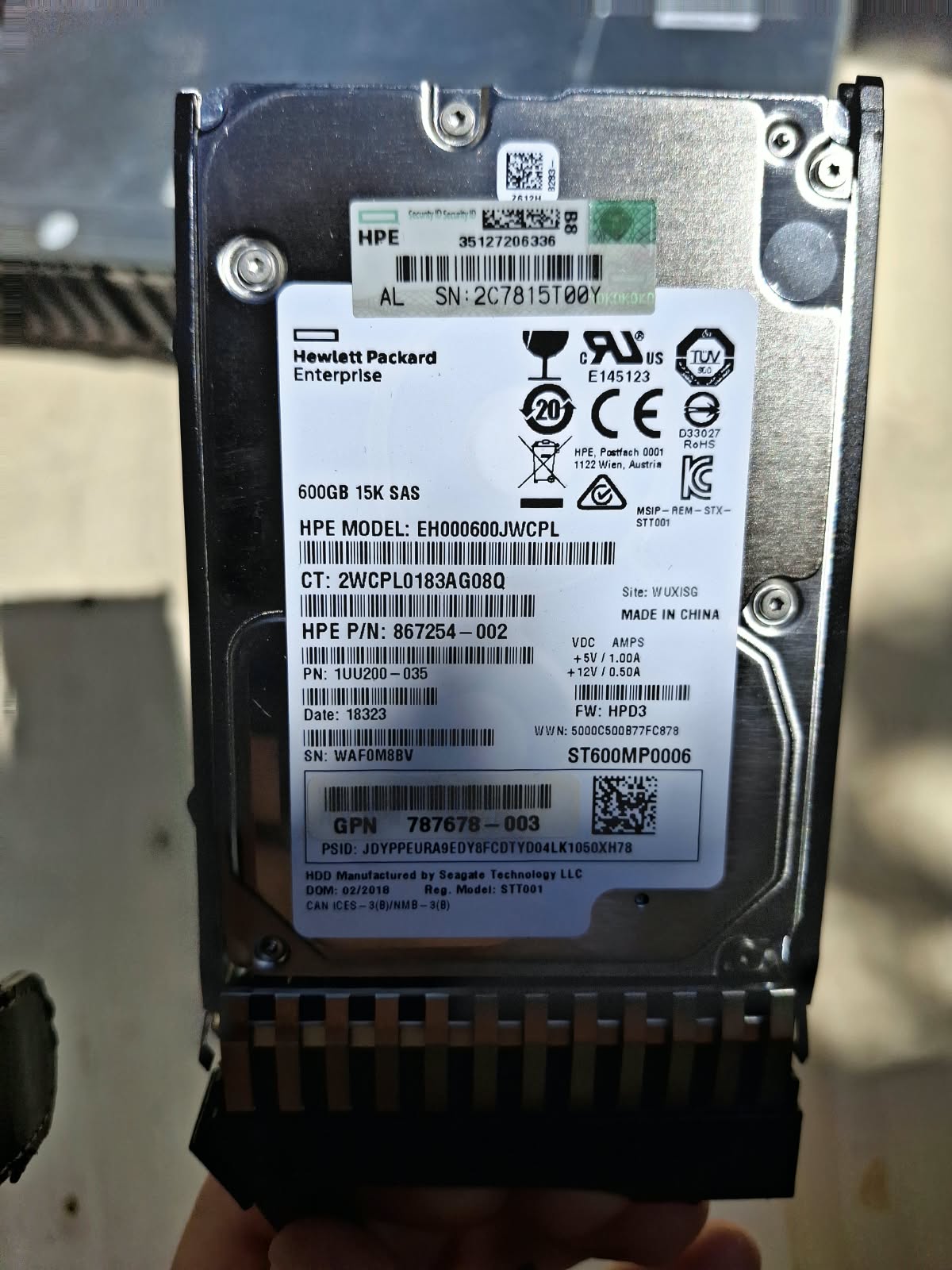

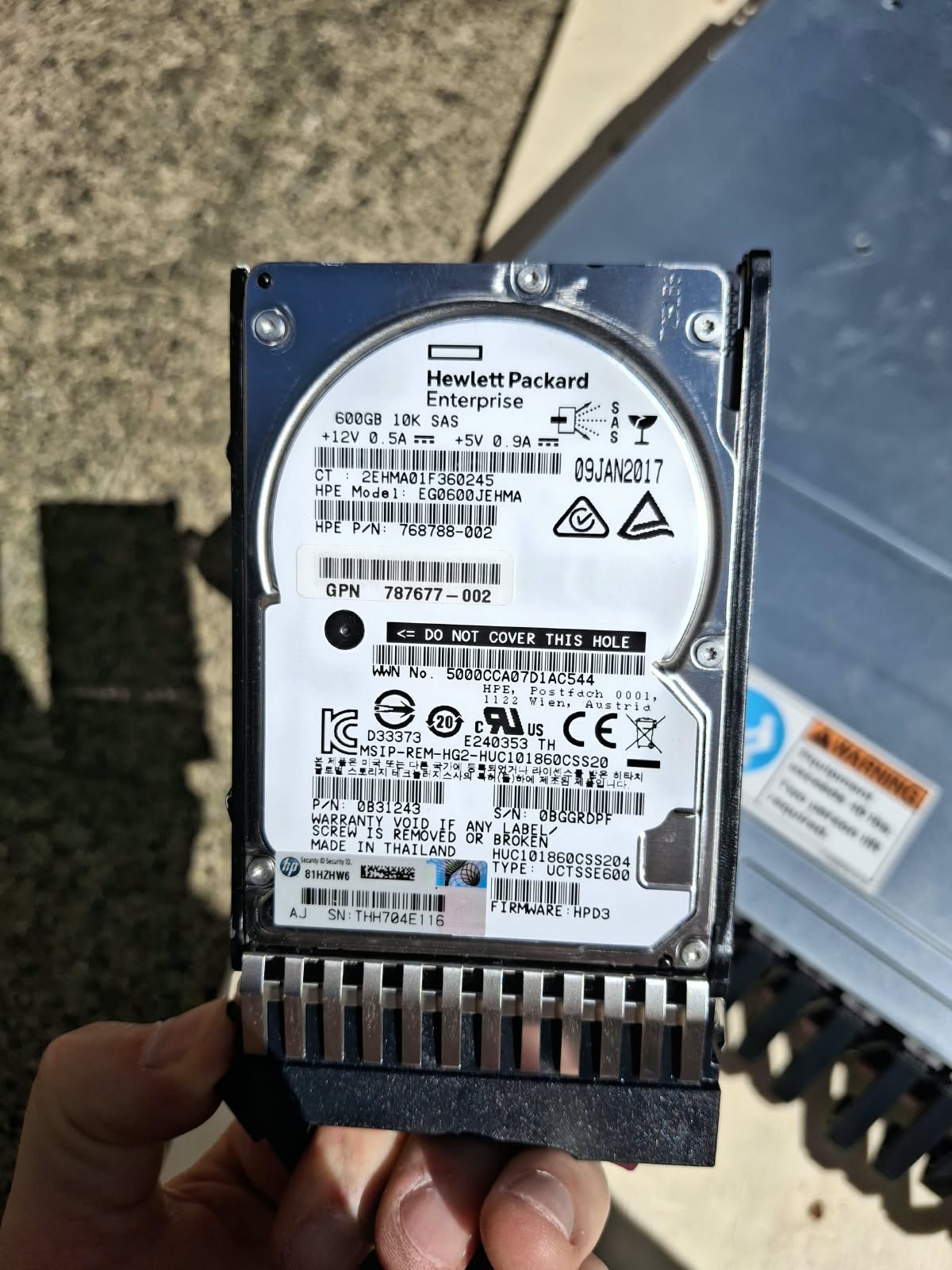

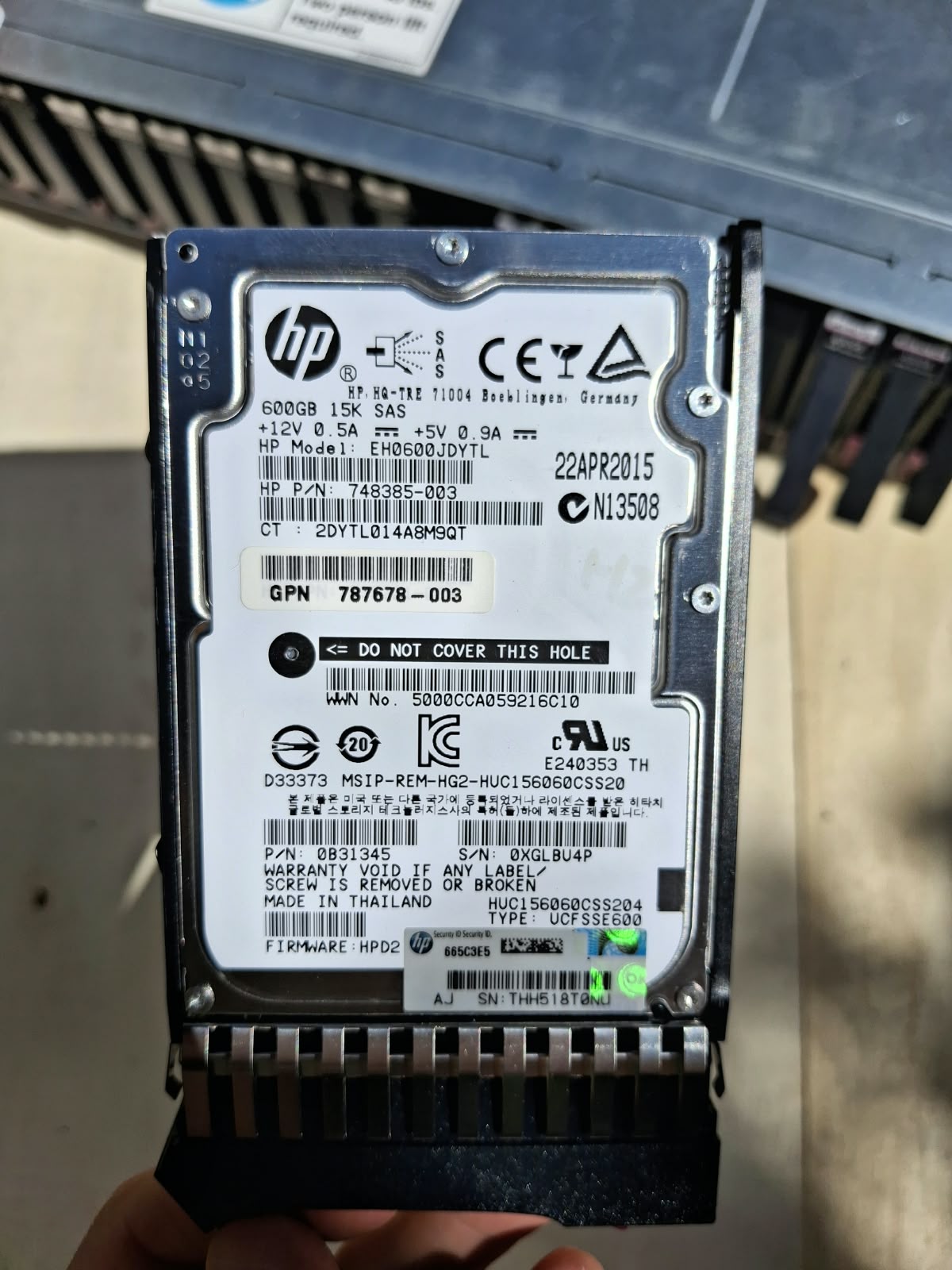

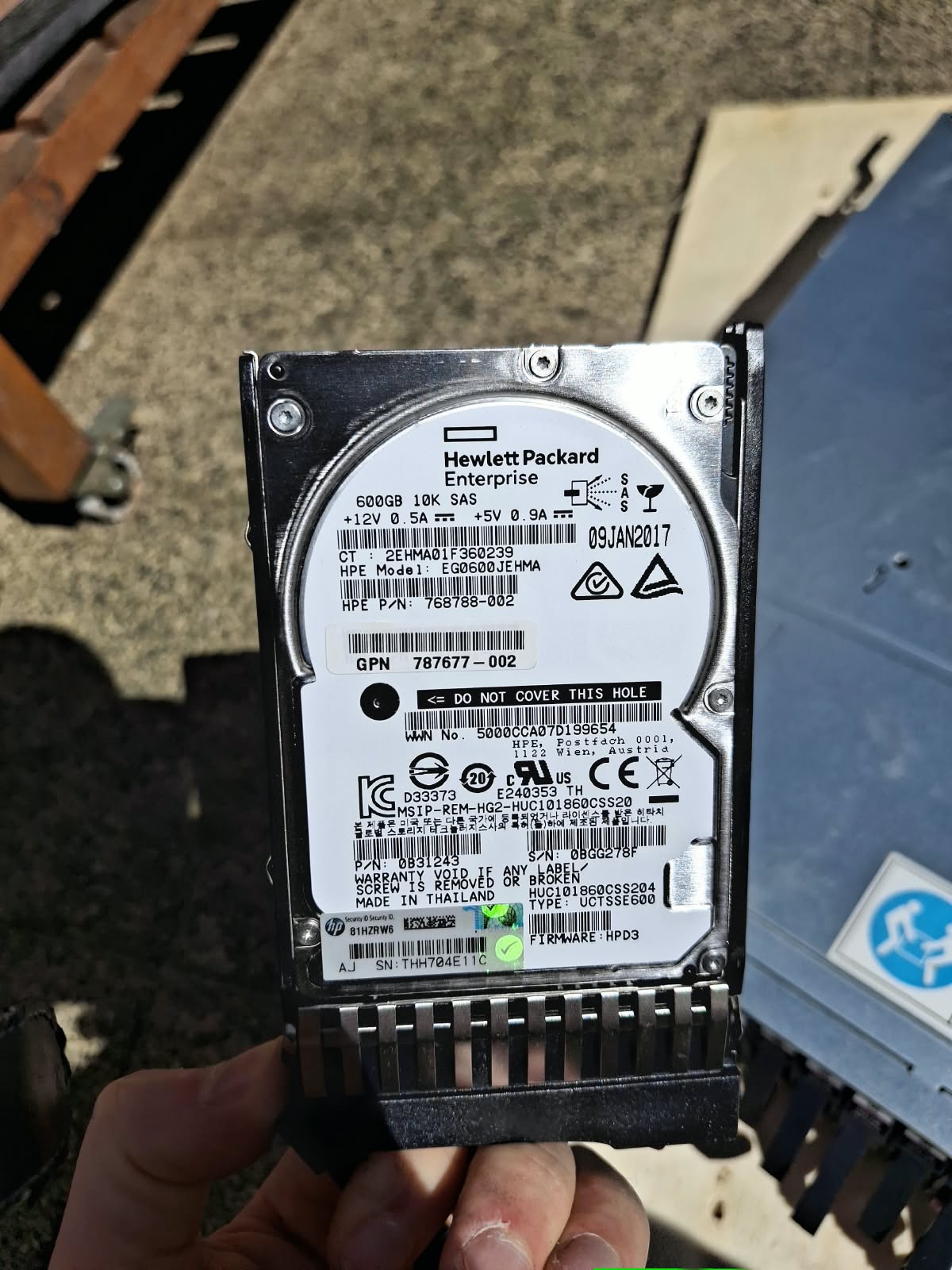

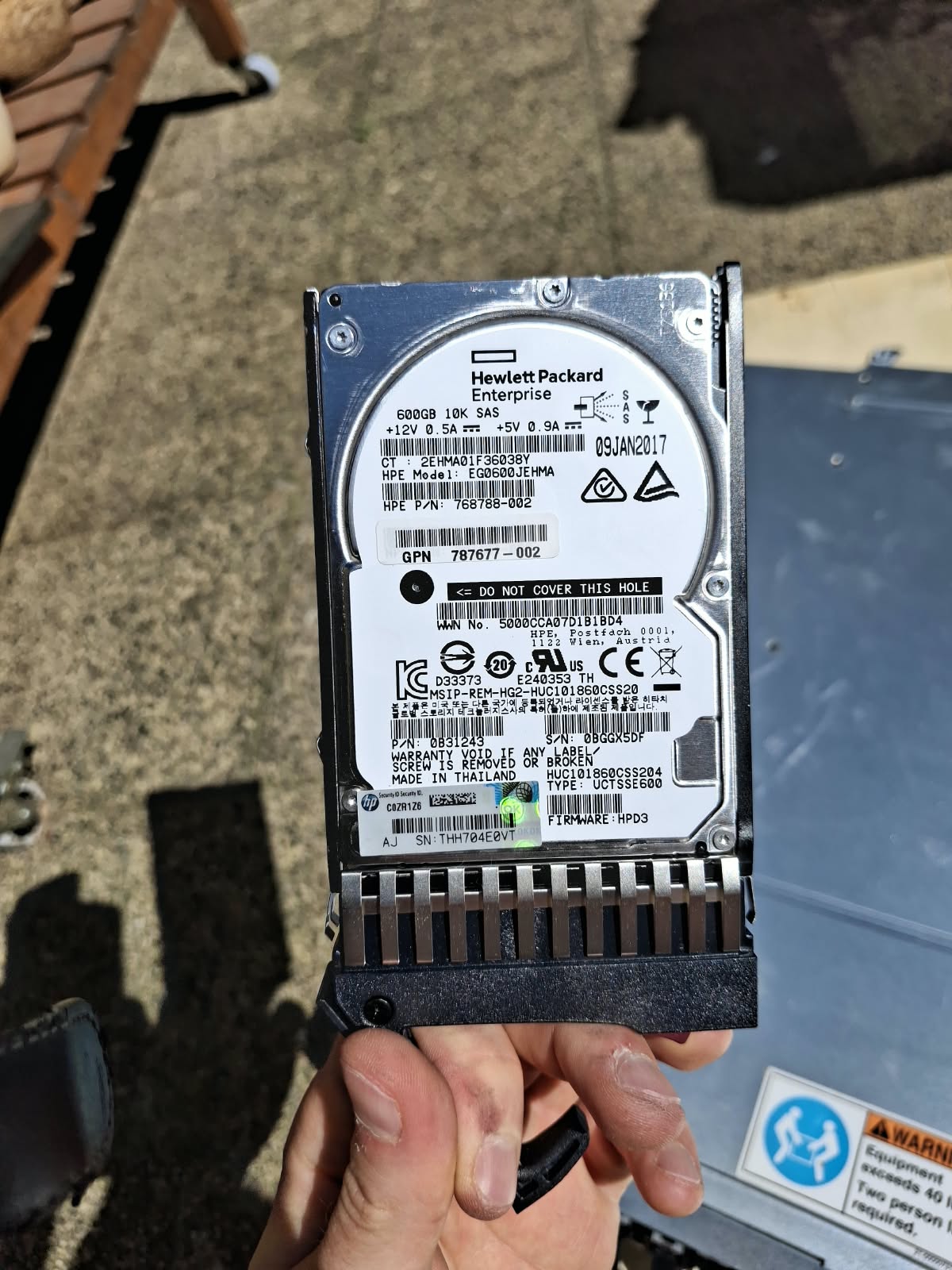

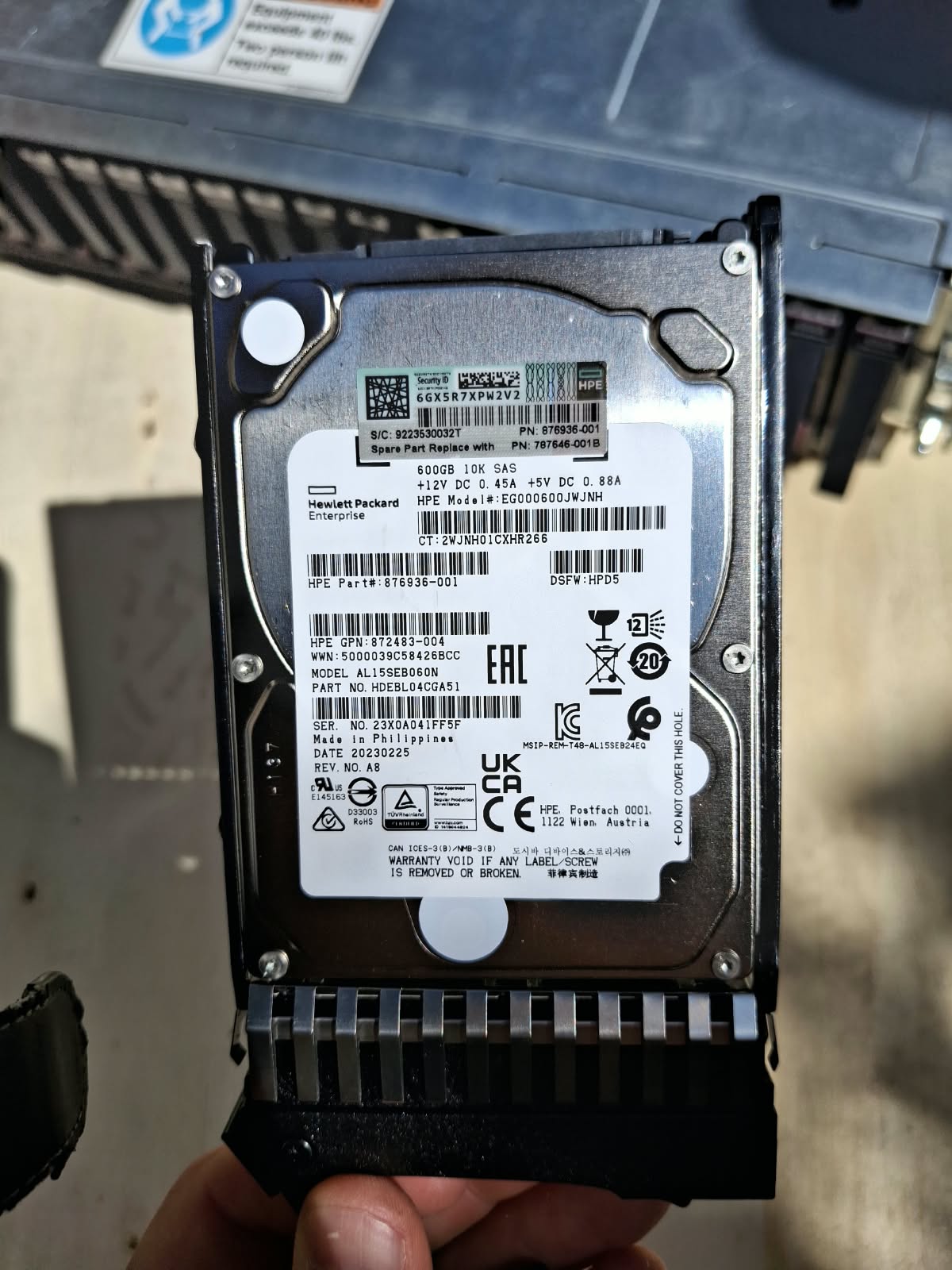

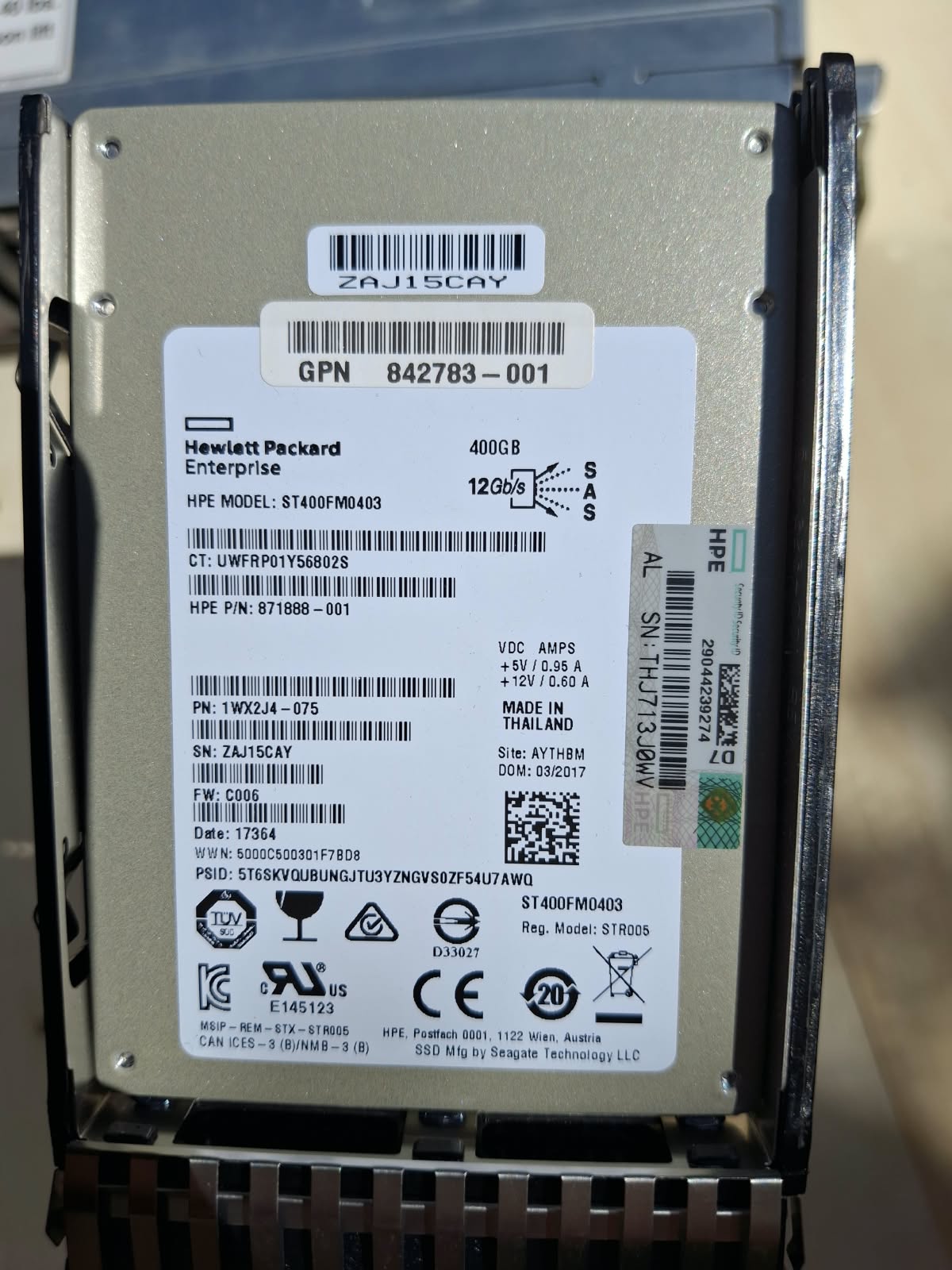

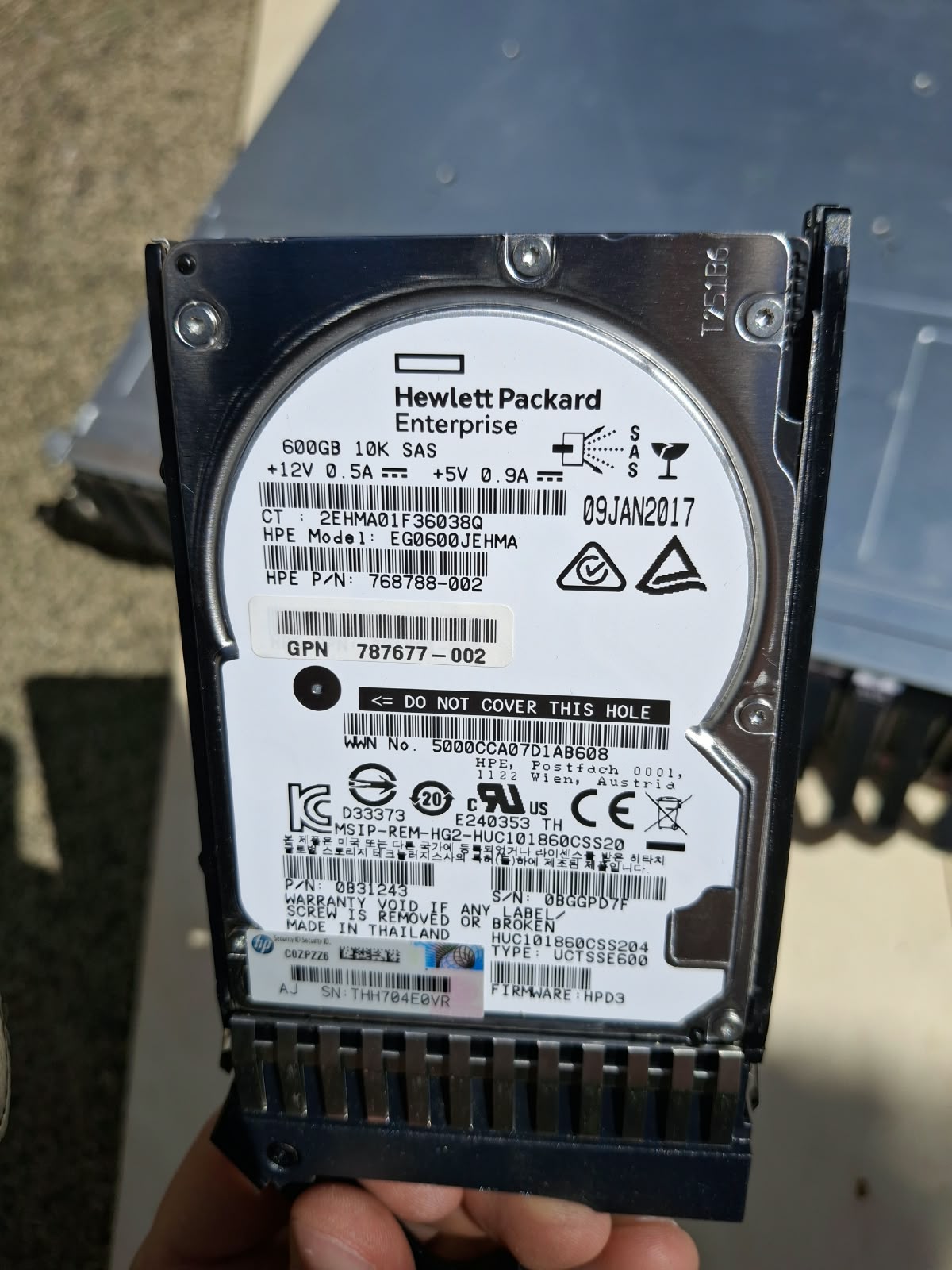

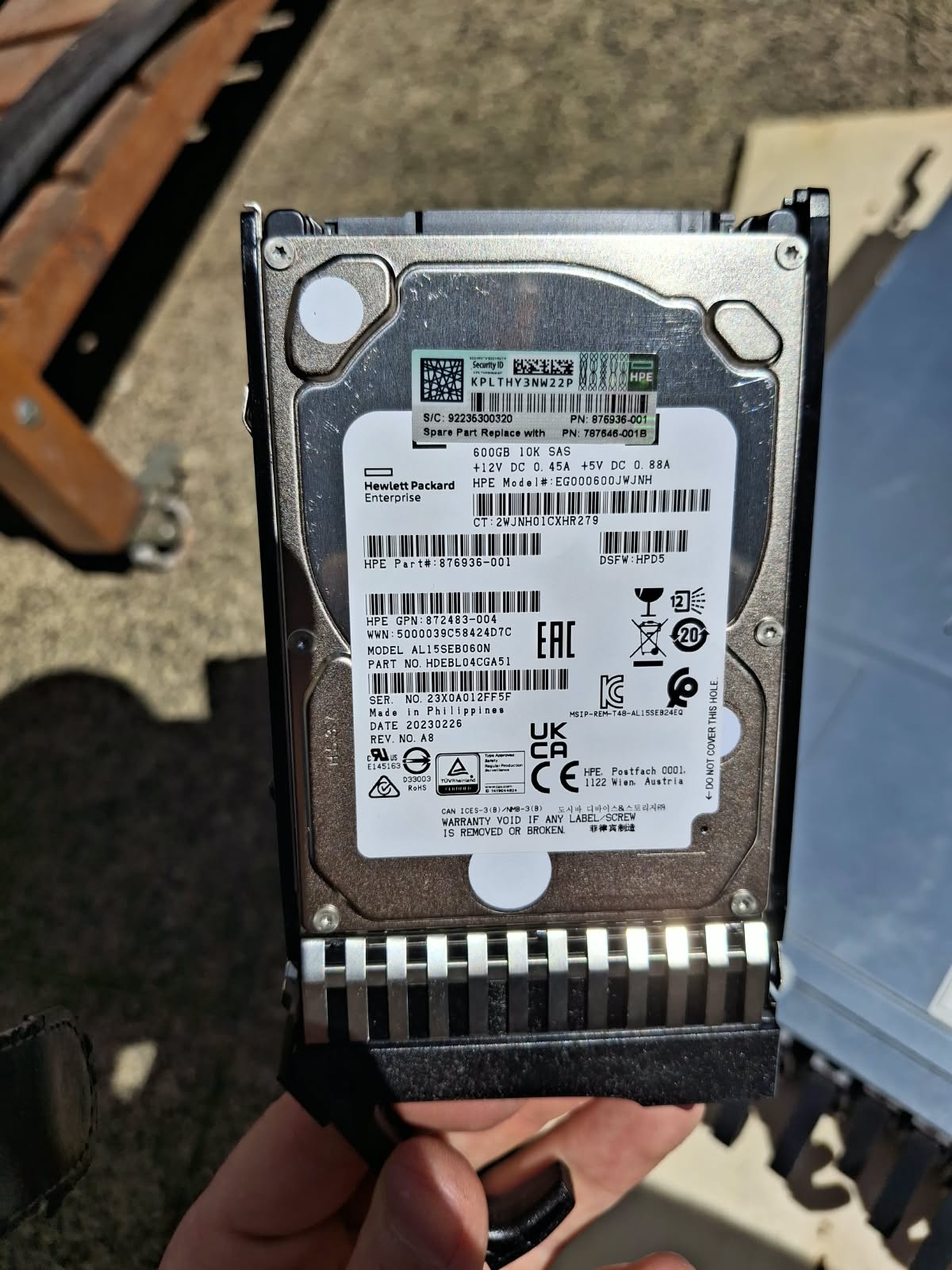

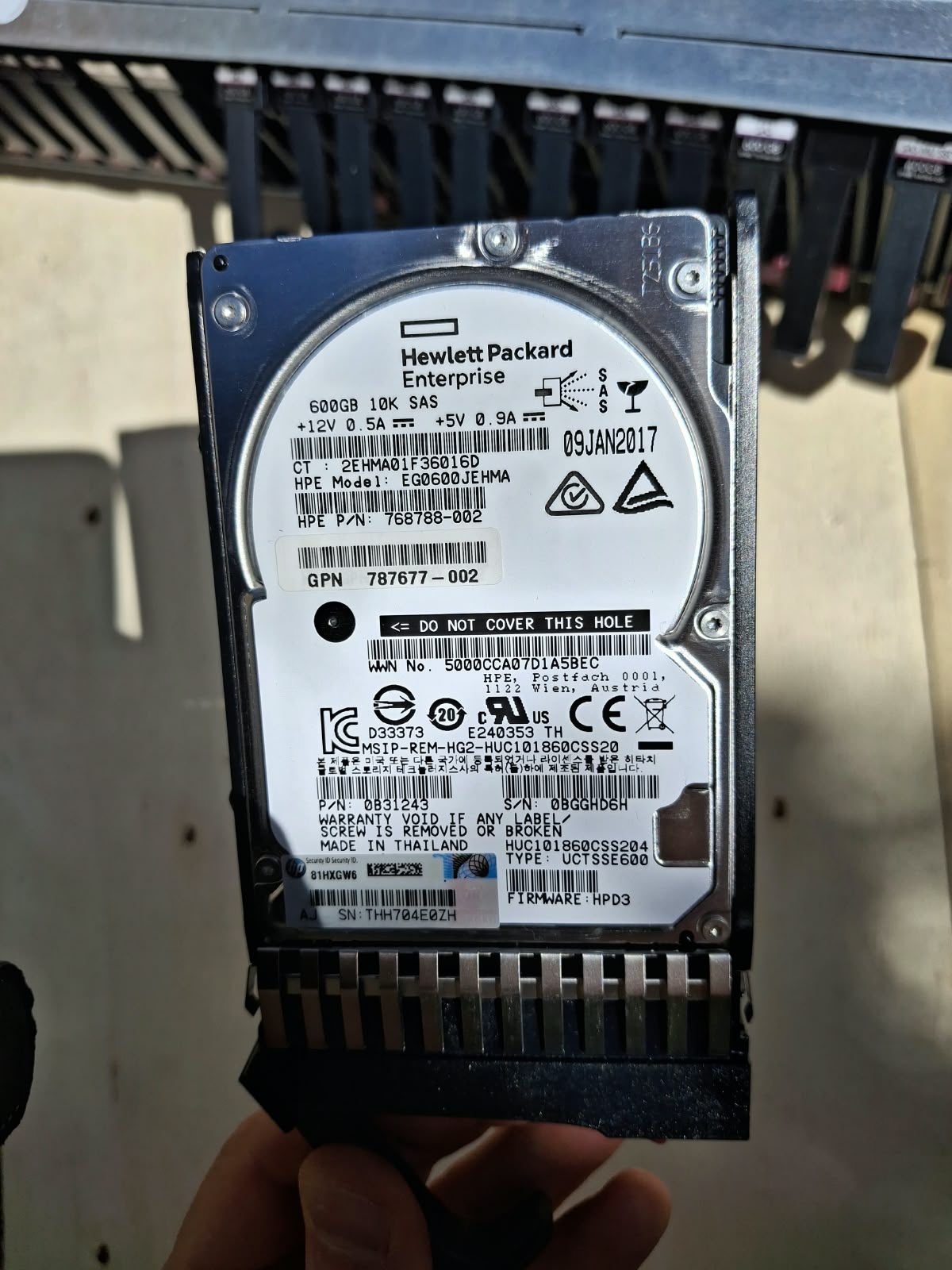

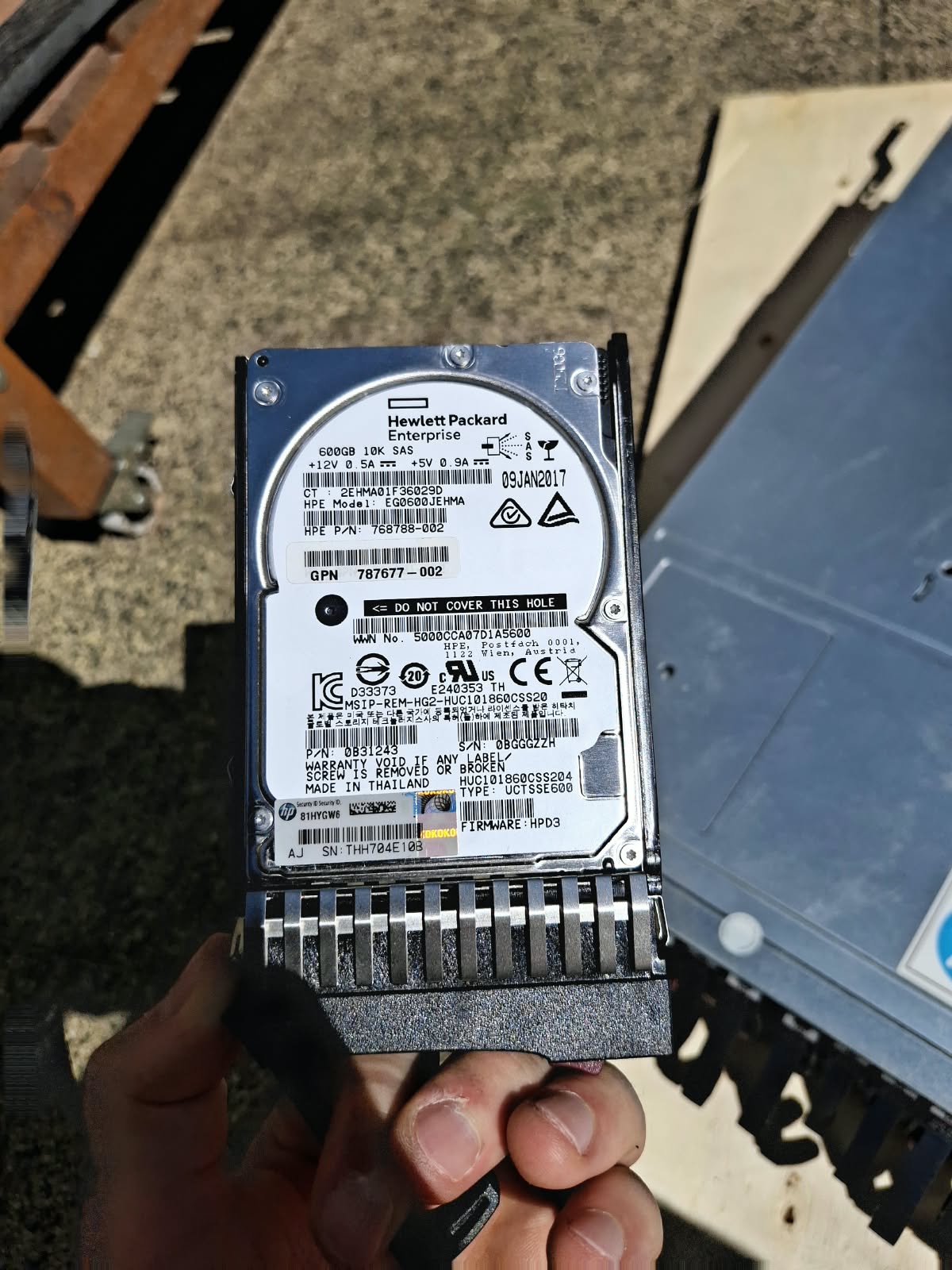

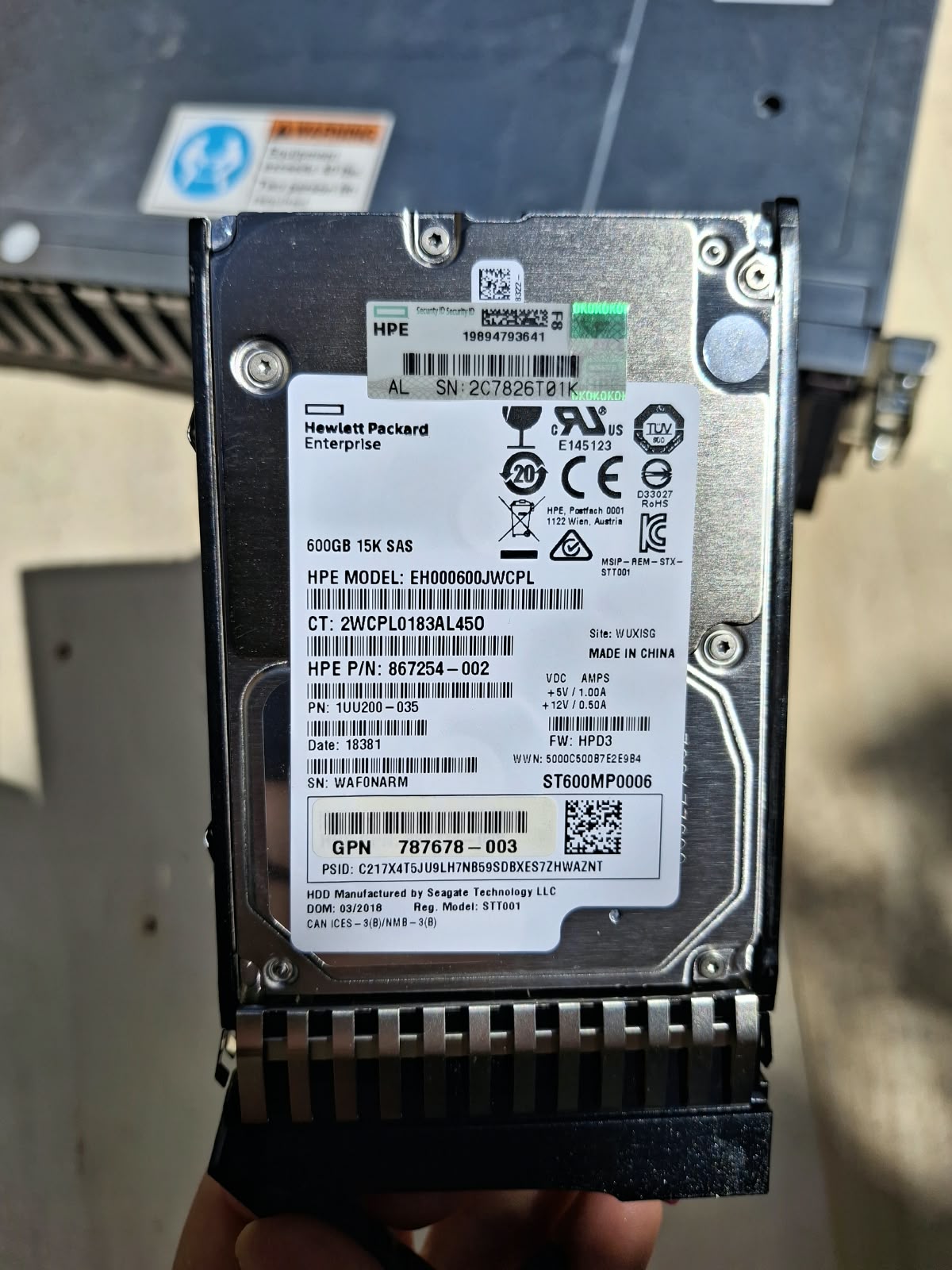

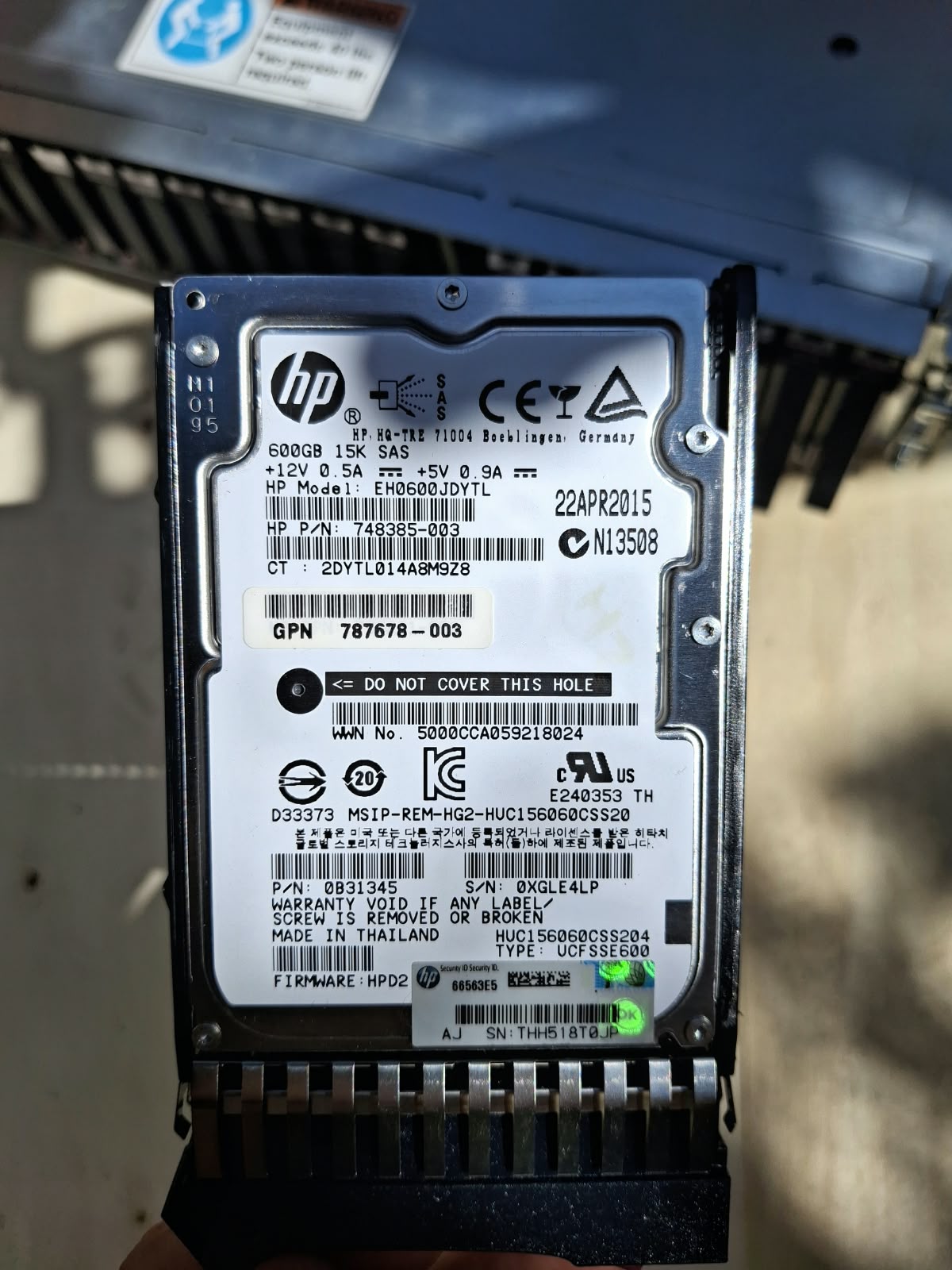

21 – HP SAN – Schijven

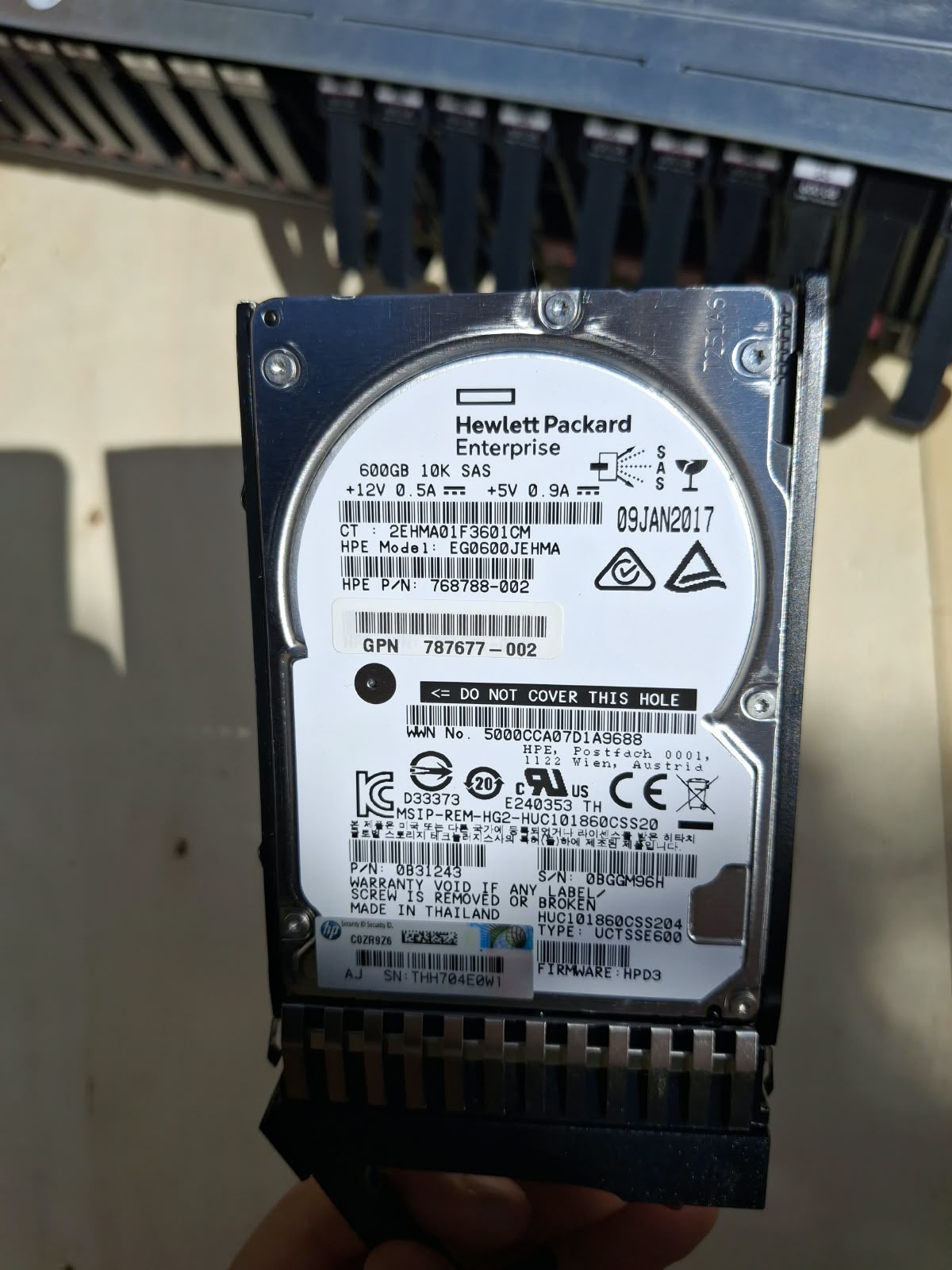

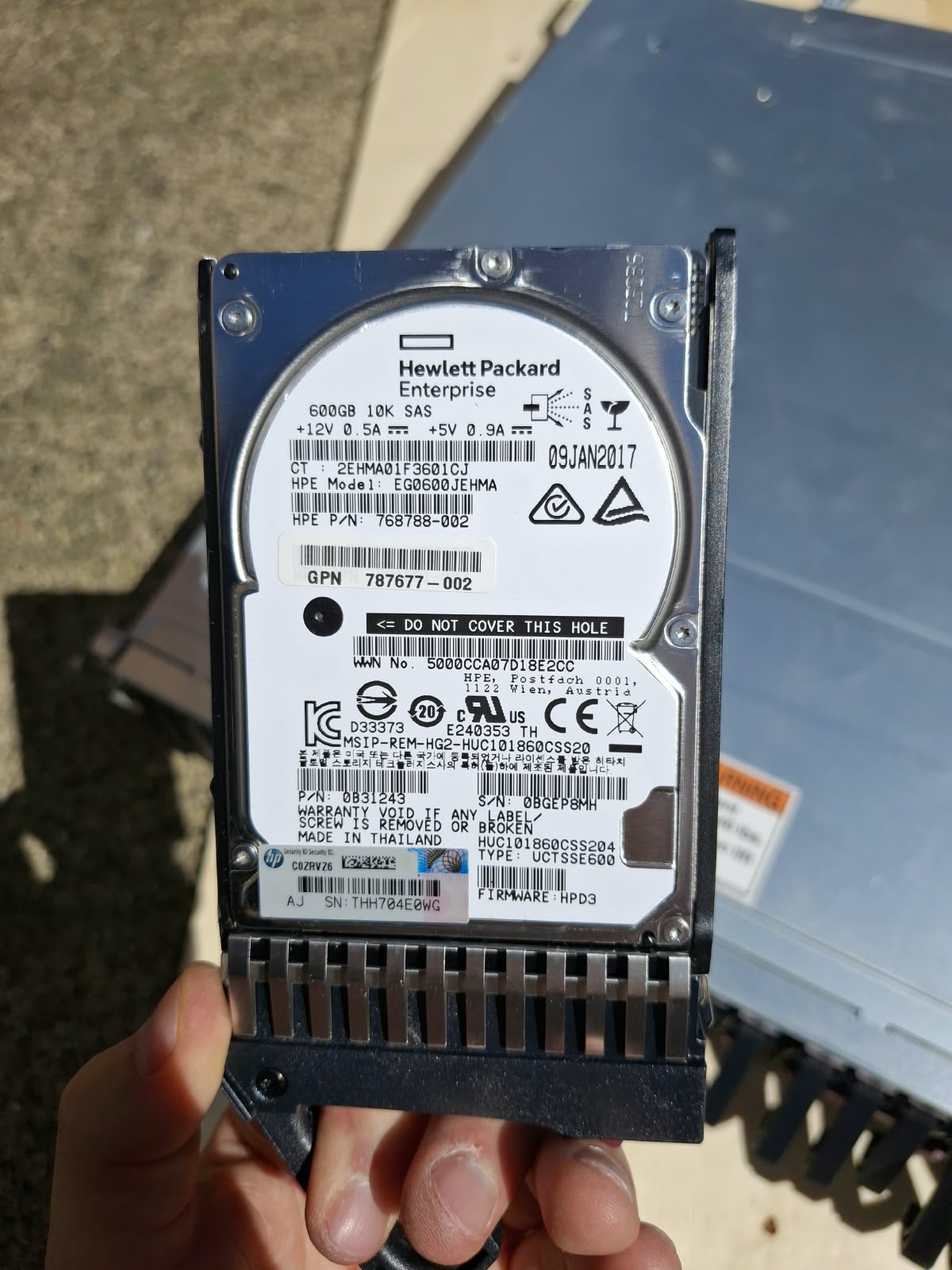

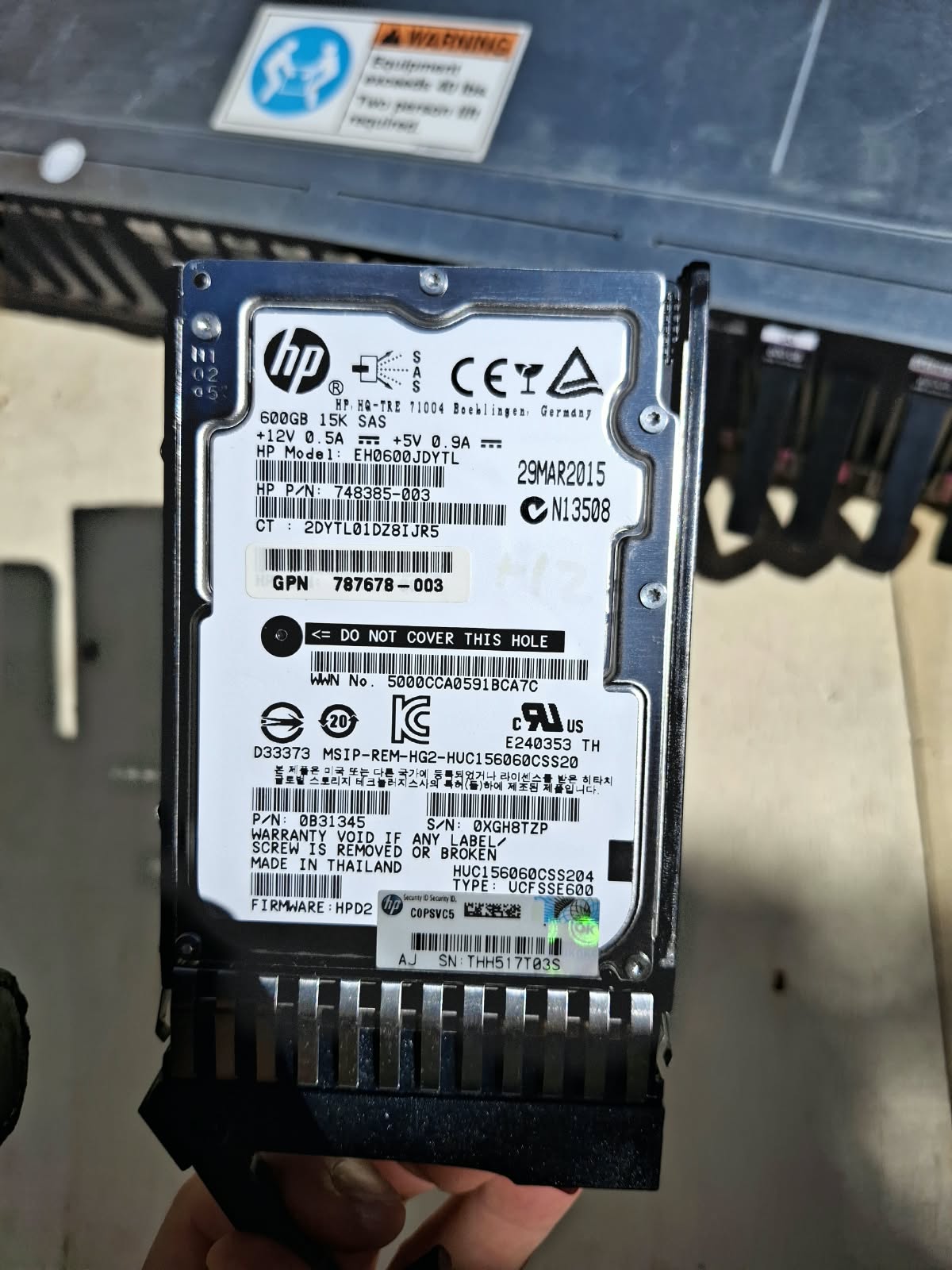

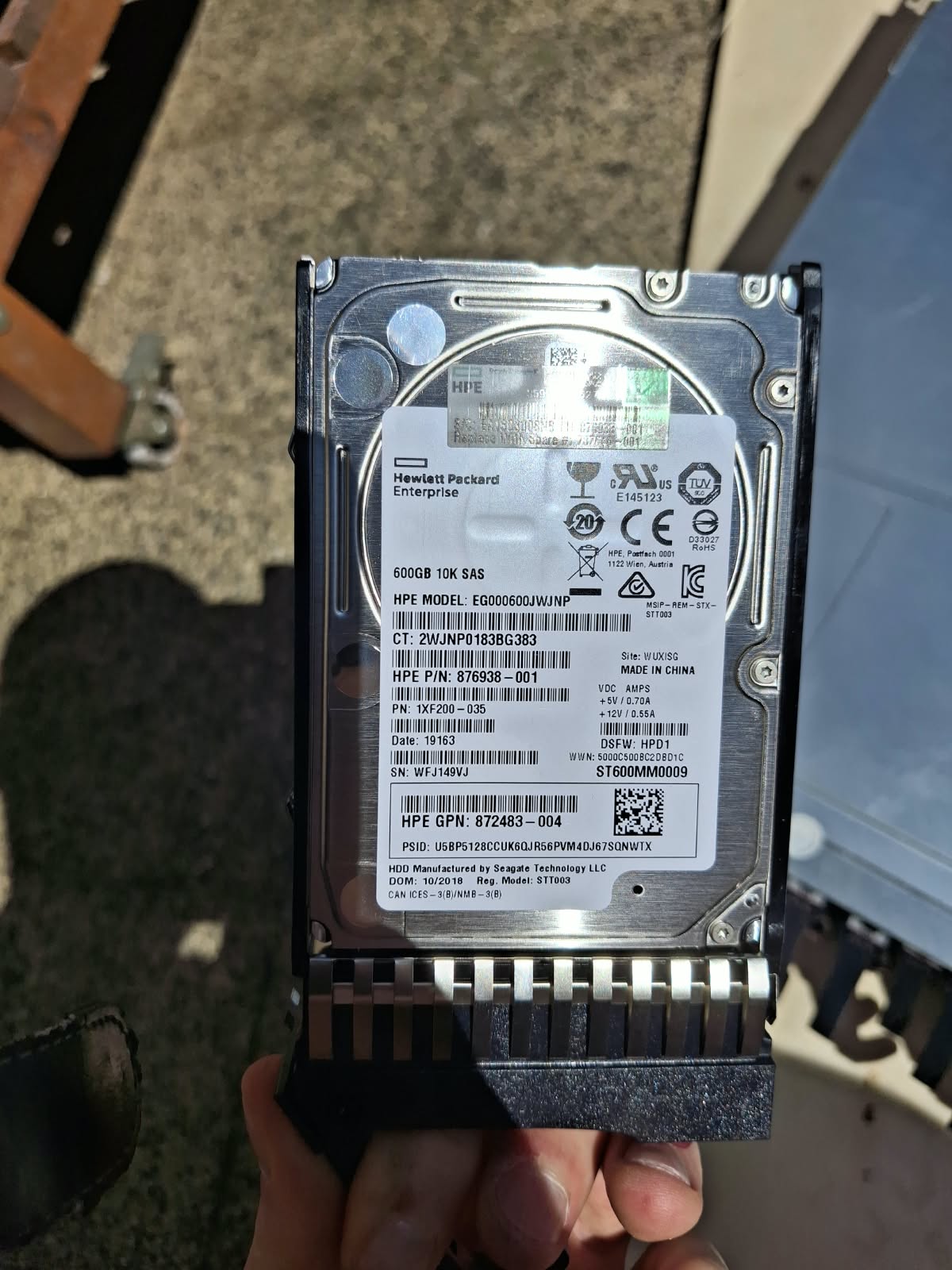

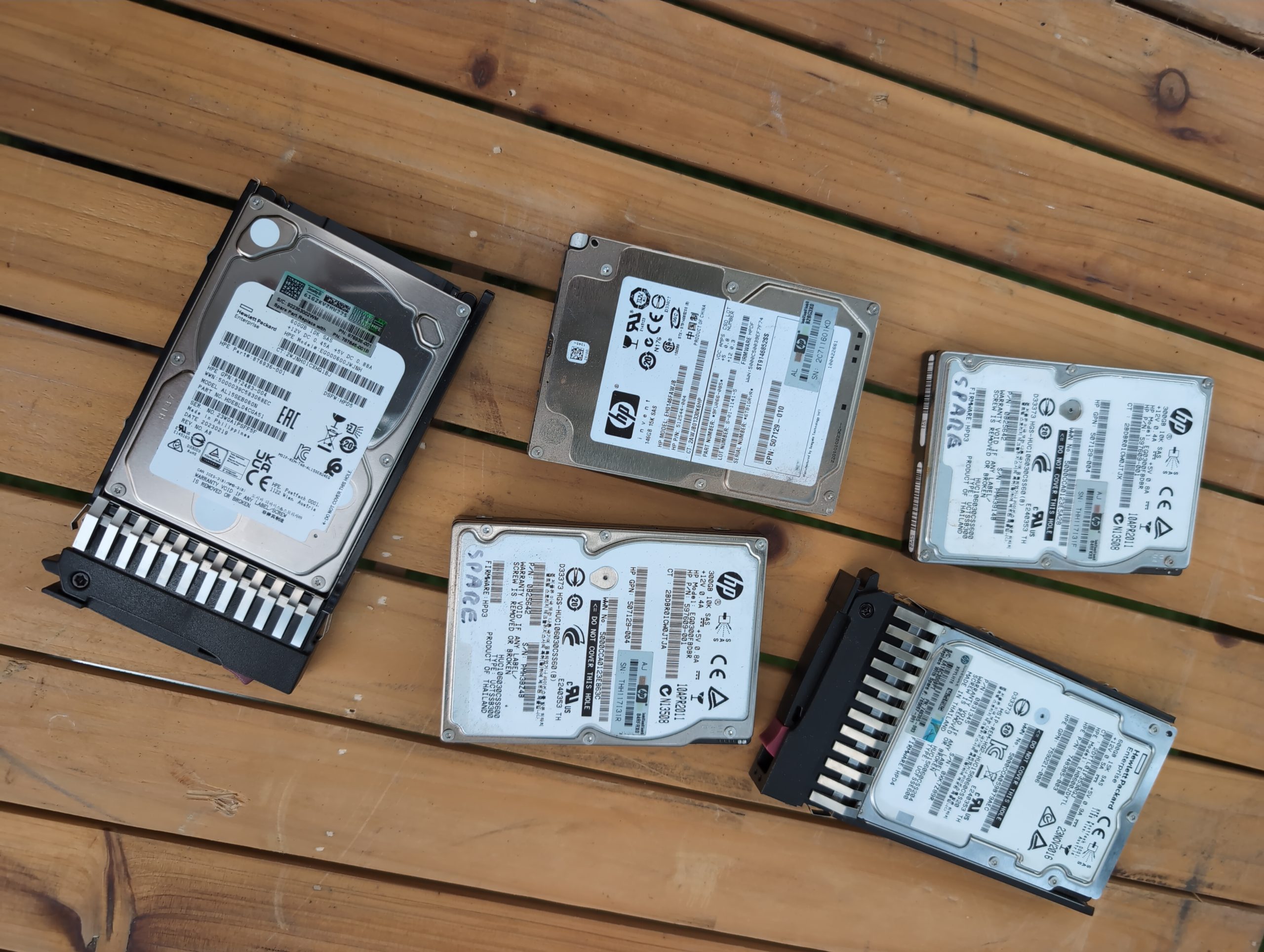

Reserve schijven SAN

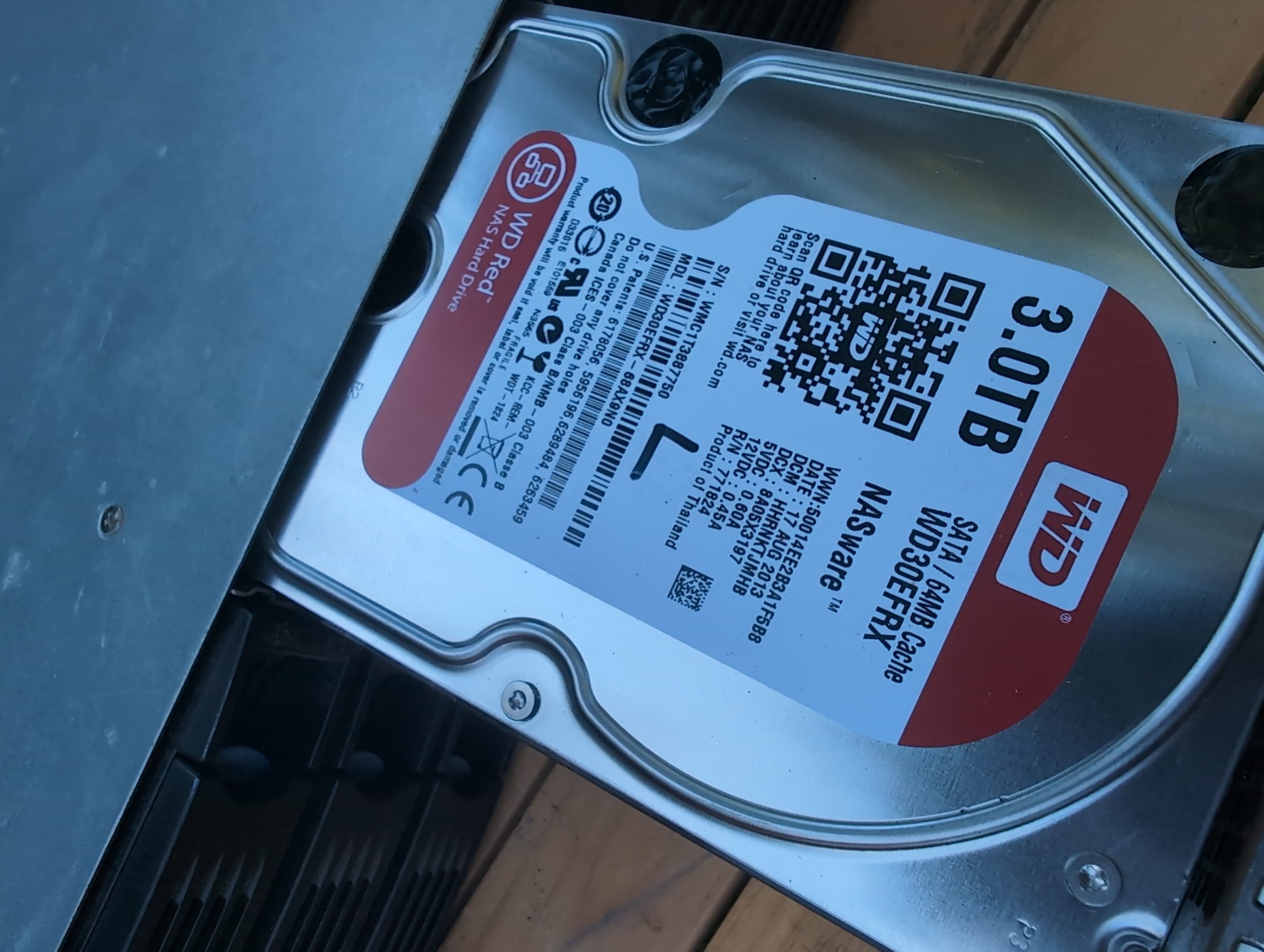

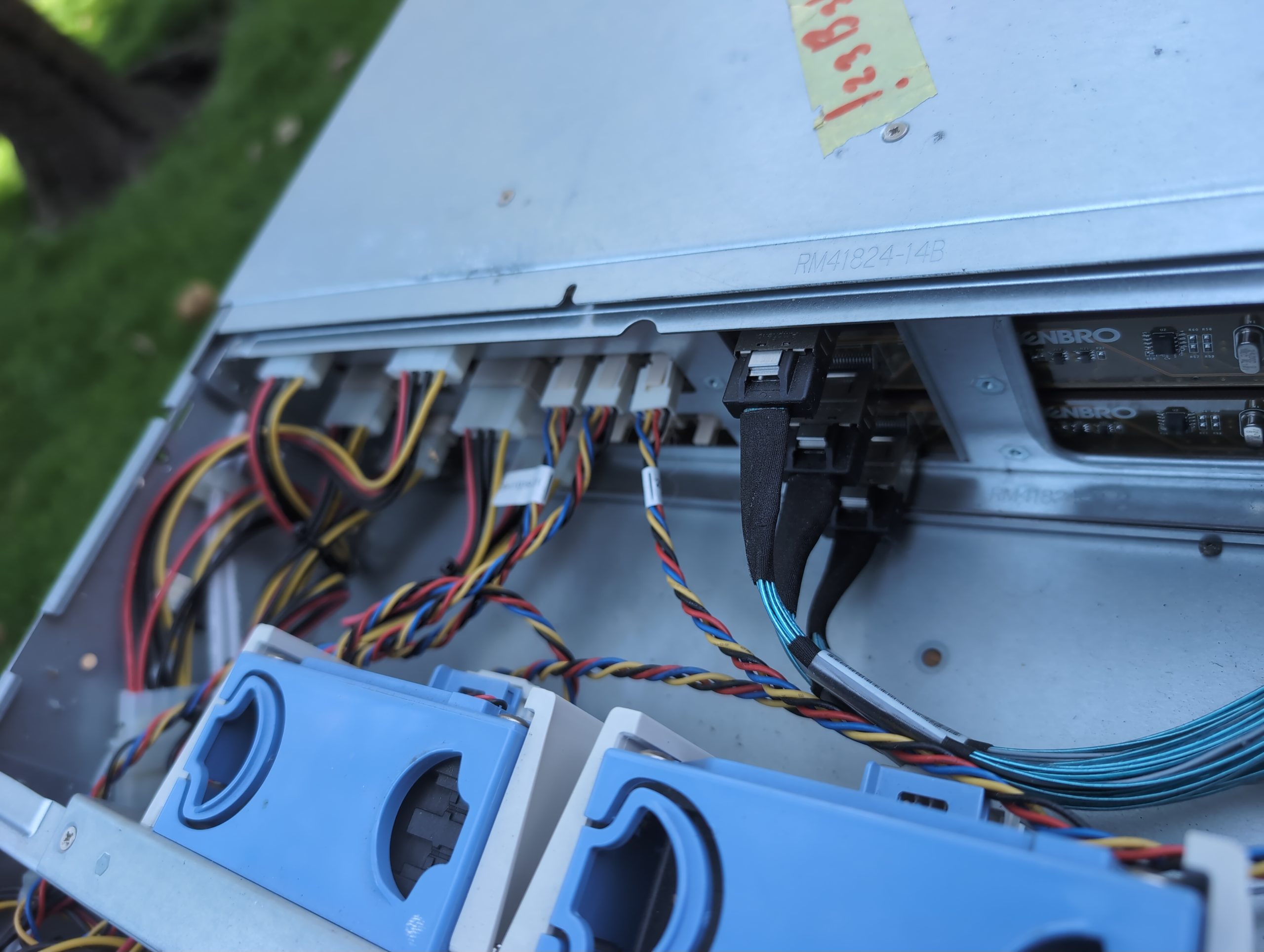

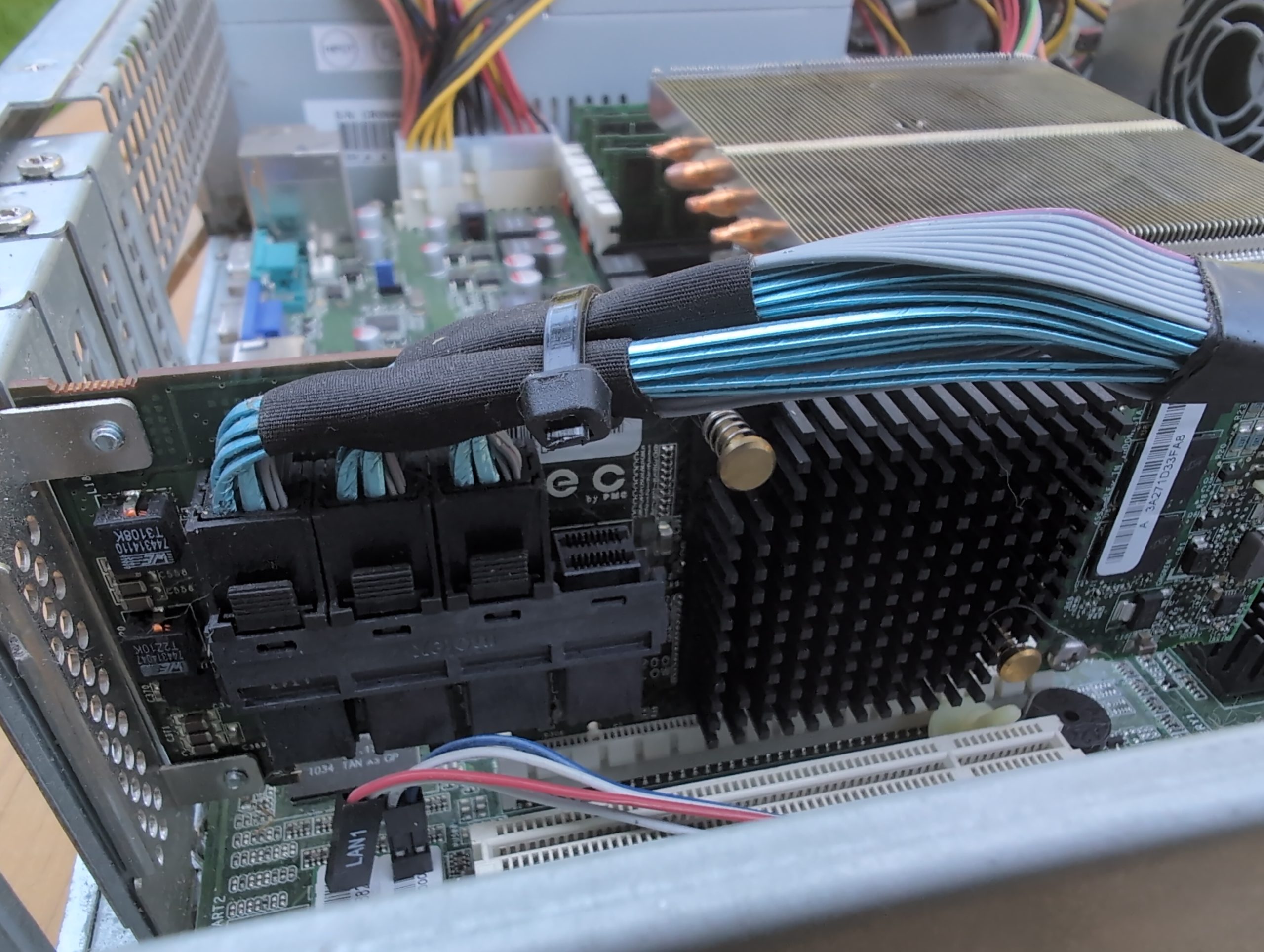

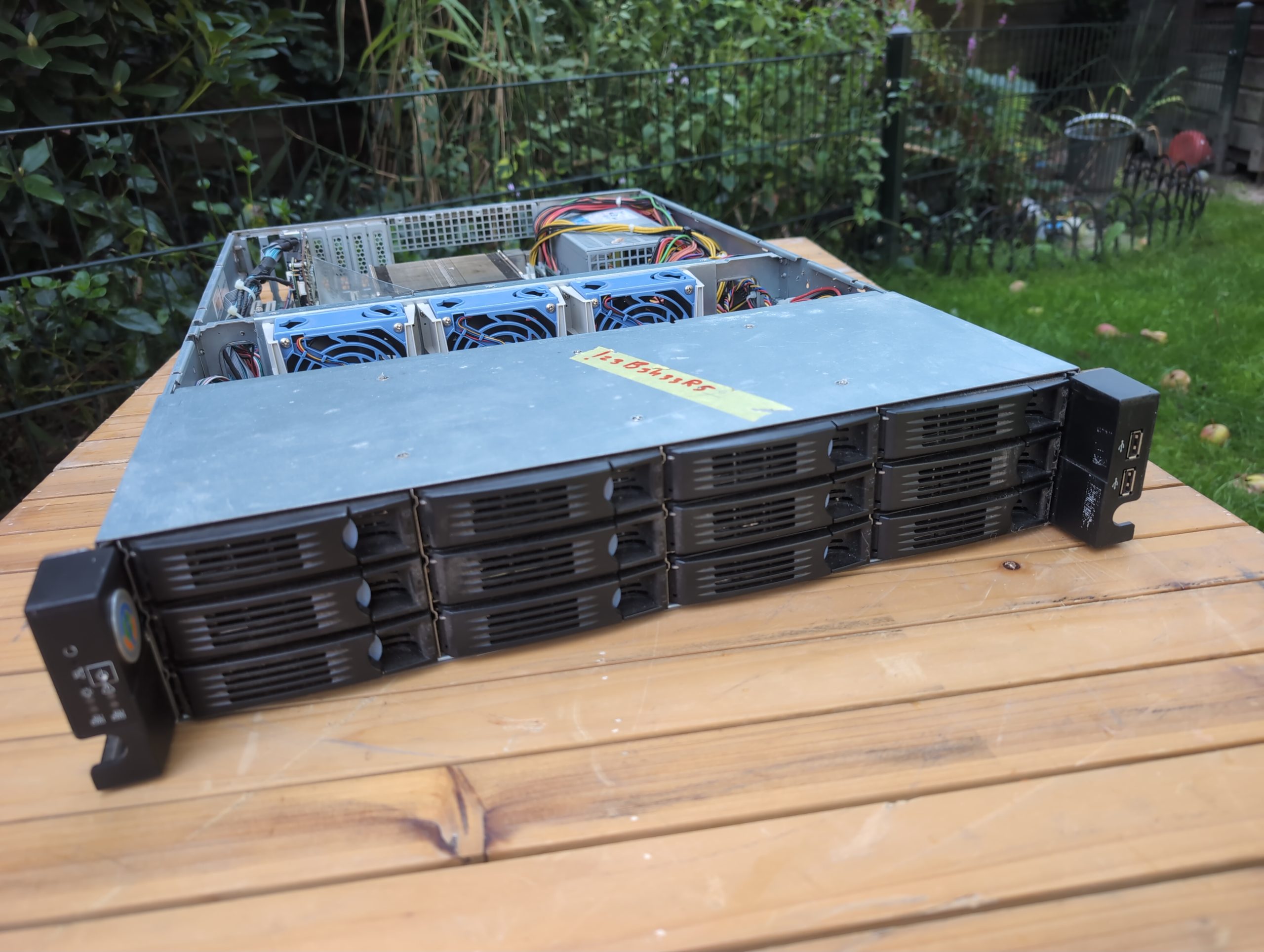

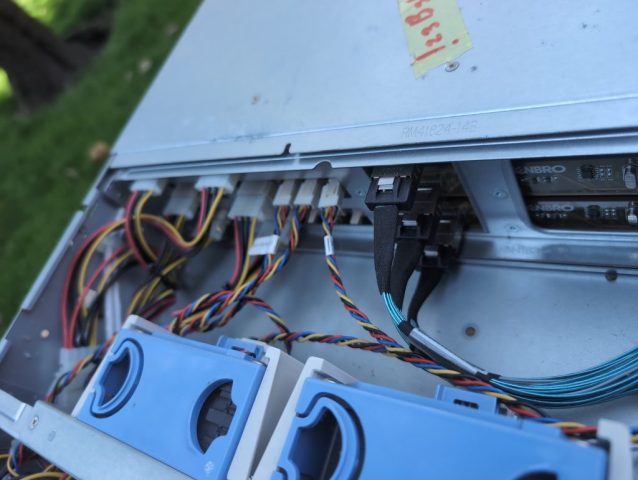

22 – Zelfbouw Storage (NAS)

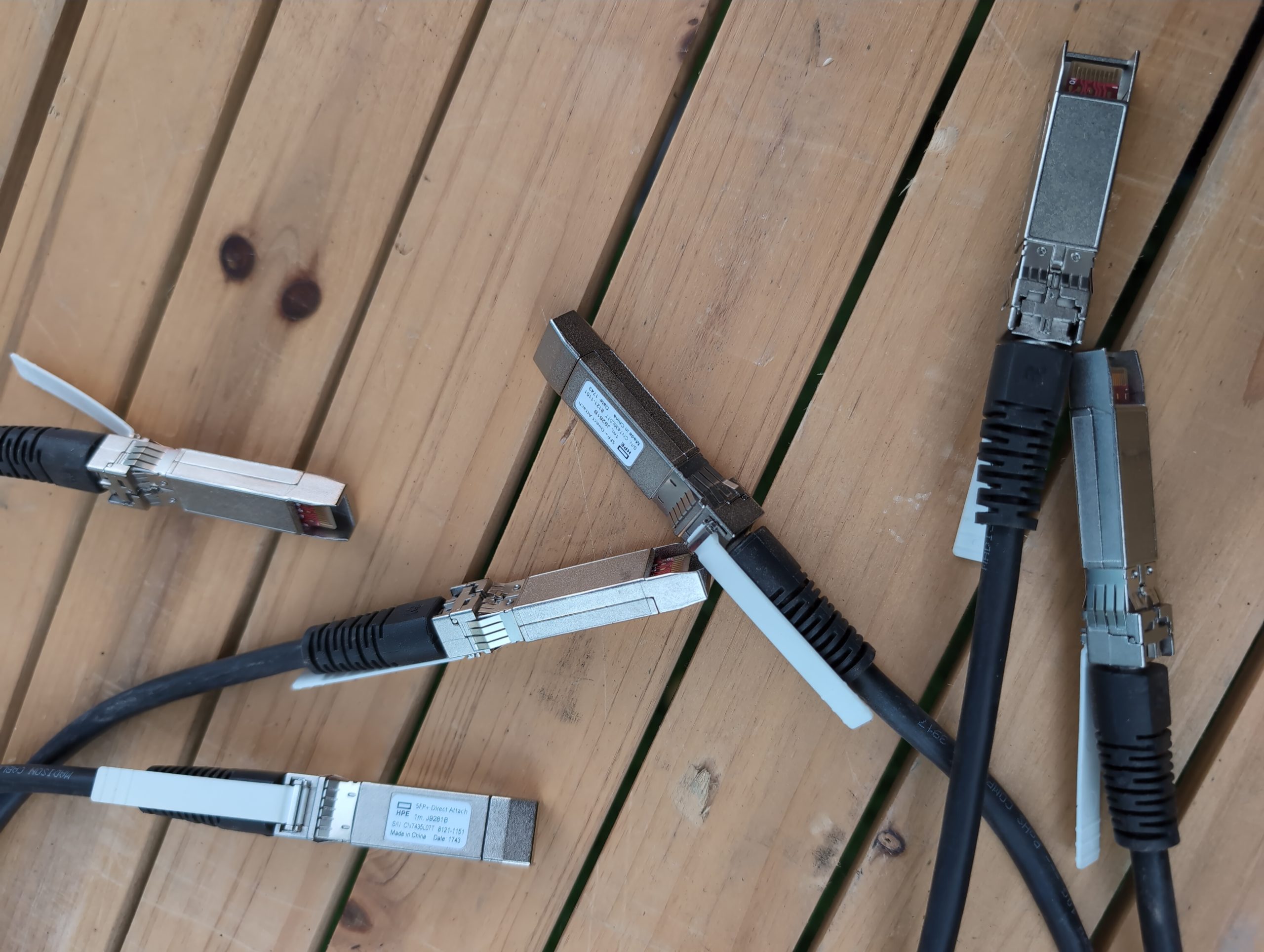

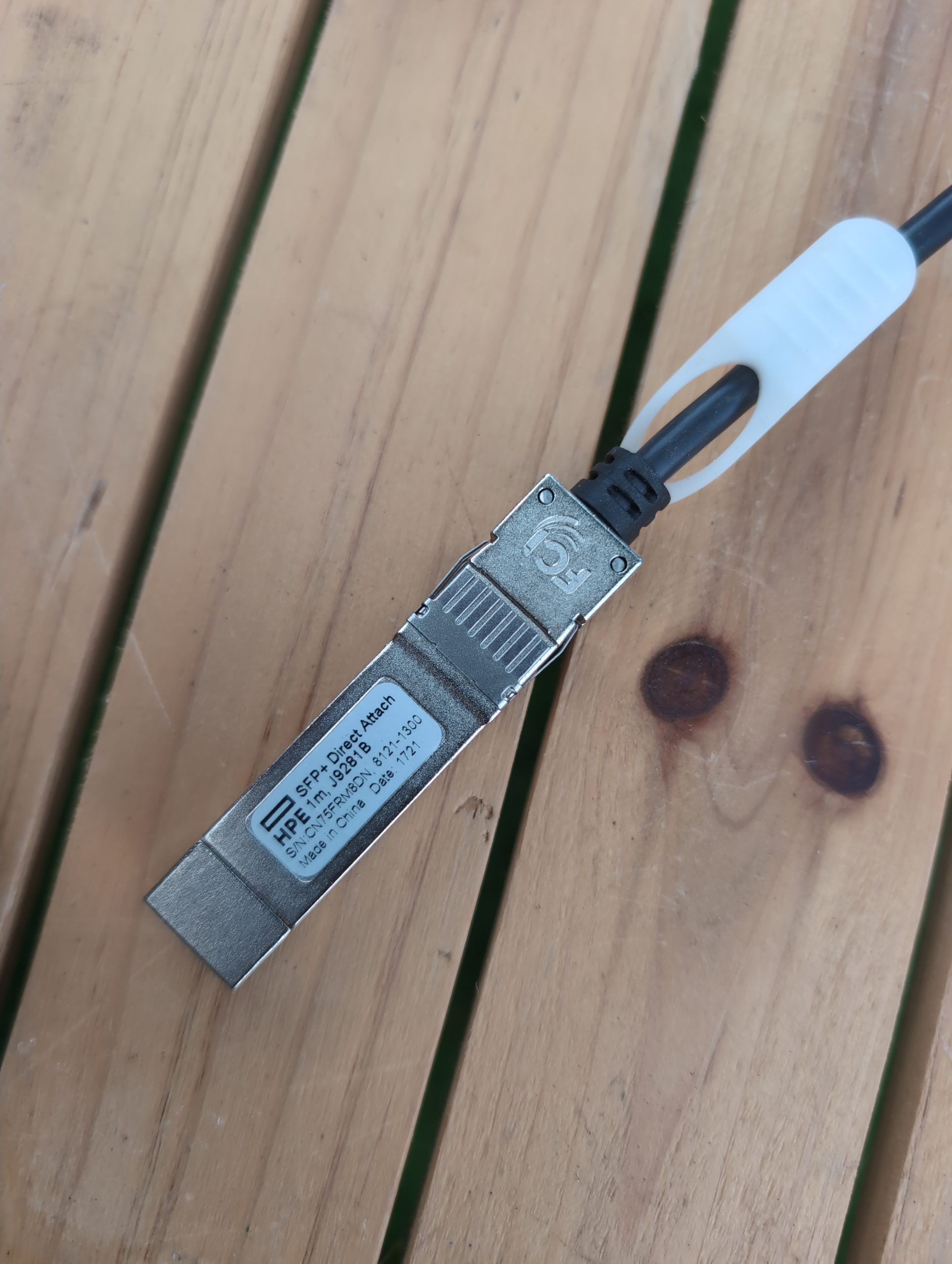

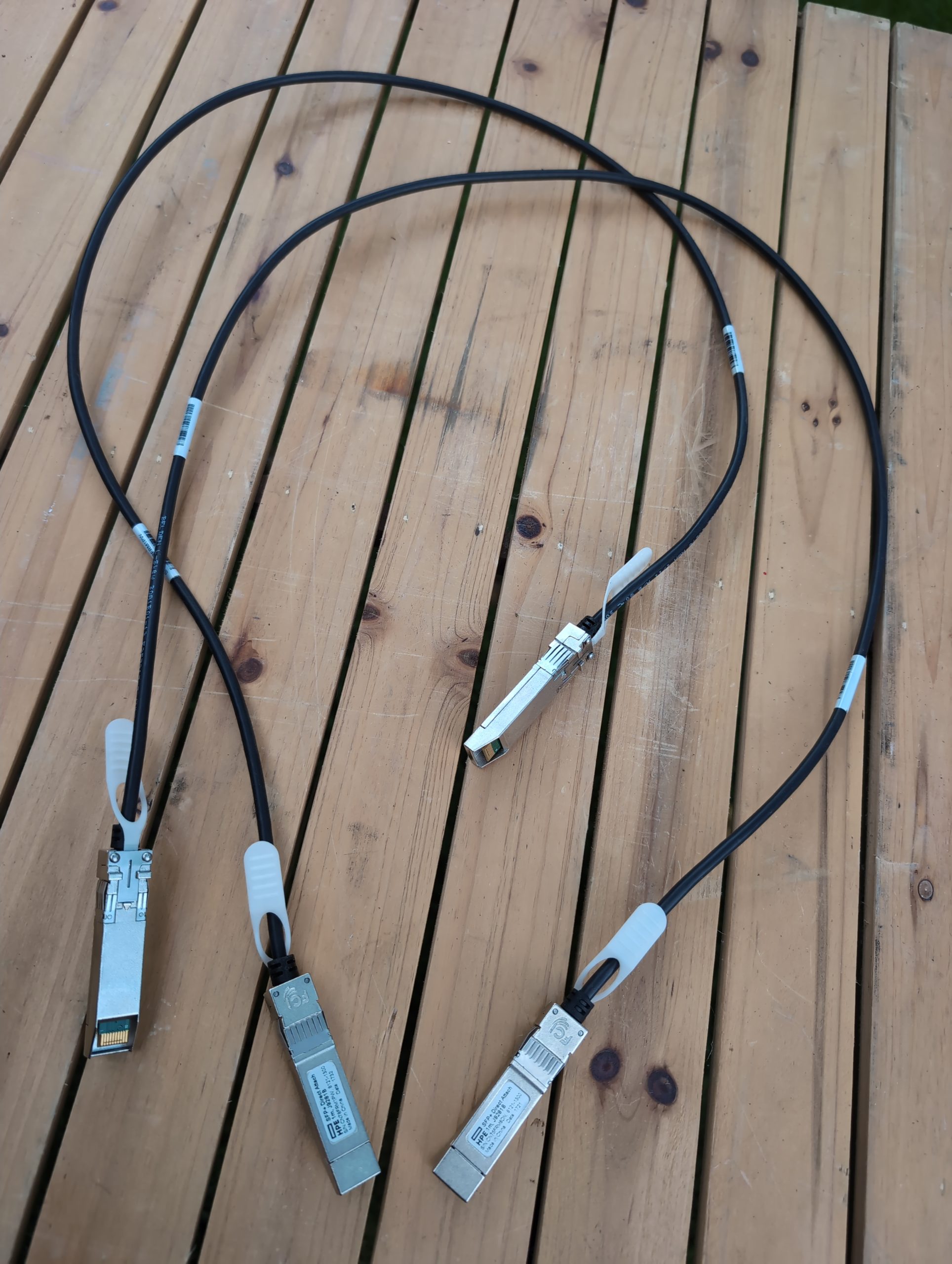

SFP kabels

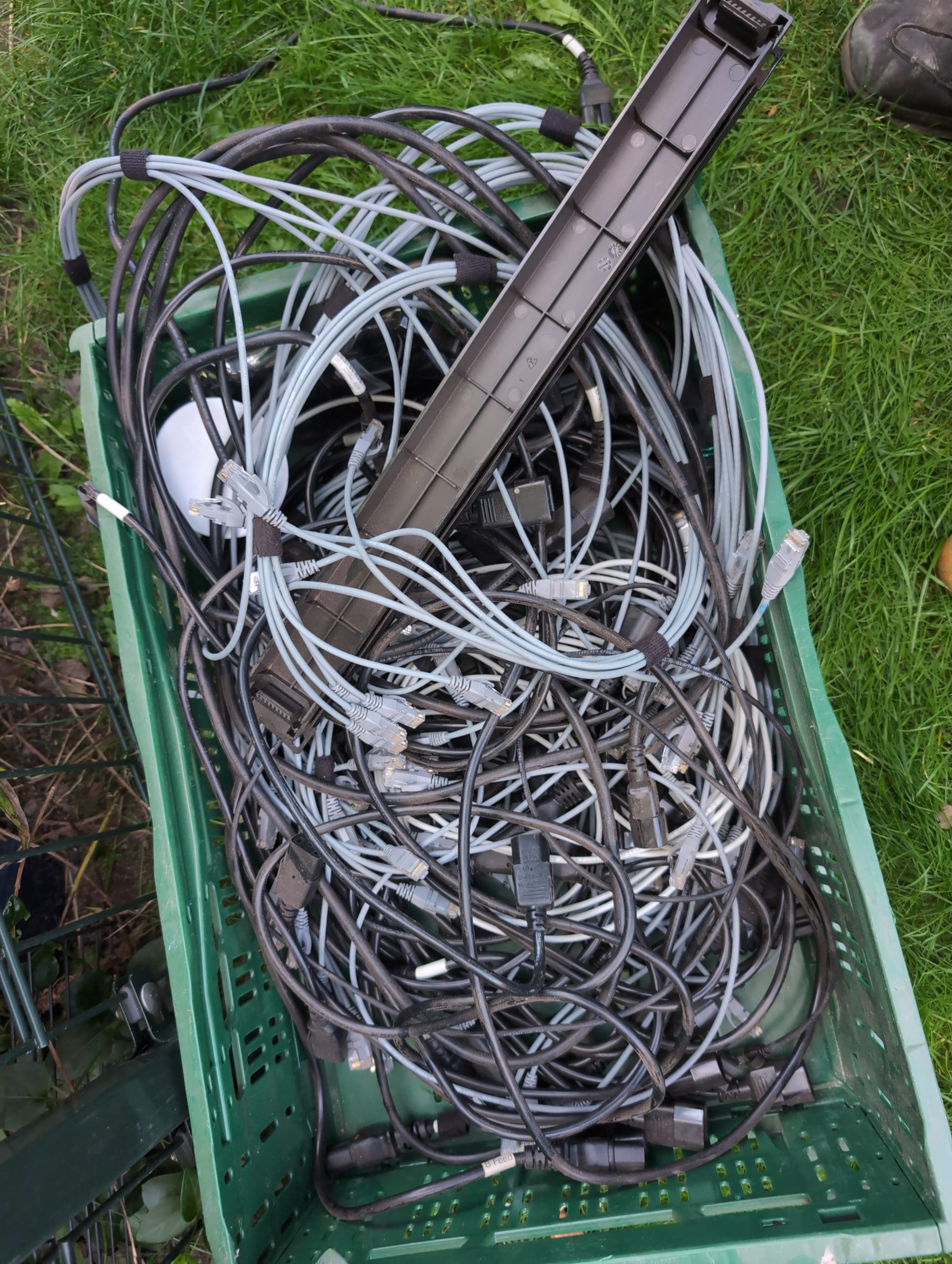

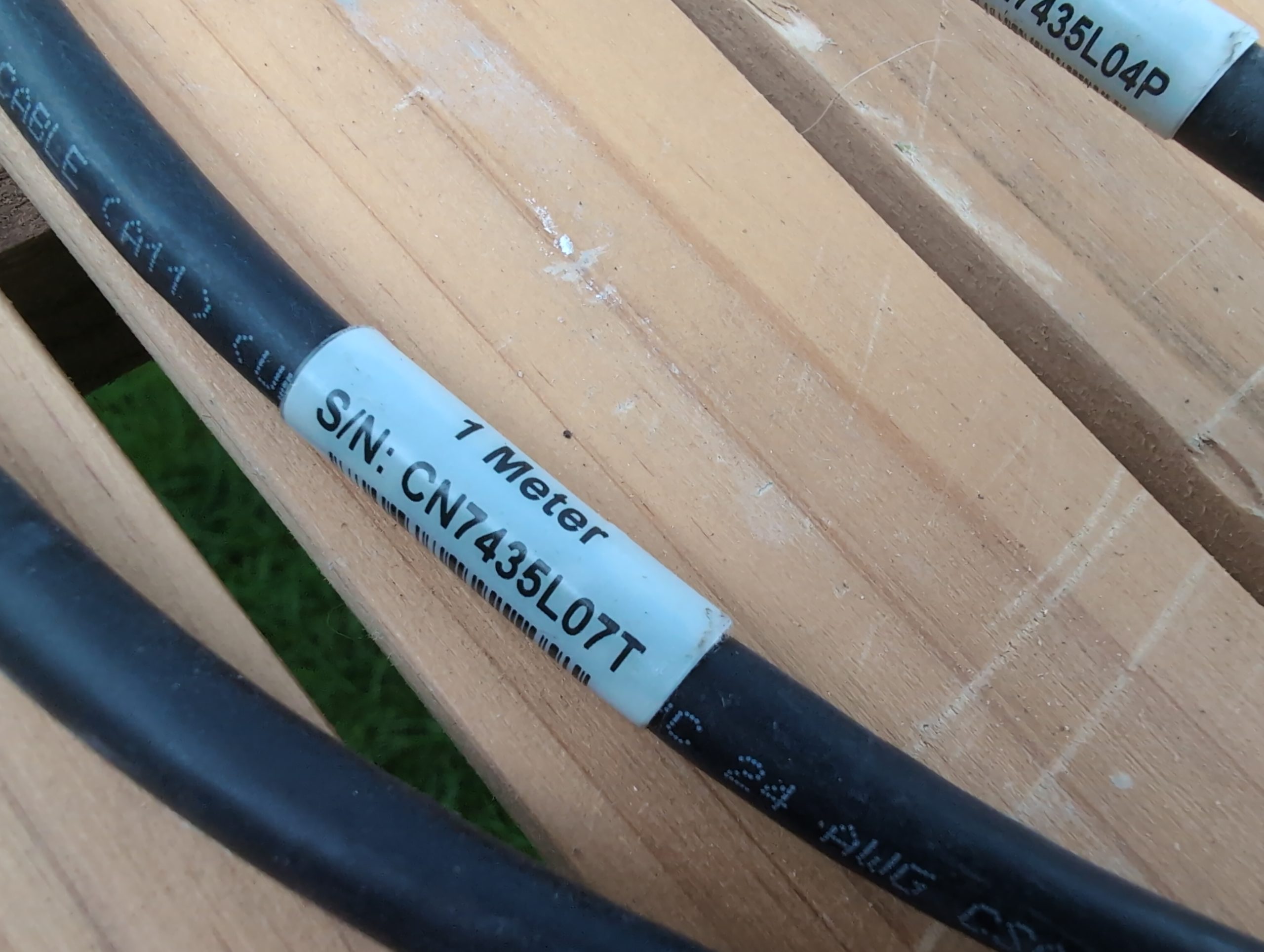

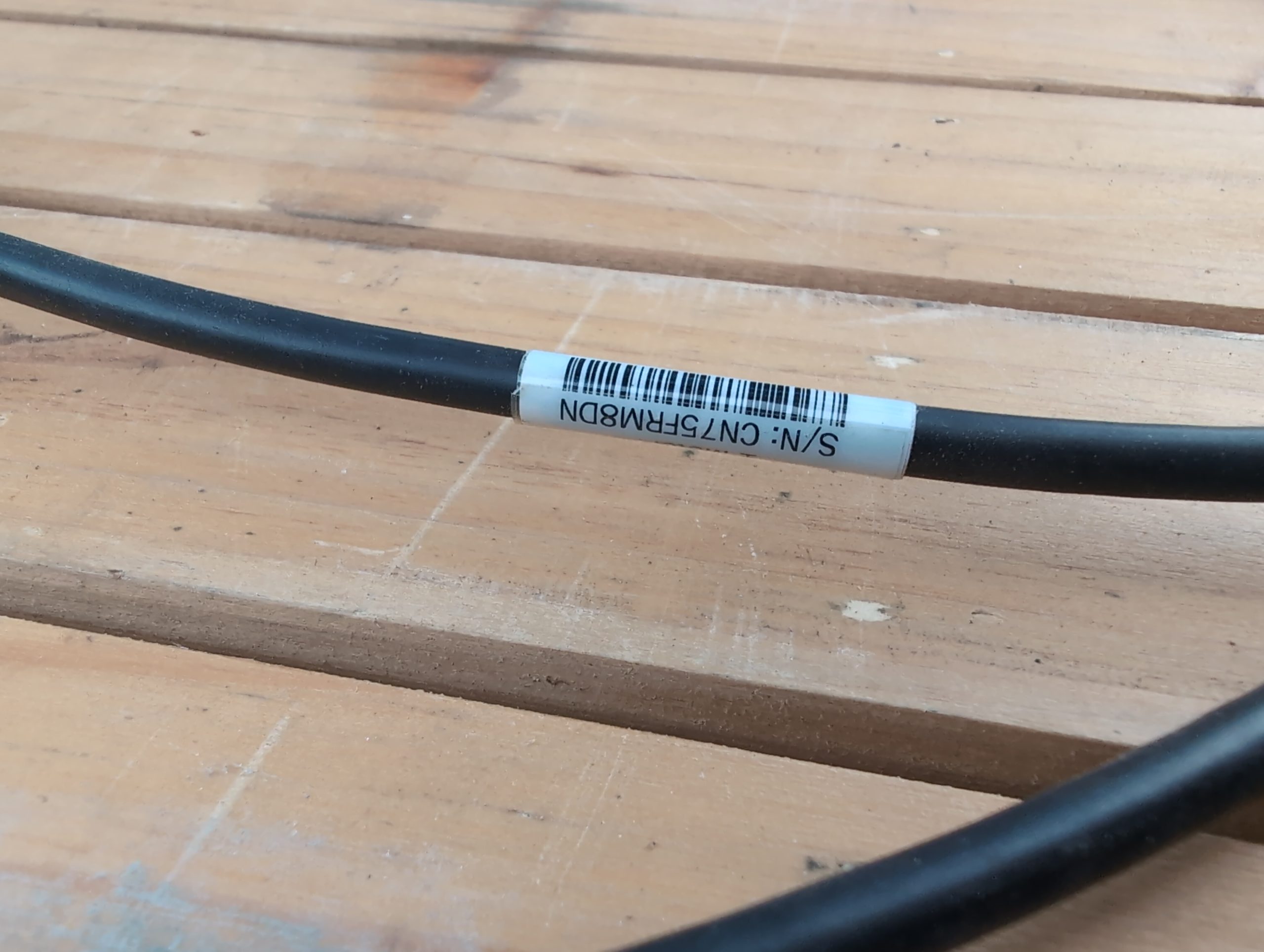

Aansluitkabels
